Package mechanical data
LED7707
46/48
Table 11.
VFQFPN-24 4 mm x 4 mm mechanical data
Dim.
mm
Min
Typ
Max
A
0.80
0.90
1.00
A1
0.00
0.02
0.05
A3
0.20
b
0.18
0.25
0.30
D
3.85
4.00
4.15
D2
2.40
2.50
2.60
E
3.85
4.00
4.15
E2
2.40
2.50
2.60
e0.50
L
0.30
0.40
0.50
ddd
0.08

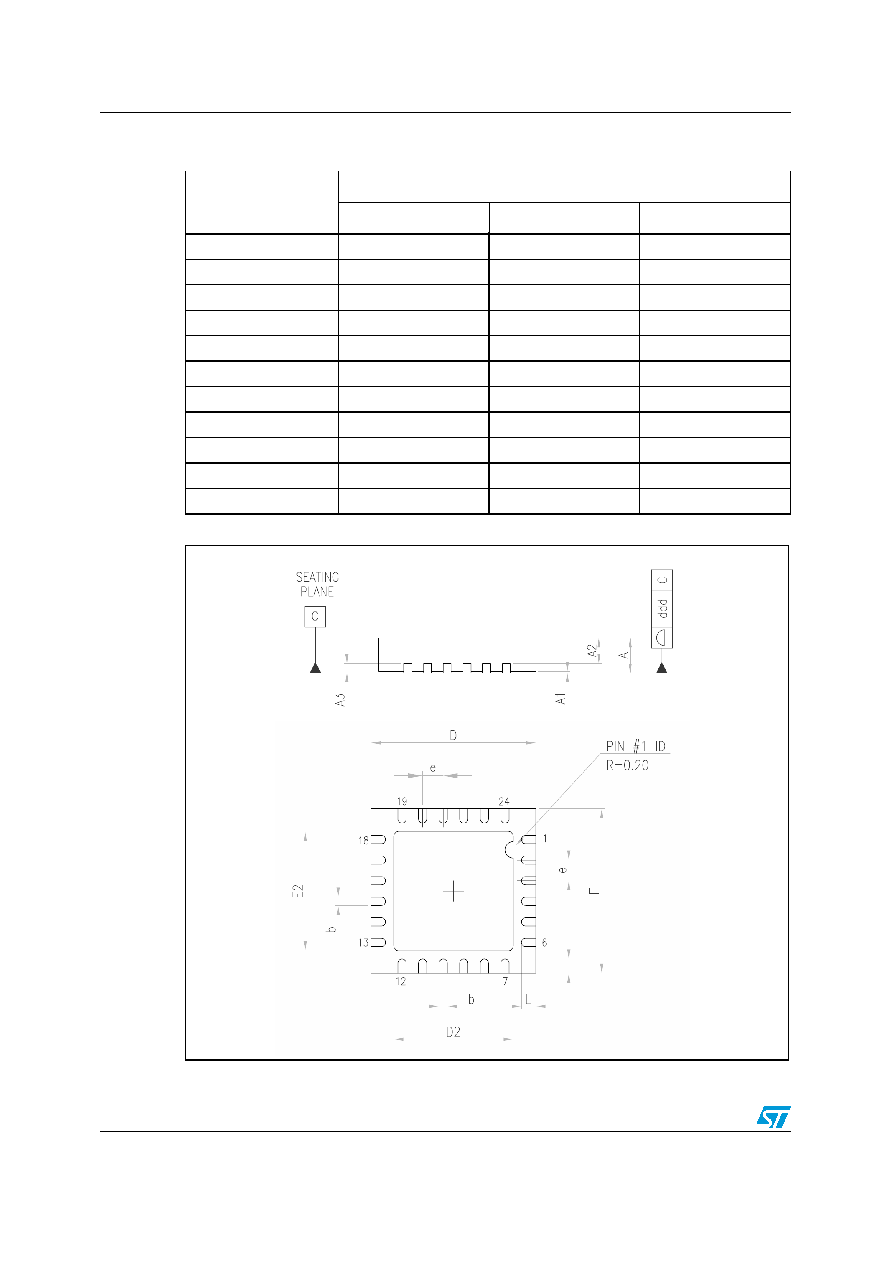

Figure 33. Package dimensions
