LED7707
Operation description
25/48
low (point “2”). Note that, once a new dimming cycle starts (point “3”), the device waits the
masking time (approximately 100
μs) and then sets the FAULT pin low and turns off.

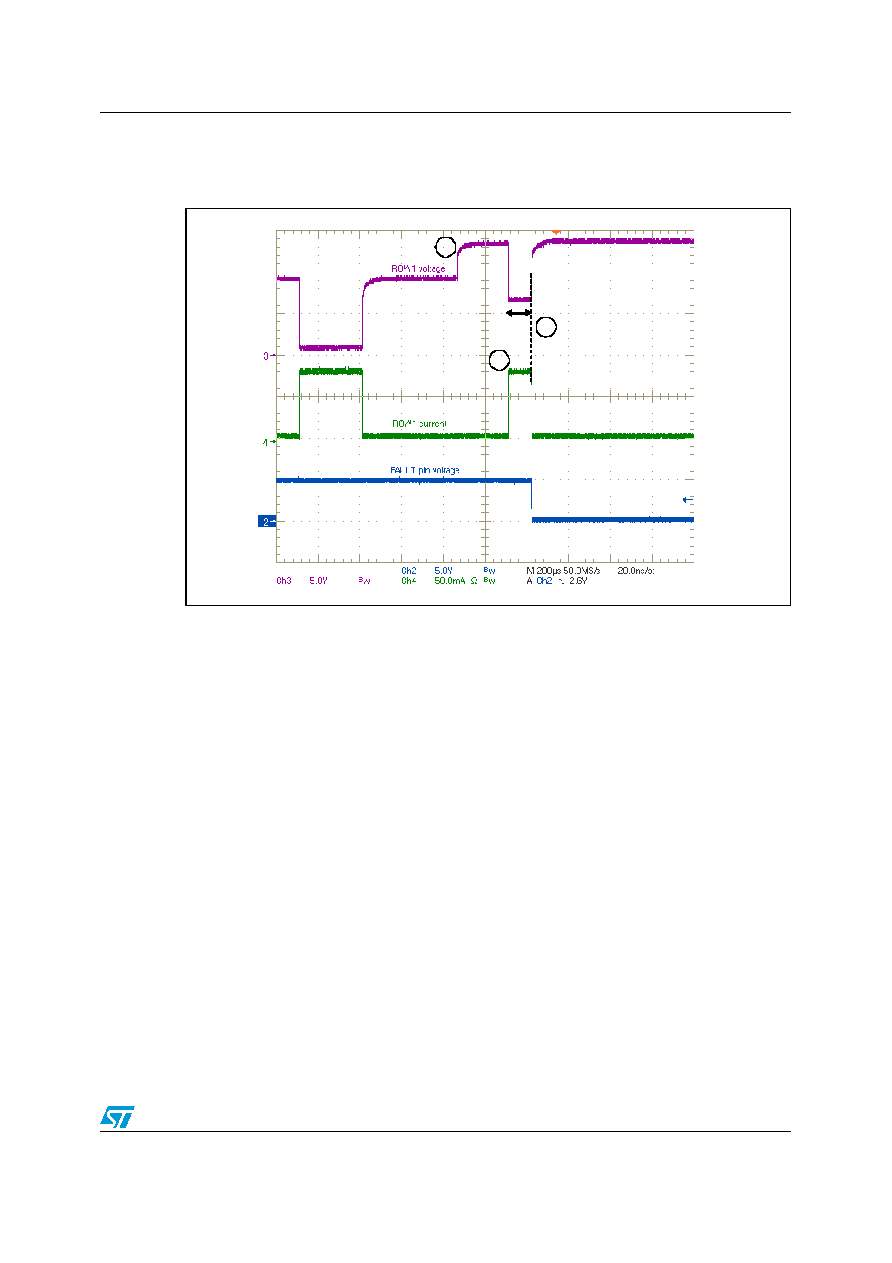

Figure 17.
Shorted LED detection (MODE to GND)

1
2
masking time
3
11
22
masking time
33
