Section 10 16-Bit Timer Pulse Unit (TPU)
Rev.1.00 Jun. 07, 2006 Page 566 of 1102
REJ09B0294-0100
10.9
Operation Timing
10.9.1
Input/Output Timing
(1) TCNT Count Timing

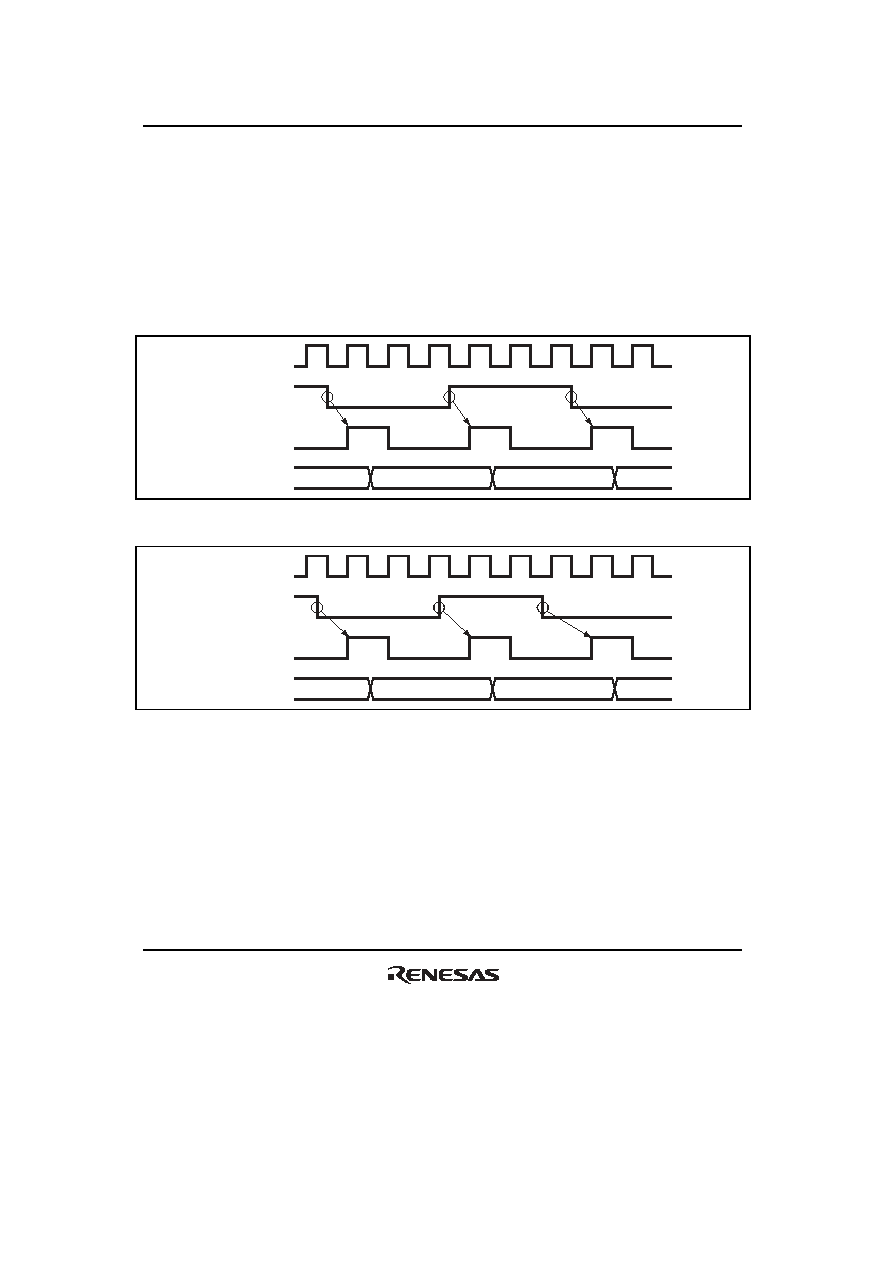

Figure 10.30 shows TCNT count timing in internal clock operation, and figure 10.31 shows TCNT
count timing in external clock operation.
P
φ
Internal clock
TCNT input clock
TCNT
Falling edge
Rising edge
N
− 1N + 1N + 2
N
Falling edge
Figure 10.30 Count Timing in Internal Clock Operation
P
φ
External clock
TCNT input
clock
TCNT
Falling edge
Rising edge
N
− 1N + 1N + 2
N
Falling edge
Figure 10.31 Count Timing in External Clock Operation
