H8SX/1663 데이터시트(PDF) 622 Page - Renesas Technology Corp |
|
|
|||||||||||||||||||||||||||||
H8SX/1663 데이터시트(HTML) 622 Page - Renesas Technology Corp |
|
|

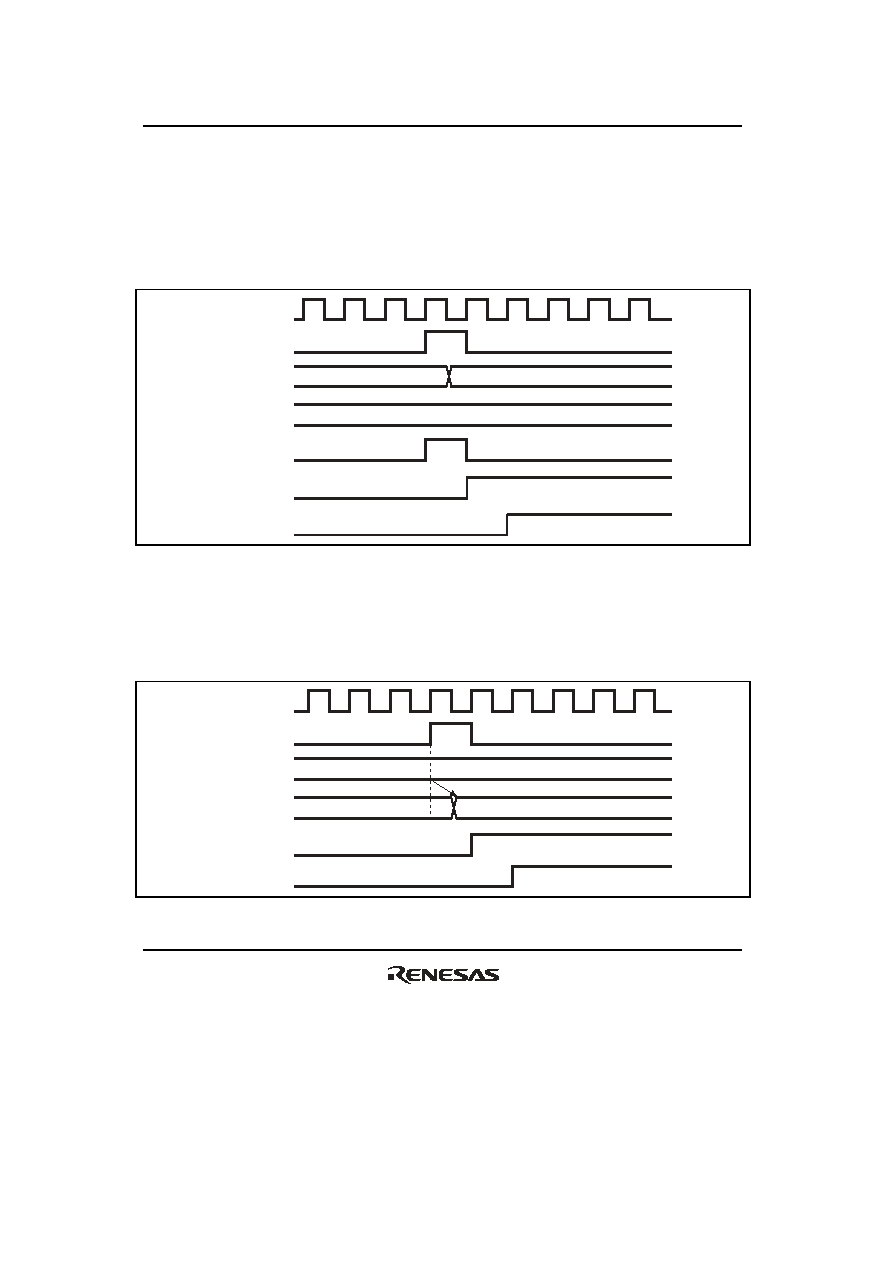

622 / 1158 page  Section 10 16-Bit Timer Pulse Unit (TPU) Rev.1.00 Jun. 07, 2006 Page 570 of 1102 REJ09B0294-0100 10.9.2 Interrupt Signal Timing (1) TGF Flag Setting Timing in Case of Compare Match Figure 10.38 shows the timing for setting of the TGF flag in TSR by compare match occurrence, and the TGI interrupt request signal timing. TGR Compare match signal P φ TCNT input clock TCNT N + 1 N N TGF flag TGI interrupt Figure 10.38 TGI Interrupt Timing (Compare Match) (2) TGF Flag Setting Timing in Case of Input Capture Figure 10.39 shows the timing for setting of the TGF flag in TSR by input capture occurrence, and the TGI interrupt request signal timing. TGR P φ TCNT N Input capture signal TGF flag TGI interrupt N Figure 10.39 TGI Interrupt Timing (Input Capture) |
|
