Section 10 16-Bit Timer Pulse Unit (TPU)
Rev.1.00 Jun. 07, 2006 Page 569 of 1102
REJ09B0294-0100
(5) Buffer Operation Timing

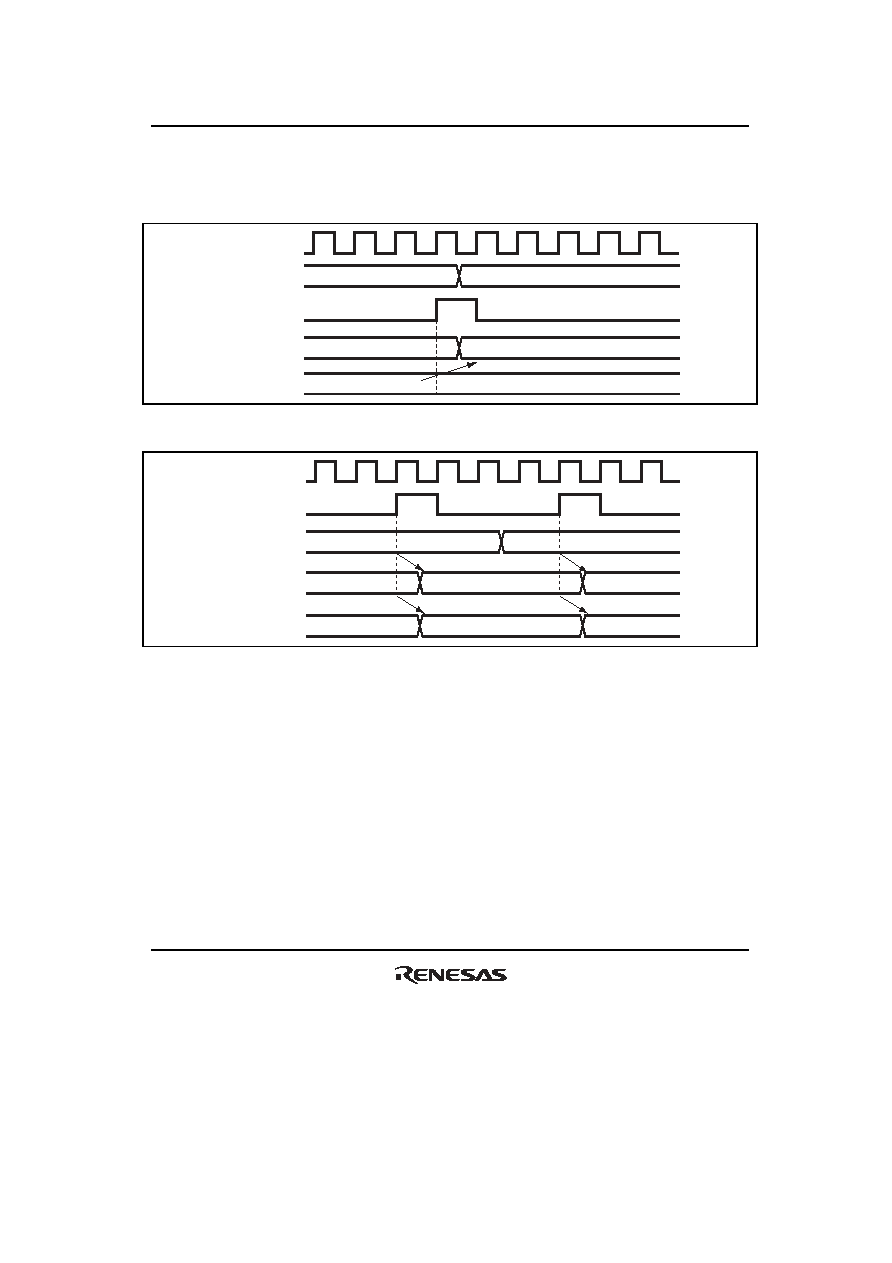

Figures 10.36 and 10.37 show the timings in buffer operation.
P
φ
n
+ 1
n
TGRA, TGRB
TGRC, TGRD
N
N
Compare match
signal
TCNT
n
Figure 10.36 Buffer Operation Timing (Compare Match)
P
φ
TCNT
N
+ 1
N
Input capture
signal
TGRA, TGRB
TGRC, TGRD
n
N
+ 1
N
nN
Figure 10.37 Buffer Operation Timing (Input Capture)
