Section 10 16-Bit Timer Pulse Unit (TPU)

Rev.1.00 Jun. 07, 2006 Page 571 of 1102

REJ09B0294-0100

(3) TCFV Flag/TCFU Flag Setting Timing

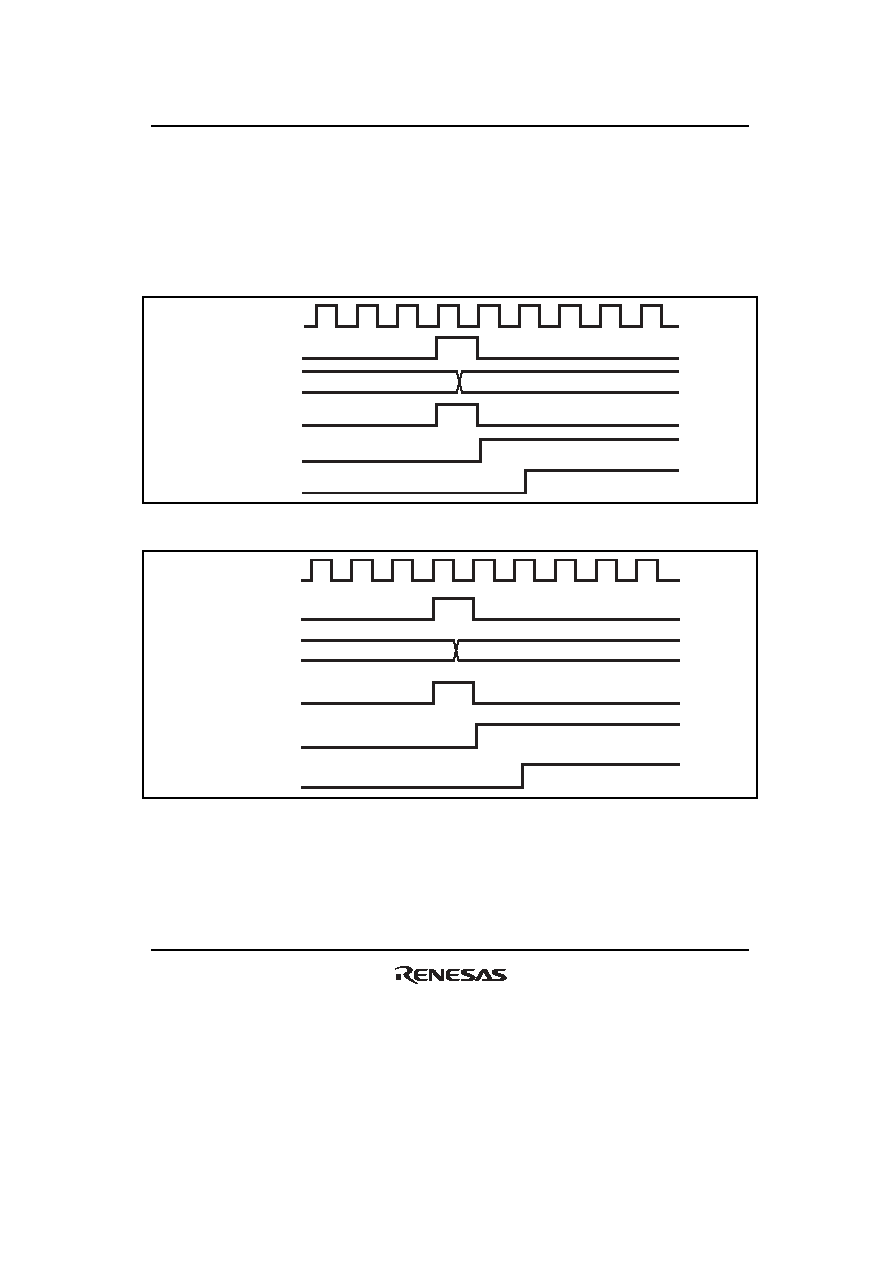

Figure 10.40 shows the timing for setting of the TCFV flag in TSR by overflow occurrence, and

the TCIV interrupt request signal timing.

Figure 10.41 shows the timing for setting of the TCFU flag in TSR by underflow occurrence, and

the TCIU interrupt request signal timing.

H'FFFF

TCNT input

clock

TCNT

(overflow)

Overflow signal

TCFV flag

TCIV interrupt

H'0000

Figure 10.40 TCIV Interrupt Setting Timing

H'0000

TCNT input

clock

TCNT

(underflow)

Underflow signal

TCFU flag

TCIU interrupt

H'FFFF

Figure 10.41 TCIU Interrupt Setting Timing
