Section 11 Programmable Pulse Generator (PPG)
Rev.1.00 Jun. 07, 2006 Page 597 of 1102
REJ09B0294-0100
11.4.4
Non-Overlapping Pulse Output
During non-overlapping operation, transfer from NDR to PODR is performed as follows:
• At compare match A, the NDR bits are always transferred to PODR.
• At compare match B, the NDR bits are transferred only if their value is 0. The NDR bits are
not transferred if their value is 1.

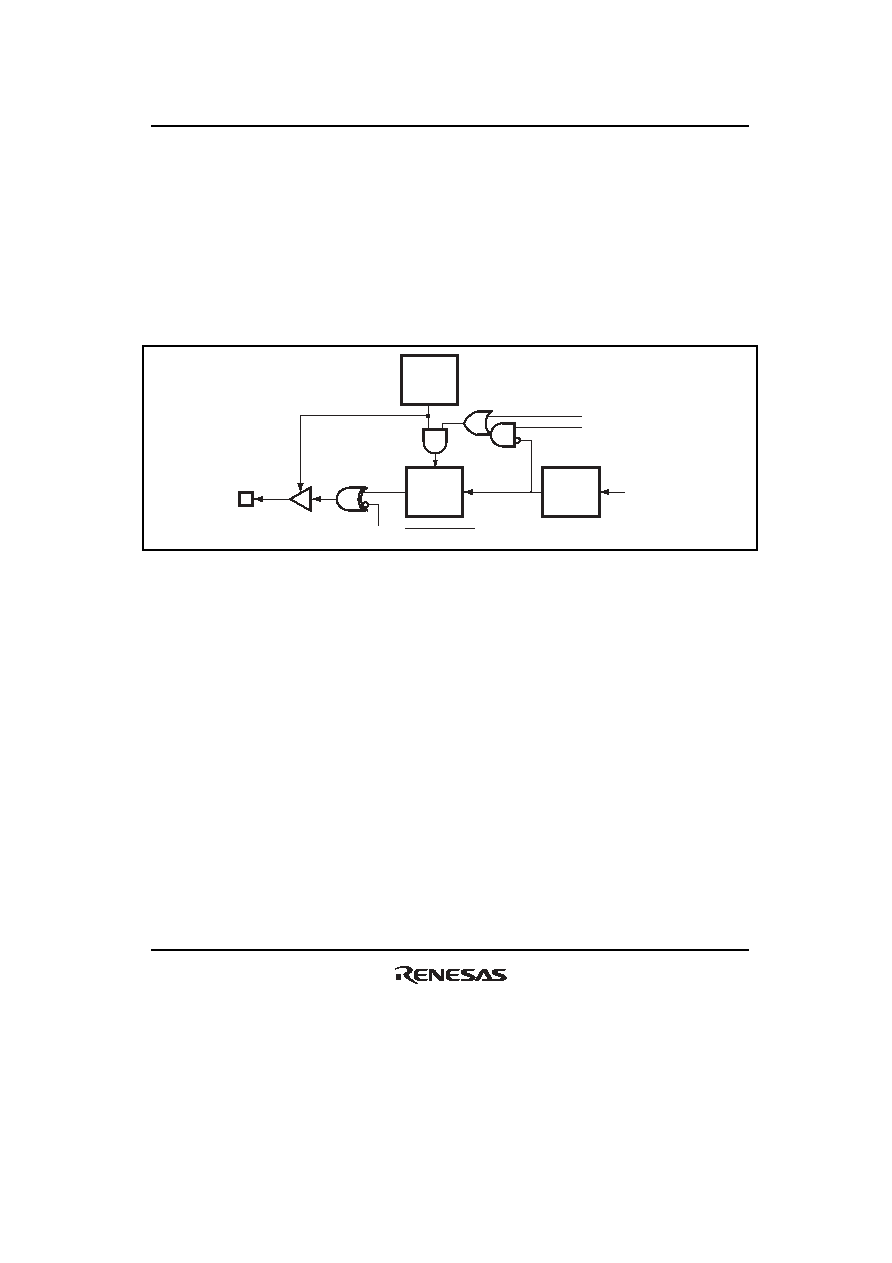

Figure 11.6 illustrates the non-overlapping pulse output operation.
Compare match A
Compare match B
Pulse
output
pin
Internal data bus
Normal output/inverted output
C
PODR
QD
NDER
Q
NDR
QD
Figure 11.6 Non-Overlapping Pulse Output
Therefore, 0 data can be transferred ahead of 1 data by making compare match B occur before
compare match A.
The NDR contents should not be altered during the interval from compare match B to compare
match A (the non-overlapping margin).
This can be accomplished by having the TGIA interrupt handling routine write the next data in
NDR, or by having the TGIA interrupt activate the DTC or DMAC. Note, however, that the next
data must be written before the next compare match B occurs.
