Section 11 Programmable Pulse Generator (PPG)
Rev.1.00 Jun. 07, 2006 Page 598 of 1102
REJ09B0294-0100

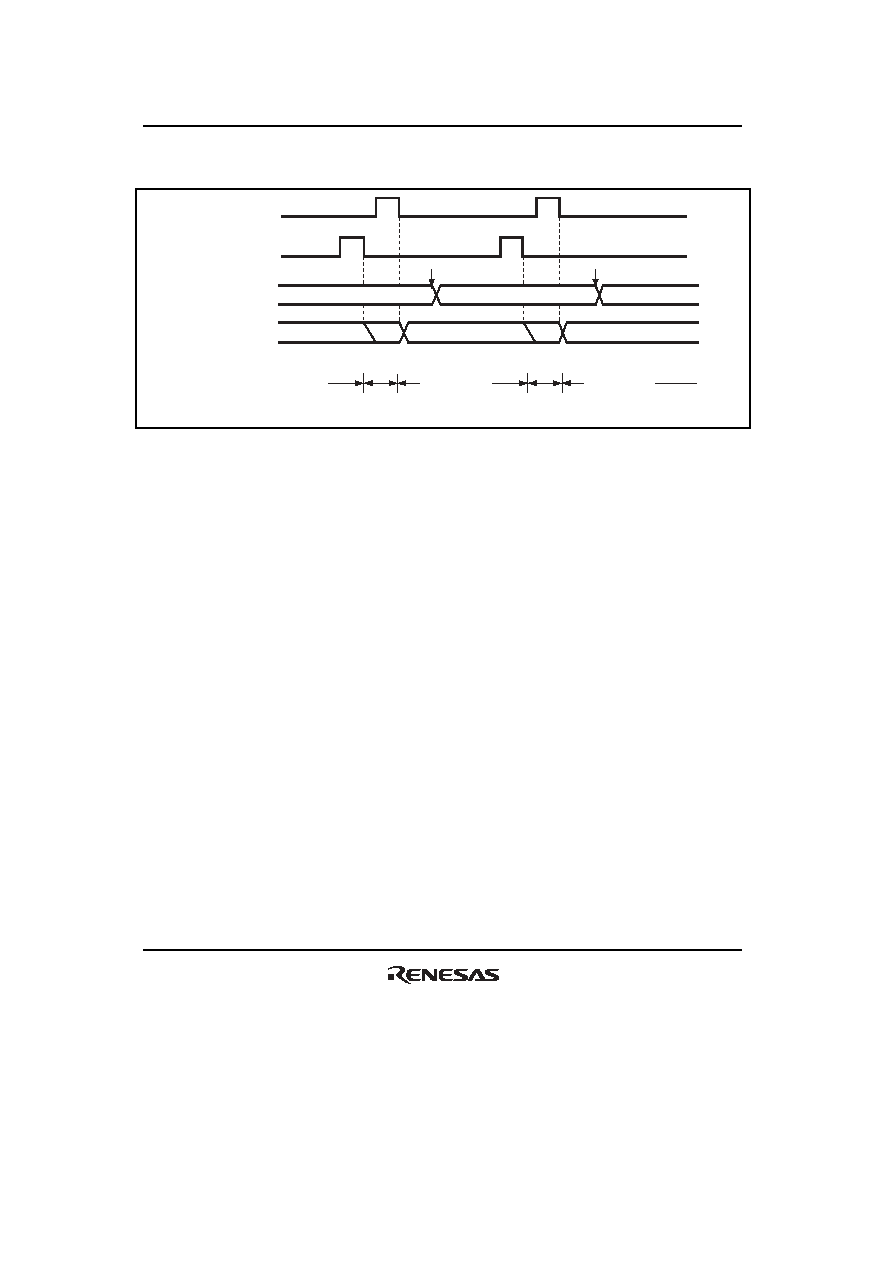

Figure 11.7 shows the timing of this operation.
0/1 output
0 output
0/1 output
0 output
Do not write
to NDR here
Write to NDR
here
Compare match A
Compare match B
NDR
PODR
Do not write
to NDR here
Write to NDR
here
Write to NDR
Write to NDR
Figure 11.7 Non-Overlapping Operation and NDR Write Timing
