Section 9 Bus Controller (BSC)
Rev. 2.00 Sep. 24, 2008 Page 304 of 1468
REJ09B0412-0200
(1)
When DDS = 1 or EDDS = 1
A fast-page access is performed regardless of the bus master, only according to the address. The
DACK and EDACK signals are asserted at the start of the Tc1 cycle.

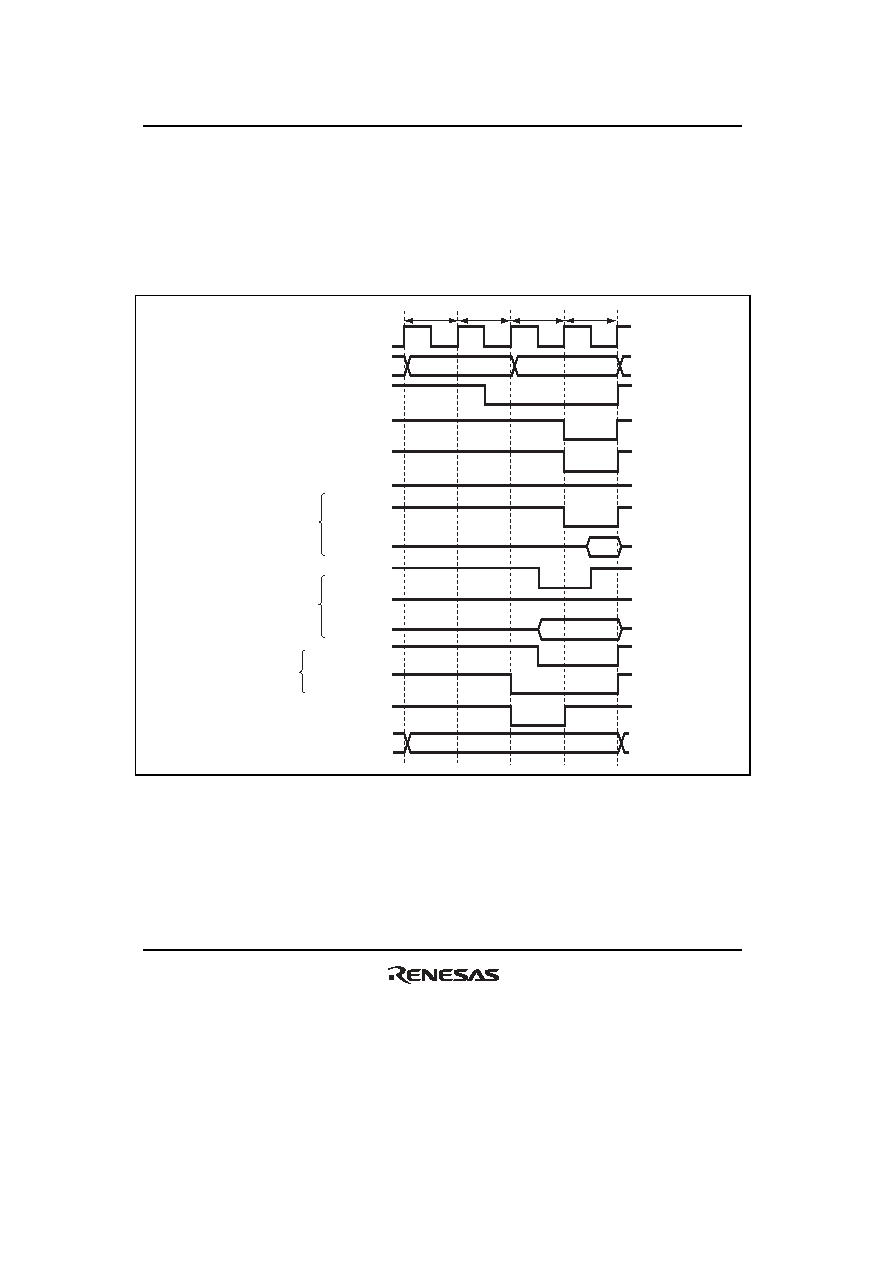

Figure 9.58 shows the output timing example of the
DACK and EDACK signals when DDS = 1 or
EDDS = 1.
T
p
T
r
T
c1
T
c2
Address bus
B
φ
RAS
LUCAS
LLCAS
WE
OE (RD)
WE
OE (RD)
Data bus
High
Row address
Column address
High
Read
Write
Data bus
DACK or
EDACK
BS
RD/
WR
DKC, EDKC = 1
DKC, EDKC = 0
Figure 9.58 Output Timing Example of
DACK and EDACK when DDS = 1 or EDDS = 1
(RAST = 0, CAST = 0)
