Section 10 DMA Controller (DMAC)
Rev. 2.00 Sep. 24, 2008 Page 405 of 1468
REJ09B0412-0200
DMA cycle
DSAR
Address for external memory space
RD signal for external memory space
Data output by external memory
Address bus
B
φ
RD
WR
DACK
TEND
Data bus
DMA cycle
DDAR
Address for external memory space
WR signal for external memory space
B
φ
Address bus
Transfer from external memory to external device with
DACK
RD
WR
DACK
TEND
Data bus
Data output by external device with
DACK
Transfer from external device with
DACK to external memory
High
High

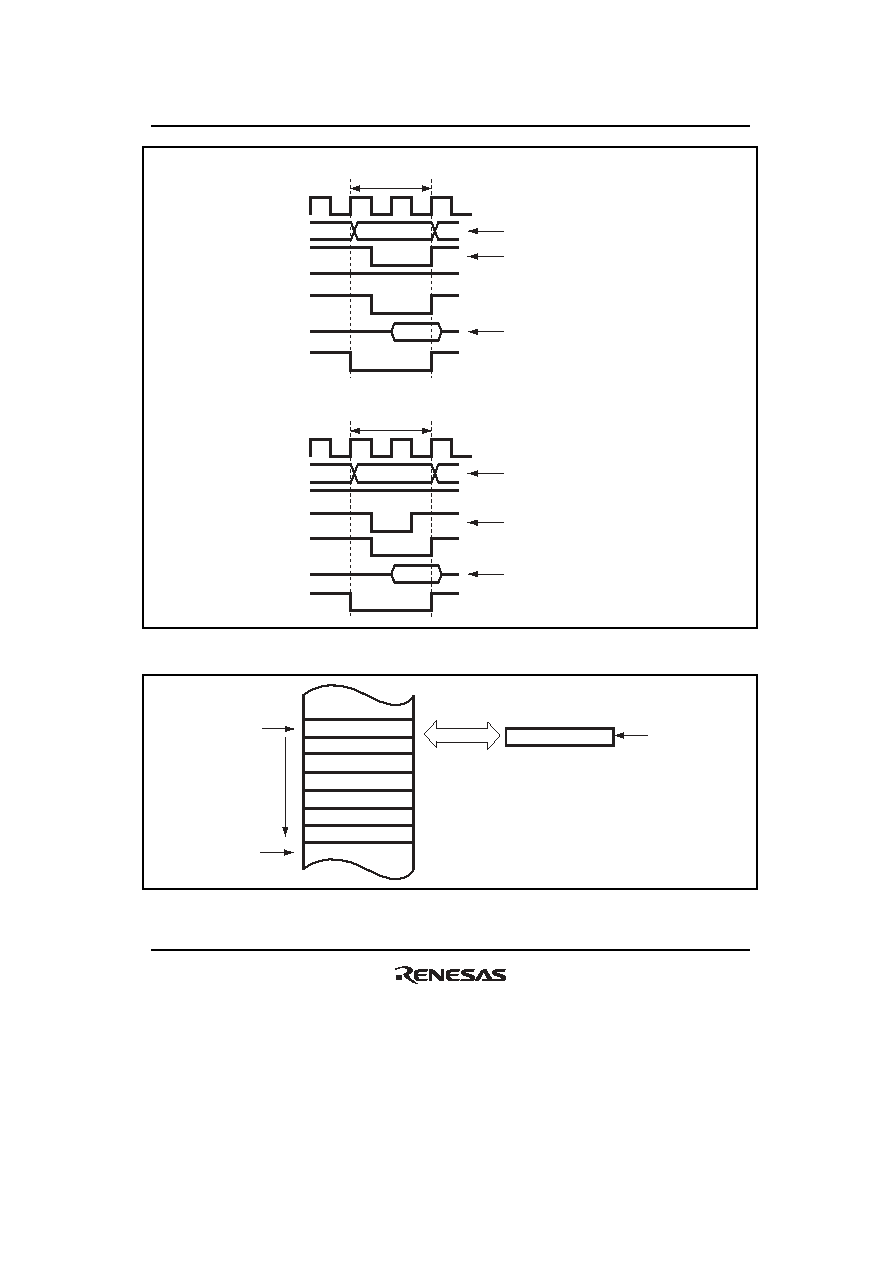

Figure 10.5 Example of Signal Timing in Single Address Mode
Transfer
Address T
Address B
DACK
Figure 10.6 Operations in Single Address Mode
