Section 14 16-Bit Timer Pulse Unit (TPU)

Rev. 2.00 Sep. 24, 2008 Page 764 of 1468

REJ09B0412-0200

(3)

TCFV Flag/TCFU Flag Setting Timing

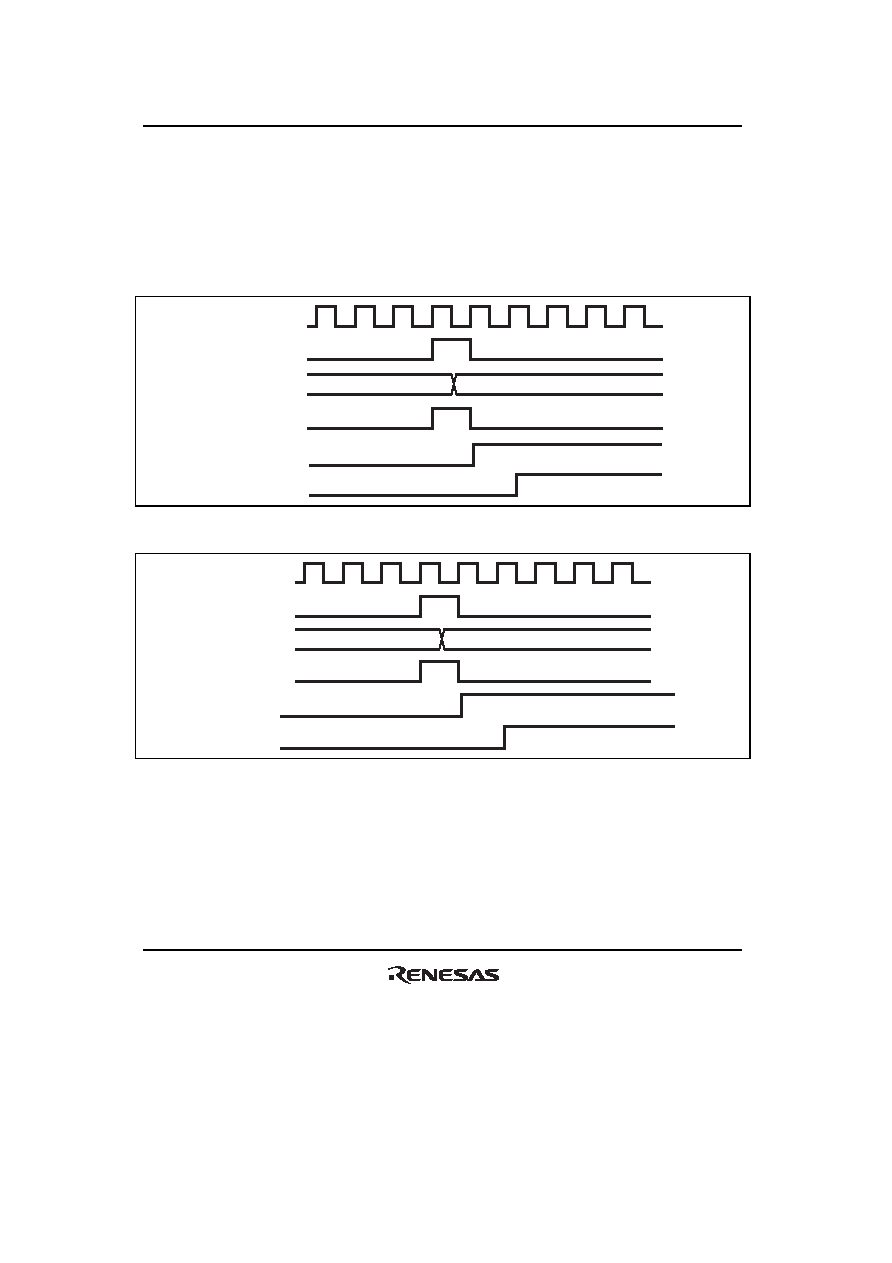

Figure 14.41 shows the timing for setting of the TCFV flag in TSR by overflow occurrence, and

the TCIV interrupt request signal timing.

Figure 14.42 shows the timing for setting of the TCFU flag in TSR by underflow occurrence, and

the TCIU interrupt request signal timing.

H'FFFF

TCNT input

clock

TCNT

(overflow)

Overflow signal

TCFV flag

TCIV interrupt

H'0000

Figure 14.41 TCIV Interrupt Setting Timing

H'0000

TCNT input

clock

TCNT

(underflow)

Underflow signal

TCFU flag

TCIU interrupt

H'FFFF

Figure 14.42 TCIU Interrupt Setting Timing
