Section 15 Programmable Pulse Generator (PPG)
Rev. 2.00 Sep. 24, 2008 Page 805 of 1468
REJ09B0412-0200
15.4.6
Example of Non-Overlapping Pulse Output (Example of 4-Phase Complementary
Non-Overlapping Pulse Output)

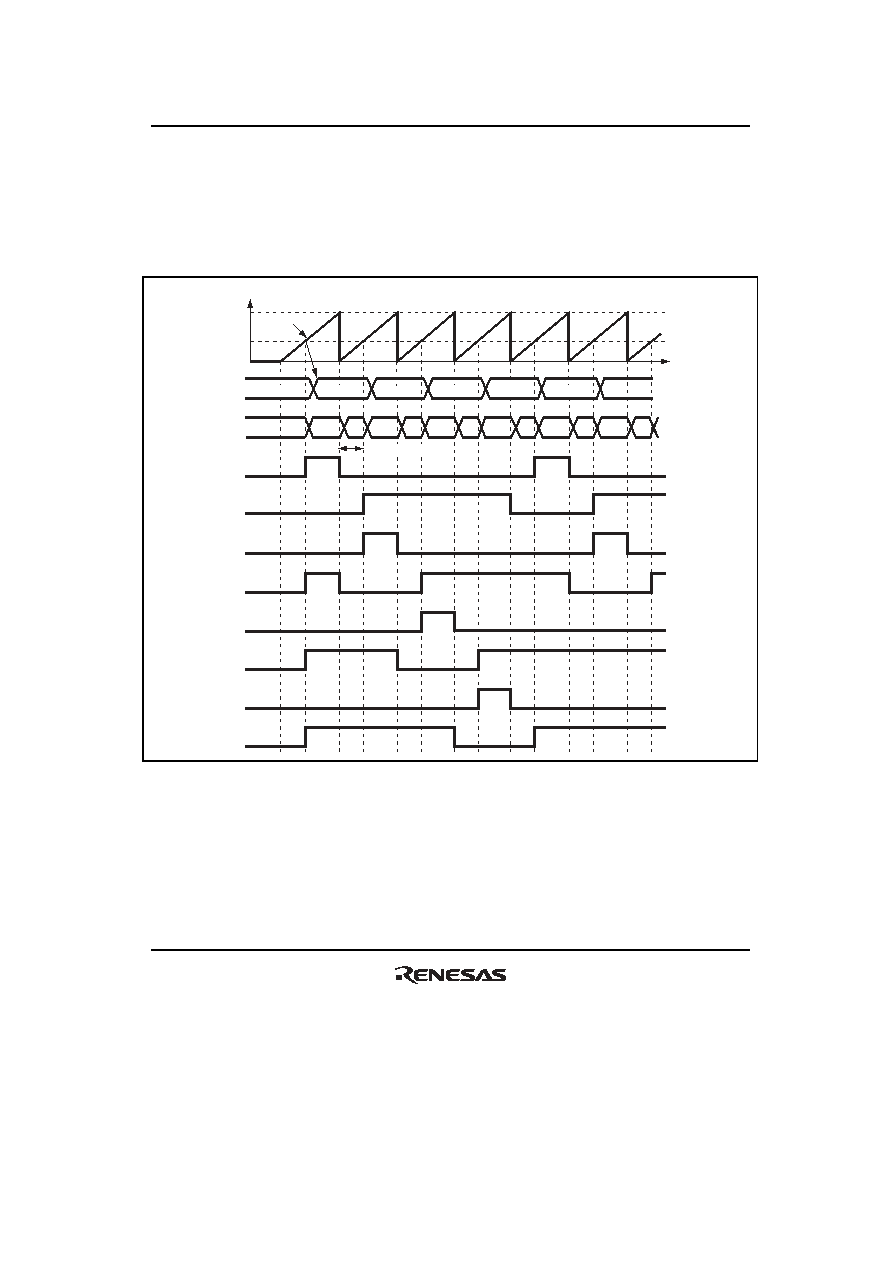

Figure 15.12 shows an example in which pulse output is used for 4-phase complementary non-
overlapping pulse output.
TCNT value
TCNT
TGRB
TGRA
H'0000
NDRH
95
65
59
56
95
65
00
95
05
65
41
59
50
56
14
95
05
65
PODRH
PO15
PO14
PO13
PO12
PO11
PO10
PO9
PO8
Time
Non-overlapping margin
Figure 15.12 Non-Overlapping Pulse Output Example (4-Phase Complementary)
