Section 15 Programmable Pulse Generator (PPG)
Rev. 2.00 Sep. 24, 2008 Page 807 of 1468
REJ09B0412-0200
15.4.7
Inverted Pulse Output
If the G3INV, G2INV, G1INV, and G0INV bits in PMR are cleared to 0, values that are the
inverse of the PODR contents can be output.
Figure 15.13 shows the outputs when the G3INV and G2INV bits are cleared to 0, in addition to
the settings of figure 15.12.
TCNT value
TCNT
TGRB
TGRA
H'0000
NDRH
95
65
59
56
95
65
00
95
05
65
41
59
50
56
14
95
05
65
PODRL
PO15
PO14
PO13
PO12
PO11
PO10
PO9
PO8
Time

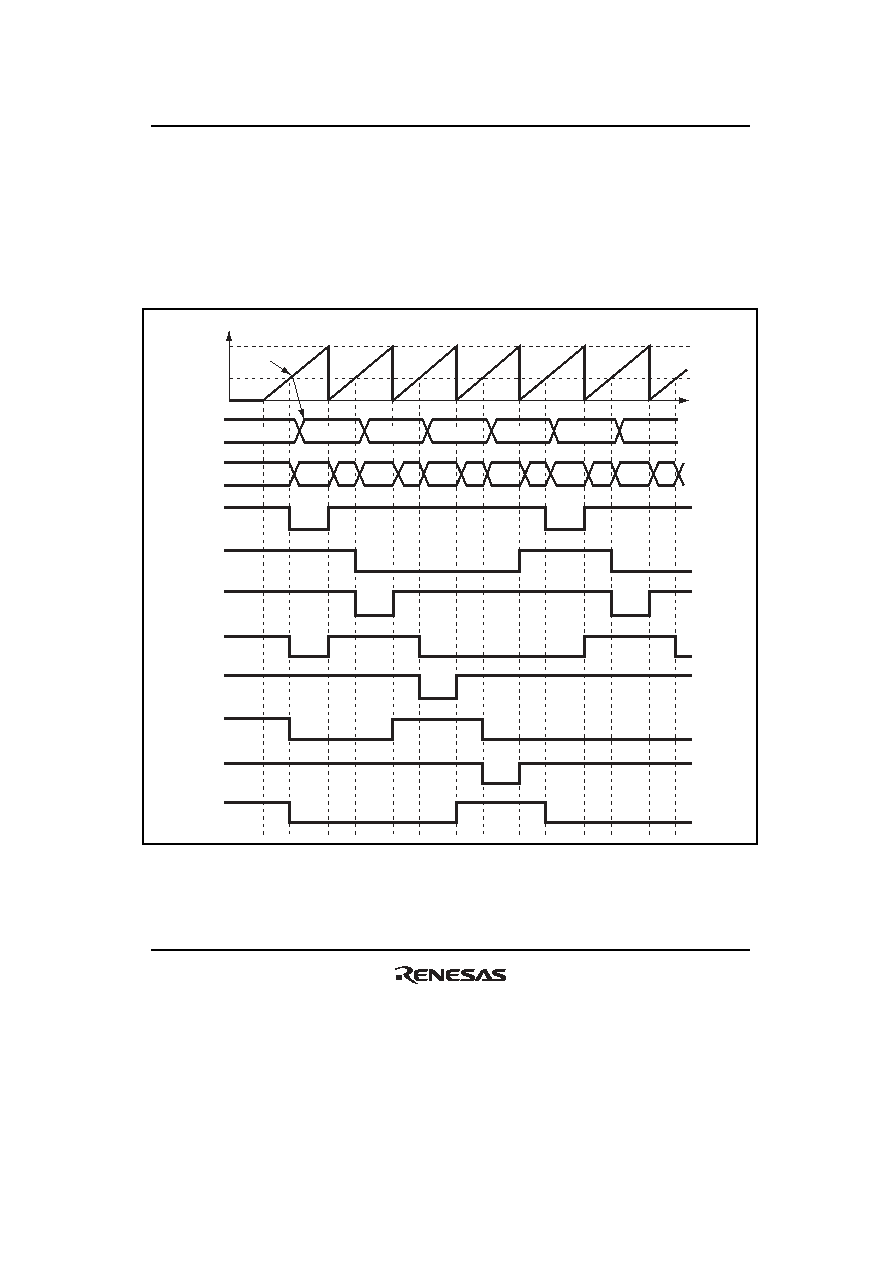

Figure 15.13 Inverted Pulse Output (Example)
