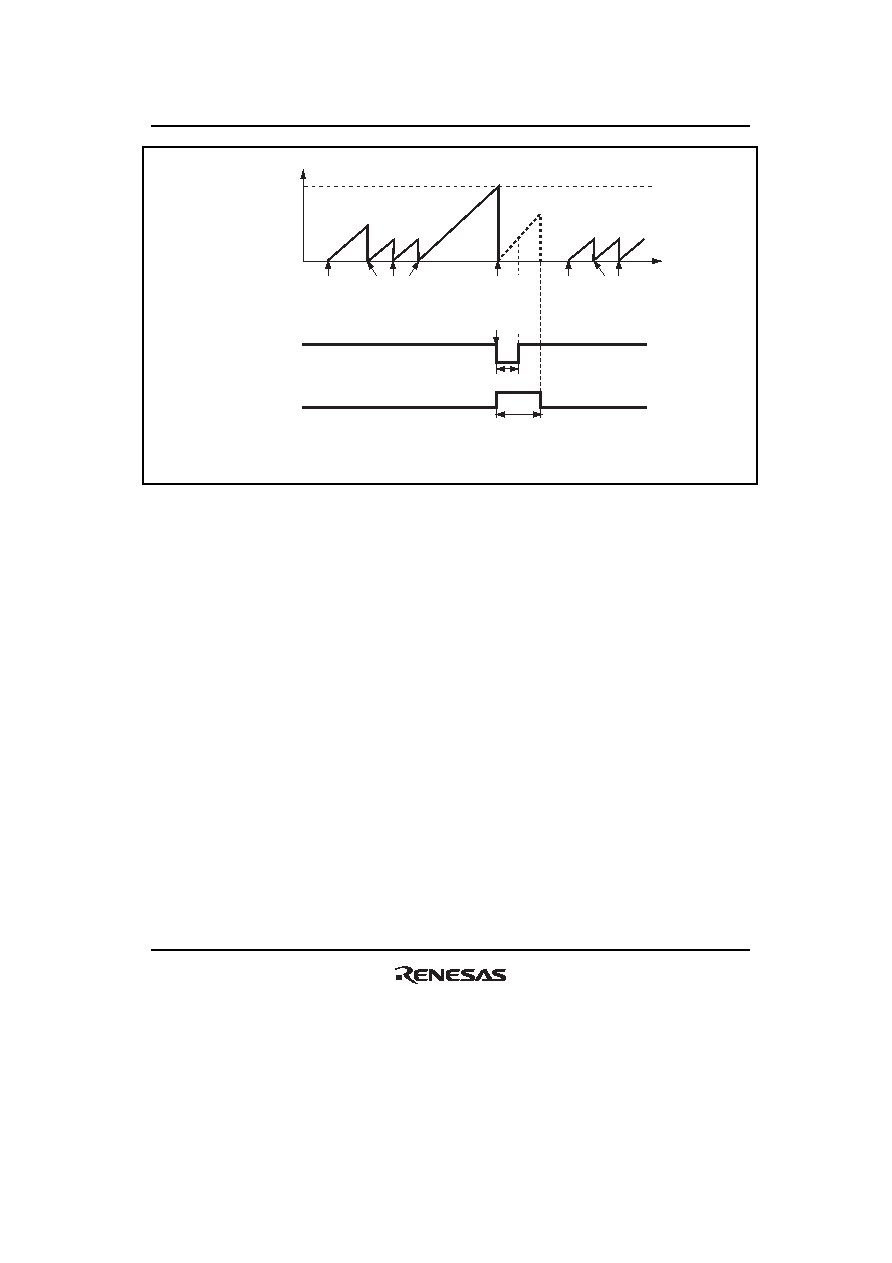

Section 18 Watchdog Timer (WDT)
Rev. 2.00 Sep. 24, 2008 Page 861 of 1468
REJ09B0412-0200
TCNT value
H'00
Time
H'FF
WT/
IT = 1
TME = 1
H'00 written
to TCNT
WT/
IT = 1
TME = 1
H'00 written
to TCNT
133 states*2
519 states
WDTOVF signal
Internal reset signal*1
Notes: 1. If TCNT overflows when the RSTE bit is set to 1, an internal reset signal is generated.
2. 130 states when the RSTE bit is cleared to 0.
Overflow
WDTOVF and
internal reset are
generated
WOVF = 1
Figure 18.2 Operation in Watchdog Timer Mode
