Section 3 MCU Operating Modes
Rev. 2.00 Sep. 24, 2008 Page 88 of 1468
REJ09B0412-0200
Modes 1 and 2
User boot mode,
boot mode
(Advanced mode)
E
xternal address space/
reserved area*1*3
External address space/
reserved area*1*3
External address space/
reserved area*1*3
External address space/
reserved area*1*3
Access prohibited area
On-chip ROM
On-chip RAM*2
On-chip I/O registers
On-chip I/O registers
H'000000
H'100000
H'FEE000
H'FFC000
H'FD9000
H'FDC000
H'FFEA00
H'FFFF00
H'FFFF20
H'FFFFFF
Reserved area*3
Reserved area*3
Reserved area*3
H'FEC000
Modes 3 and 7
Boundary scan enabled single-chip mode,
single-chip mode
(Advanced mode)
External address space/
reserved area*1*3
External address space/
reserved area*1*3
External address space/
reserved area*1*3
External address space/
reserved area*1*3
Access prohibited area
On-chip ROM
On-chip RAM/
External address space*4
On-chip I/O registers
On-chip I/O registers
H'000000
H'100000
H'FEE000
H'FFC000
H'FD9000
H'FDC000
H'FFEA00
H'FFFF00
H'FFFF20
H'FFFFFF
H'FEC000
H'FEE000
H'FFC000
H'FD9000
H'FDC000
H'FFEA00
H'FFFF00
H'FFFF20
H'FFFFFF
H'FEC000
External address space
External address space
External address space
External address space
Access prohibited area
On-chip RAM/
External address space*4
On-chip I/O registers
On-chip I/O registers
Modes 4 and 5
On-chip ROM disabled
extended mode
(Advanced mode)
H'000000
This area is specified as the external address space when EXPE = 1 and the reserved area when EXPE = 0.
The on-chip RAM is used for flash memory programming. Do not clear the RAME bit in SYSCR to 0.
Do not access the reserved areas.
This area is specified as the external address space by clearing the RAME bit in SYSCR to 0.
1.
2.
3.
4.
Notes:

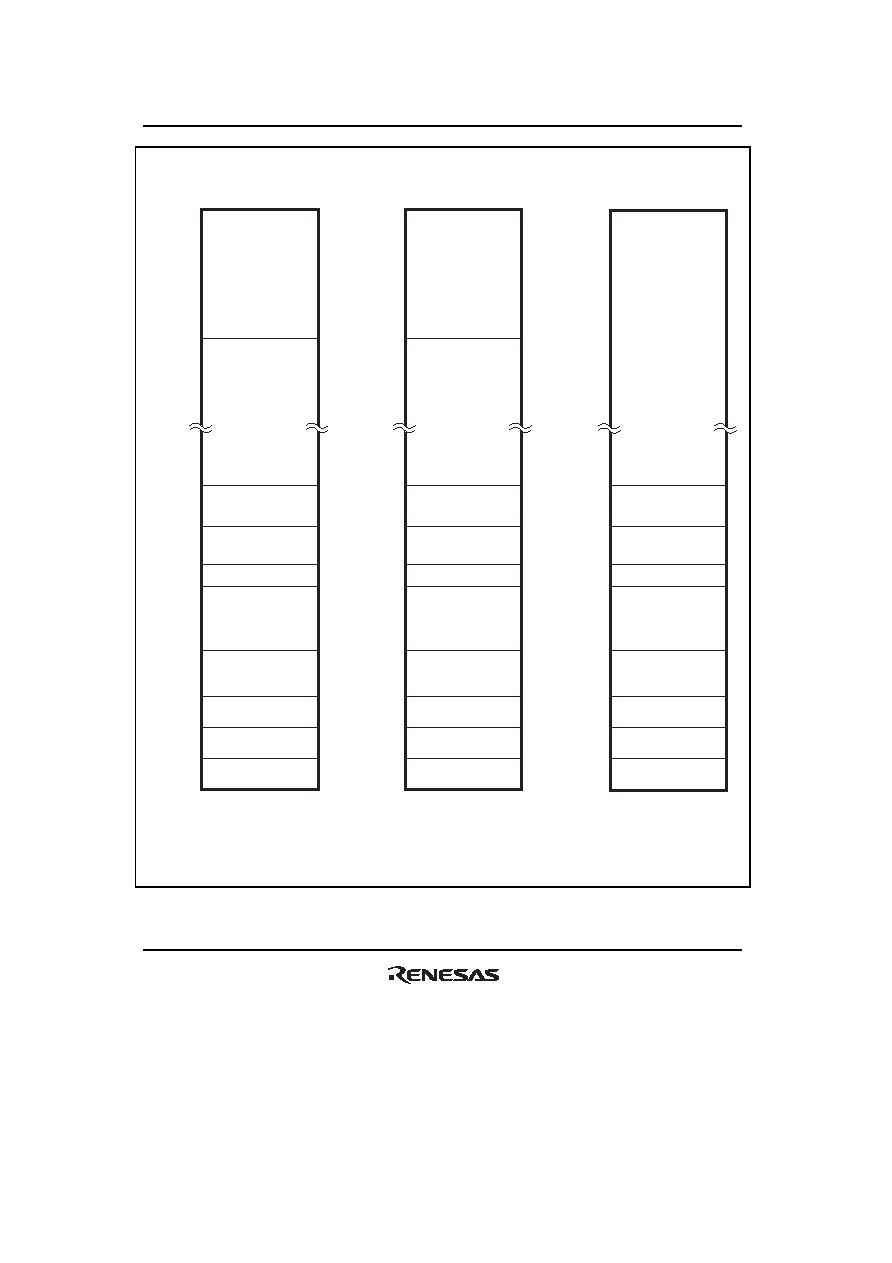

Figure 3.1 Address Map in Each Operating Mode of H8SX/1668R and H8SX/1668M (1)
