THMC50
REMOTE/LOCAL TEMPERATURE MONITOR AND
FAN CONTROLLER WITH SMBus INTERFACE
SLIS090 – JULY 1999
2
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265

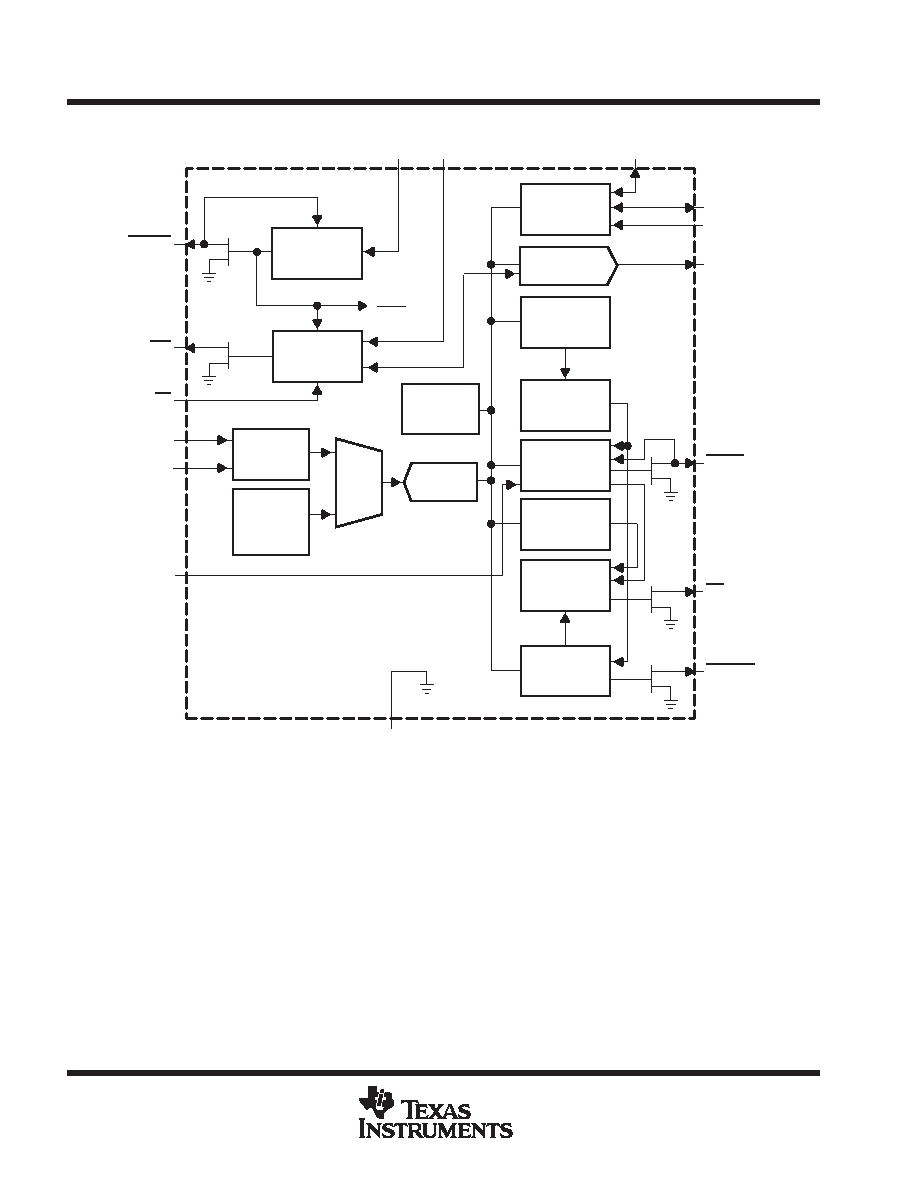

schematic/block diagram
ADC
Aux Reset
Generator
Bandgap
Temperature
Sensor
(Ambient)
Signal
Conditioning
Main Reset
Generator
Analog
Mux
SDA
Analog Output
Register & DAC
Configuration
Register
Mask
Gating
Interrupt
Mask
Register
Interrupt
Status
Registers
Limit
Comparators
Value & Limit
Registers
Serial Bus
Interface
GND
SCL
FAN_SPD/NTEST_IN
THERM
INT
FAN_OFF
AUXRST
RST
MR
REMOTE_DIODE+
REMOTE_DIODE–
GPI
VCC3AUX
VCC3
ADD/NTEST_OUT
Address
Pointer
Register
Internal
Reset
