301-R010-400 데이터시트(PDF) 19 Page - Magnetrol International, Inc.

부품명 301-R010-400
상세설명  Echotel짰 Model 300/301 Ultrasonic Non-Contact Transmitter For Level/Volume/Open Channel Flow
PDF  36 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  MAGNETROL [Magnetrol International, Inc.]
홈페이지  http://www.magnetrol.com
Logo MAGNETROL - Magnetrol International, Inc.

301-R010-400 데이터시트(HTML) 19 Page - Magnetrol International, Inc.

Back Button 301-R010-400 Datasheet HTML 15Page - Magnetrol International, Inc. 301-R010-400 Datasheet HTML 16Page - Magnetrol International, Inc. 301-R010-400 Datasheet HTML 17Page - Magnetrol International, Inc. 301-R010-400 Datasheet HTML 18Page - Magnetrol International, Inc. 301-R010-400 Datasheet HTML 19Page - Magnetrol International, Inc. 301-R010-400 Datasheet HTML 20Page - Magnetrol International, Inc. 301-R010-400 Datasheet HTML 21Page - Magnetrol International, Inc. 301-R010-400 Datasheet HTML 22Page - Magnetrol International, Inc. 301-R010-400 Datasheet HTML 23Page - Magnetrol International, Inc. Next Button
Zoom Inzoom in Zoom Outzoom out
 19 / 36 page
background image
SPHERICAL
Rad
Rad
Side View
HORIZONTAL/SPHERICAL
LINEAR
SPLINE
Figure 11

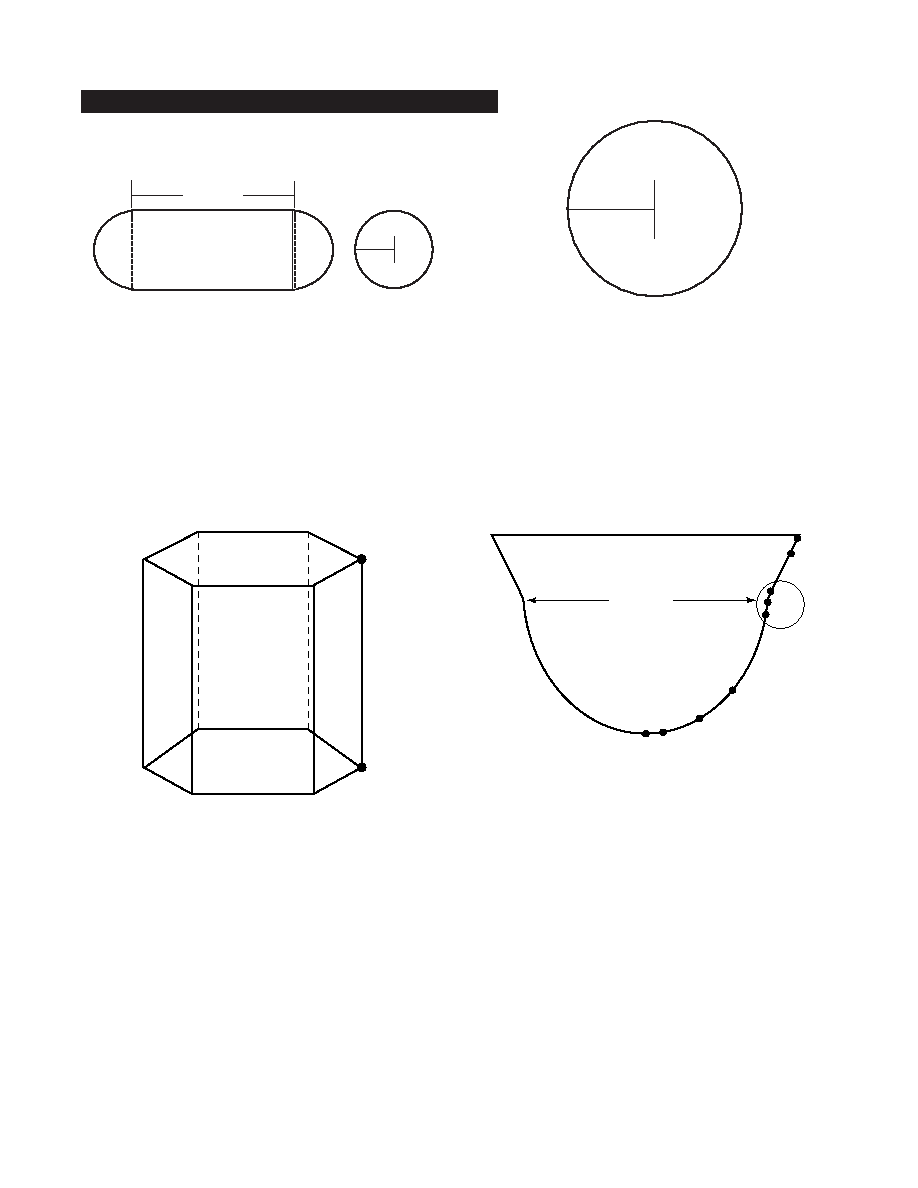

Vessel Drawings cont.
Figure 12
Custom Table (Volume and Level)
Length
SOFTWARE CONFIGURATION cont.
19
P2
P1
P1
P2
P3
P4
P5
P6
P7
P8
P9
Transition
point
Use where walls are not perpendicular to base.
Concentrate at least two points at beginning (P1) and end (P9);
and three points at either side of transition points.
SYSTEM CONFIGURATION MENU—VOLUME AND LEVEL cont.
