ADL5811

Rev. 0 | Page 6 of 28

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

NOTES

1. NC = NO CONNECT. CAN BE GROUNDED.

2. EXPOSED PAD MUST BE CONNECTED

TO GROUND.

RFCT

RFIN

TOP VIEW

(Not to Scale)

ADL5811

LOIP

LOIN

DATA

CLK

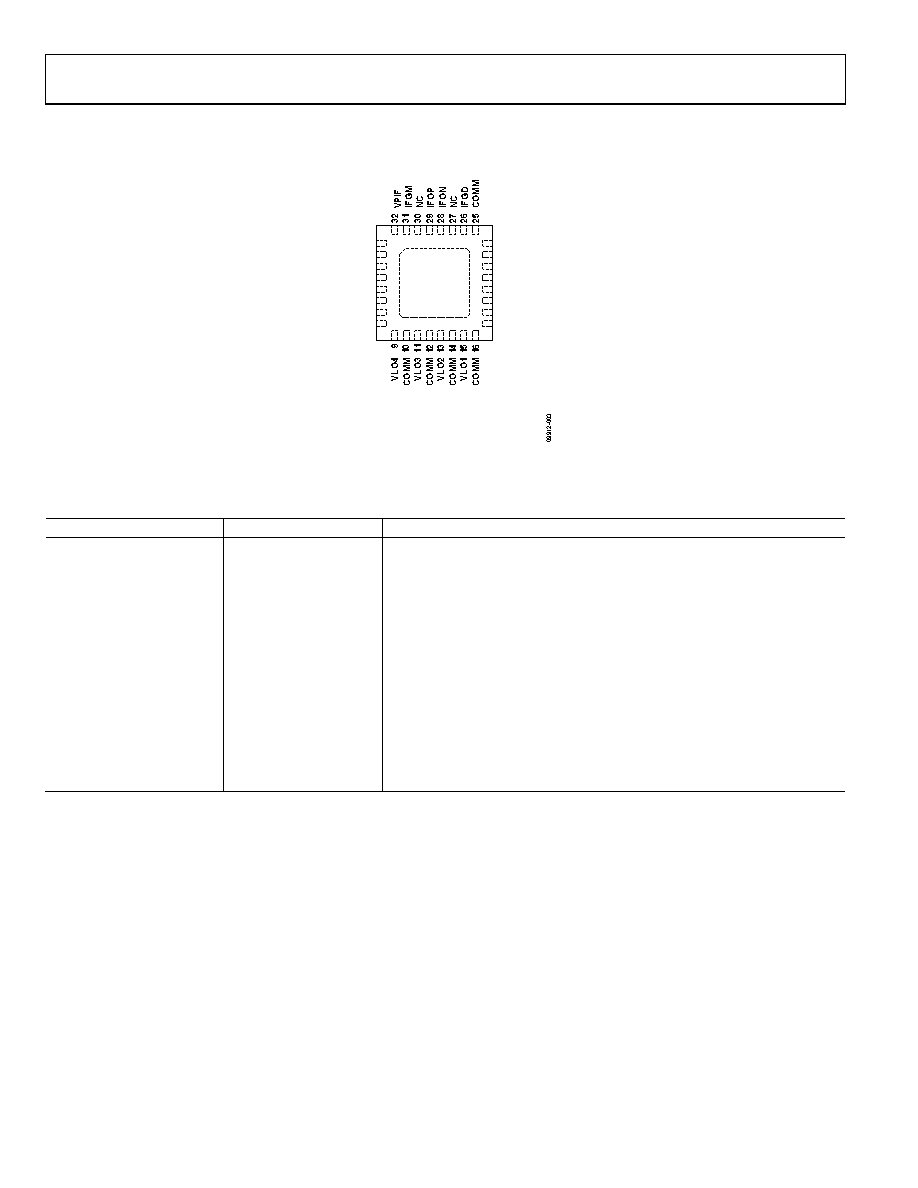

Figure 3. Pin Configuration

Table 4. Pin Function Descriptions

Pin No.

Mnemonic

Description

1, 3, 5 to 8, 22 to 24, 27, 30

No Connect. Can be grounded.

RFCT

RF Balun Center Tap (AC Ground).

RFIN

RF Input. Should be ac-coupled.

9, 11, 13, 15

VLO4, VLO3, VLO2, VLO1

Positive Supply Voltages for LO Amplifier.

10, 12, 14, 16, 25

COMM

Ground.

17, 18, 19

CLK, DATA, LE

Serial Port Interface Control.

LOIN

Ground Return for LO Input.

LOIP

LO Input. Should be ac-coupled.

IFGD

Supply Return for IF Amplifier. Must be grounded.

28, 29

IFOP, IFON

IF Differential Open-Collector Outputs. Should be pulled up to VCC using

external inductors.

IFGM

IF Amplifier Bias Control.

VPIF

Supply Voltage for IF Amplifier.

EPAD

Exposed pad must be connected to ground.
