ADL5811
Rev. 0 | Page 14 of 28
1
2
3
4
5
6
7
8
9
10
11
700
900 1100 1300 1500 1700 1900 2100 2300 2500 2700
RF FREQUENCY (MHz)
RFB = 0
RFB = 1
RFB = 2
RFB = 3
RFB = 4
RFB = 5
RFB = 6
RFB = 7
TA = +25°C

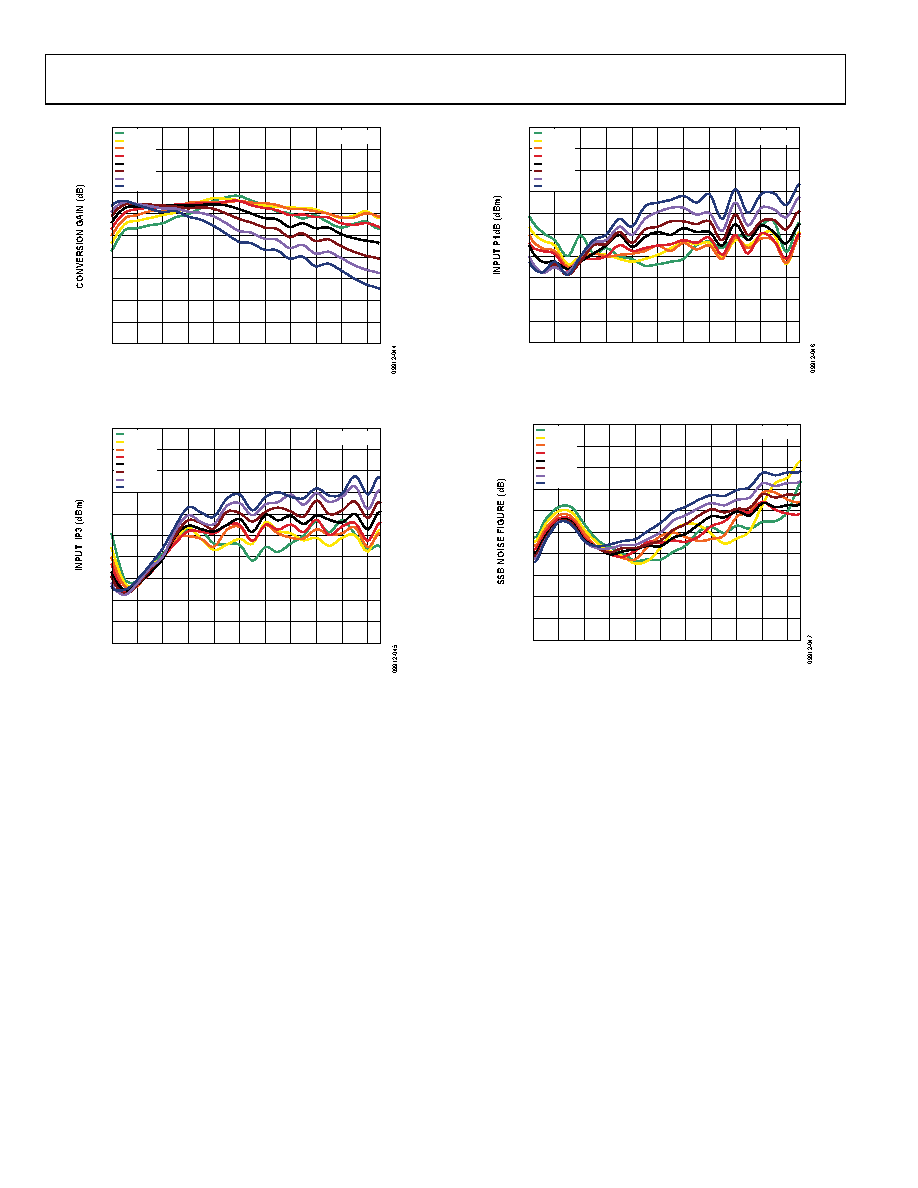

Figure 44. Conversion Gain vs. RF Frequency for All RFB Settings
22
23
24
25
26
27
28
29
30
31
32
700
900 1100 1300 1500 1700 1900 2100 2300 2500 2700
RF FREQUENCY (MHz)
RFB = 0
RFB = 1
RFB = 2
RFB = 3
RFB = 4
RFB = 5
RFB = 6
RFB = 7
TA = +25°C
Figure 45. Input IP3 vs. RF Frequency for All RFB Settings
8
9
10
11
12
13
14
15
16
17
18
700
900 1100 1300 1500 1700 1900 2100 2300 2500 2700
RF FREQUENCY (MHz)
RFB = 0
RFB = 1
RFB = 2
RFB = 3
RFB = 4
RFB = 5
RFB = 6
RFB = 7
TA = +25°C
Figure 46. Input P1dB vs. RF Frequency for All RFB Settings
6
7
8
9
10
11
12
13
14
15
16
700
900 1100 1300 1500 1700 1900 2100 2300 2500 2700
RF FREQUENCY (MHz)
RFB = 0
RFB = 1
RFB = 2
RFB = 3
RFB = 4
RFB = 5
RFB = 6
RFB = 7
TA = +25°C
Figure 47. SSB Noise Figure vs. RF Frequency for All RFB Settings
