ADL5811

Rev. 0 | Page 7 of 28

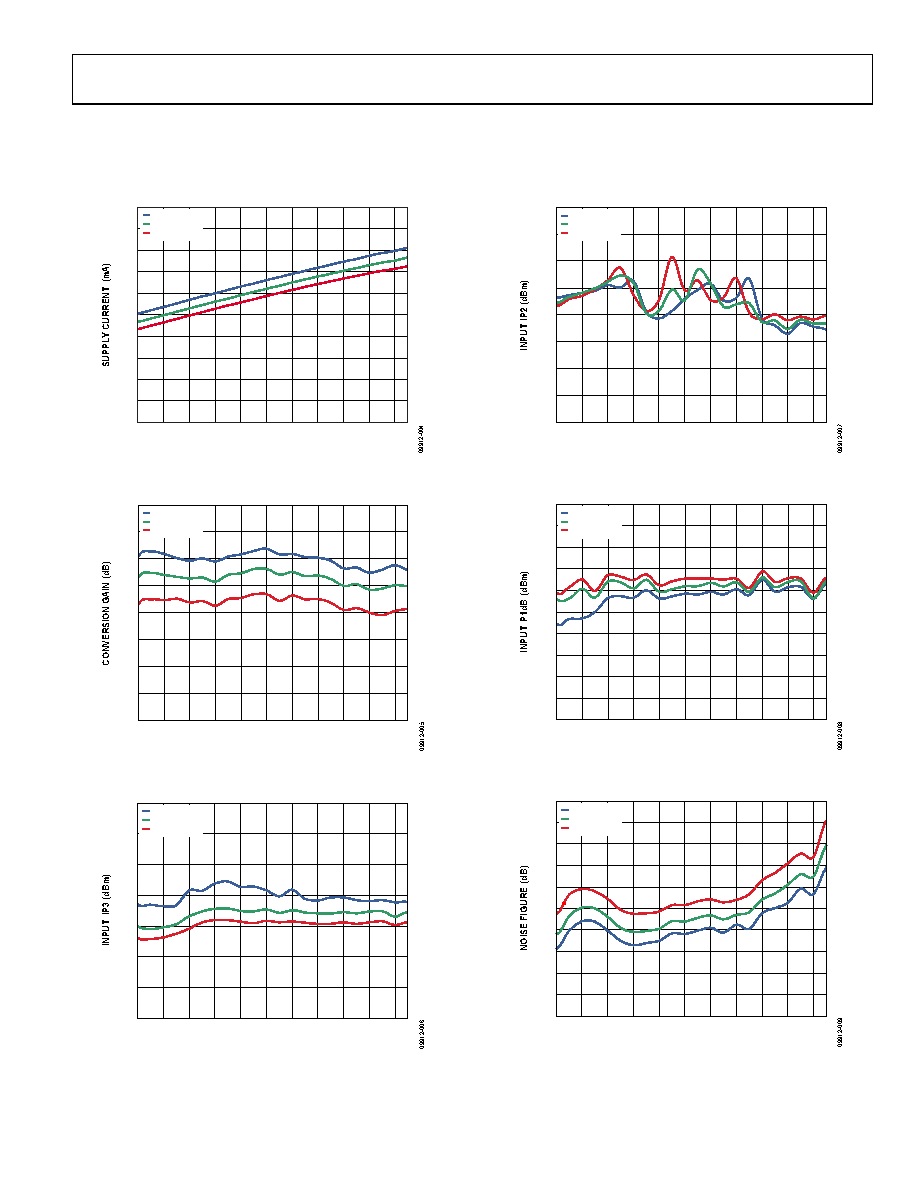

TYPICAL PERFORMANCE CHARACTERISTICS

VS = 5 V, TA = 25°C, fRF = 1900 MHz, fLO = 1697 MHz, RF power = −10 dBm, LO power = 0 dBm, R1 = 910 Ω, ZO = 50 Ω, optimum SPI settings,

unless otherwise noted.

120

130

140

150

160

170

180

190

200

210

220

700

900 1100 1300 1500 1700 1900 2100 2300 2500 2700

RF FREQUENCY (MHz)

TA = –40°C

TA = +25°C

TA = +85°C

Figure 4. Supply Current vs. RF Frequency

700

900 1100 1300 1500 1700 1900 2100 2300 2500 2700

RF FREQUENCY (MHz)

TA = –40°C

TA = +25°C

TA = +85°C

Figure 5. Power Conversion Gain vs. RF Frequency

700

900 1100 1300 1500 1700 1900 2100 2300 2500 2700

RF FREQUENCY (MHz)

TA = –40°C

TA = +25°C

TA = +85°C

Figure 6. Input IP3 vs. RF Frequency

700

900 1100 1300 1500 1700 1900 2100 2300 2500 2700

RF FREQUENCY (MHz)

TA = –40°C

TA = +25°C

TA = +85°C

Figure 7. Input IP2 vs. RF Frequency

700

900 1100 1300 1500 1700 1900 2100 2300 2500 2700

RF FREQUENCY (MHz)

TA = –40°C

TA = +25°C

TA = +85°C

Figure 8. Input P1dB vs. RF Frequency

700

900 1100 1300 1500 1700 1900 2100 2300 2500 2700

RF FREQUENCY (MHz)

TA = –40°C

TA = +25°C

TA = +85°C

Figure 9. SSB Noise Figure vs. RF Frequency
