ADL5812

Rev. 0 | Page 6 of 28

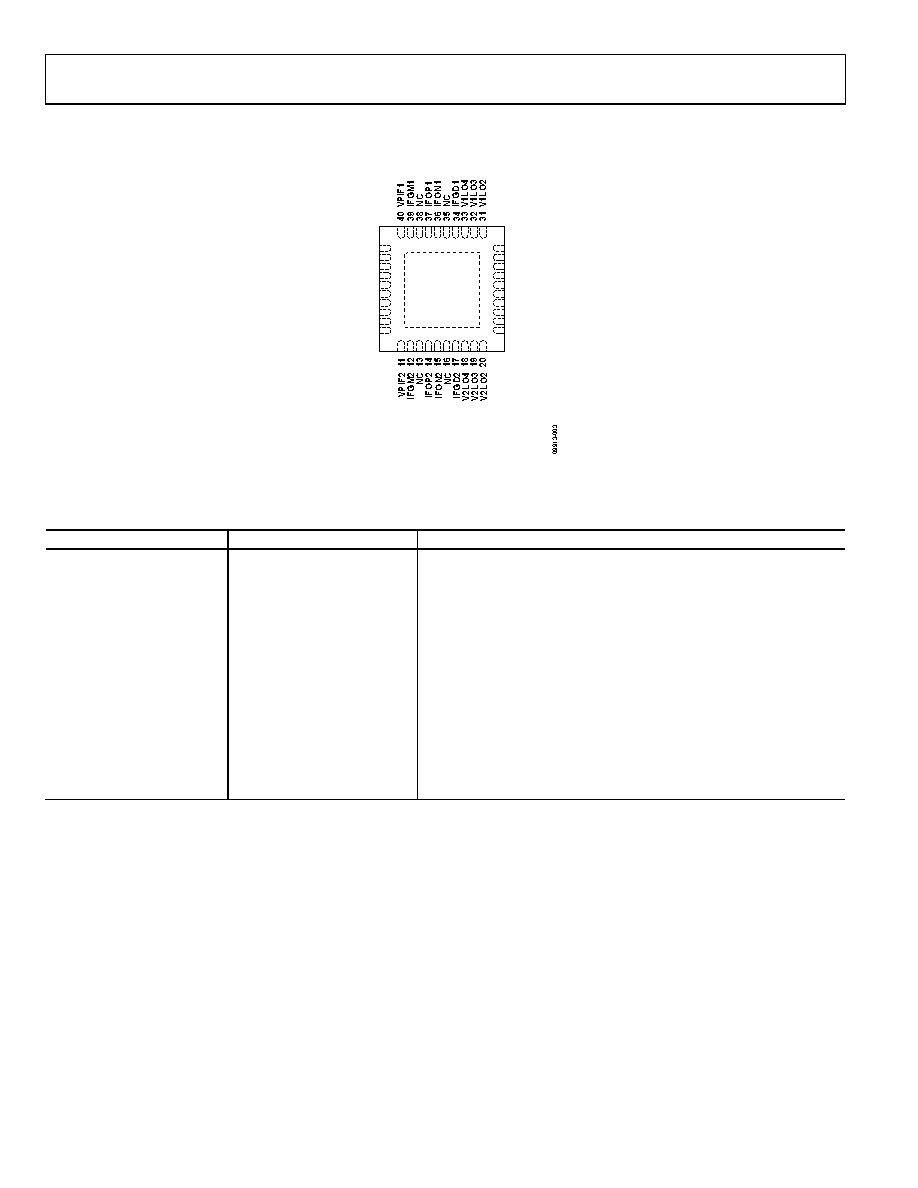

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

NOTES

1. NC = NO CONNECT. CAN BE GROUNDED.

2. EXPOSED PAD MUST BE CONNECTED

TO GROUND.

RF1

RFCT1

RFCT2

RF2

V1LO1

LOIP

LOIN

DATA

CLK

V2LO1

ADL5812

TOP VIEW

(Not to Scale)

Figure 3. Pin Configuration

Table 4. Pin Function Descriptions

Pin No.

Mnemonic

Description

1, 10

RF1, RF2

RF Input. Should be ac-coupled.

2, 9

RFCT1, RFCT2

RF Balun Center Tap (AC Ground).

3 to 8, 13, 16, 27 to 29, 35, 38

No Connect. Can be grounded.

11, 40

VPIF1, VPIF2

Supply Voltage for IF Amplifier.

12, 39

IFGM1, IFGM2

IF Amplifier Bias Control.

14, 15, 36, 37

IFOP1, IFOP2, IFON1, IFON2

Differential Open-Collector IF Outputs. Should be pulled up to VCC via

external inductors.

17, 34

IFGD1, IFGD2

Supply Return for IF Amplifier. Must be grounded.

18 to 21, 30 to 33

V1LO1, V1LO2, V1LO3, V1LO4,

V2LO1, V2LO2, V2LO3, V2LO4

Positive Supply Voltages for LO Amplifiers.

22, 23, 24

CLK, DATA, LE

Serial Port Interface Control.

LOIN

Ground Return for LO Input. Must be ac coupled.

LOIP

LO Input. Should be ac-coupled.

EPAD

Exposed pad must be connected to ground.
