ADL5812

Rev. 0 | Page 7 of 28

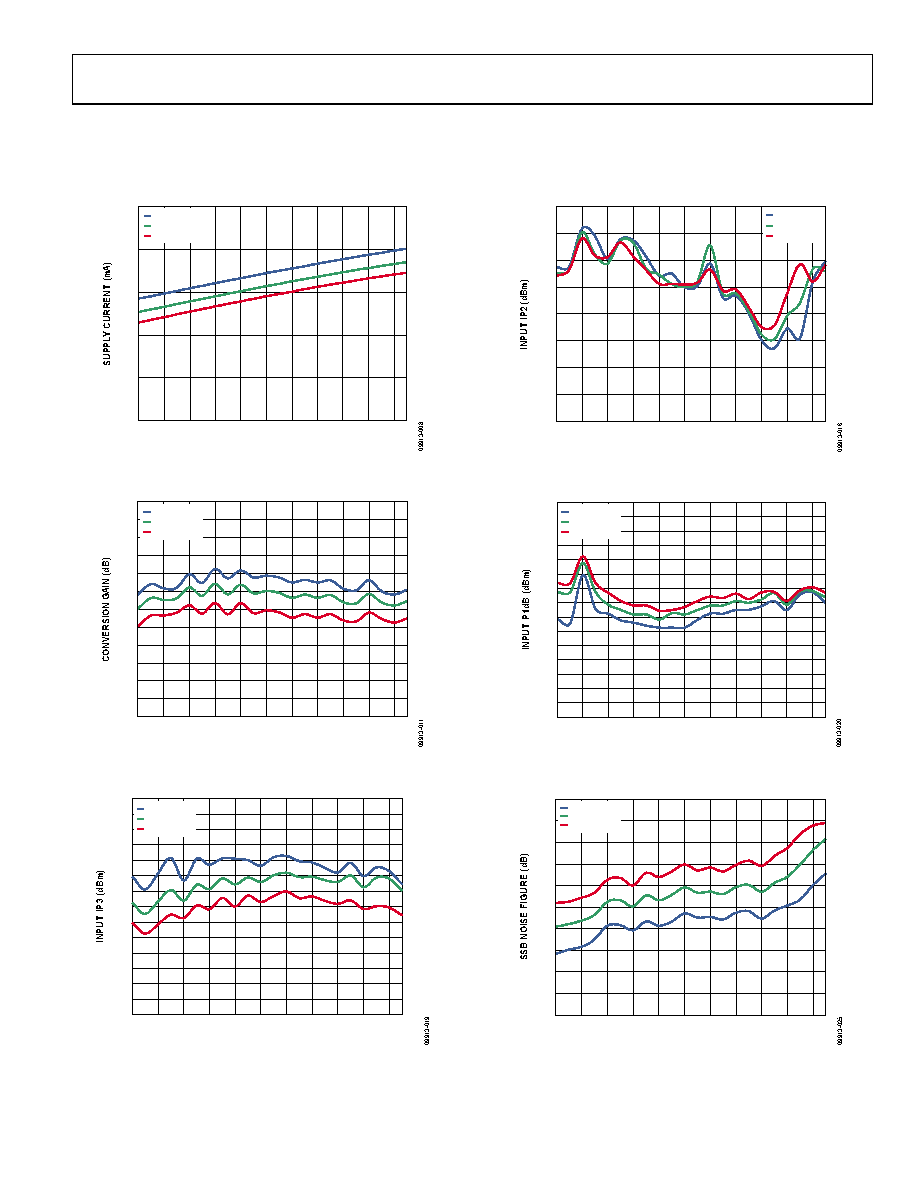

TYPICAL PERFORMANCE CHARACTERISTICS

VS = 5 V, TA = 25°C, fRF = 1900 MHz, fLO = 1697 MHz, RF power = −10 dBm, LO power = 0 dBm, R1 = R2 = 1200 Ω, ZO = 50 Ω, optimum

SPI settings, unless otherwise noted.

250

300

350

400

450

200

700

900 1100 1300 1500 1700 1900 2100 2300 2500 2700

RF FREQUENCY (MHz)

TA = –40°C

TA = +25°C

TA =+85°C

Figure 4. Supply Current vs. RF Frequency

700

900 1100 1300 1500 1700 1900 2100 2300 2500 2700

RF FREQUENCY (MHz)

TA = –40°C

TA = +25°C

TA =+85°C

Figure 5. Power Conversion Gain vs. RF Frequency

700

900 1100 1300 1500 1700 1900 2100 2300 2500 2700

RF FREQUENCY (MHz)

TA = –40°C

TA = +25°C

TA =+85°C

Figure 6. Input IP3 vs. RF Frequency

700

900 1100 1300 1500 1700 1900 2100 2300 2500 2700

RF FREQUENCY (MHz)

TA = –40°C

TA = +25°C

TA =+85°C

Figure 7. Input IP2 vs. RF Frequency

700

900 1100 1300 1500 1700 1900 2100 2300 2500 2700

RF FREQUENCY (MHz)

TA =–40°C

TA = +25°C

TA =+85°C

Figure 8. Input P1dB vs. RF Frequency

700

900 1100 1300 1500 1700 1900 2100 2300 2500 2700

RF FREQUENCY (MHz)

TA = –40°C

TA = +25°C

TA = +85°C

Figure 9. SSB Noise Figure vs. RF Frequency
