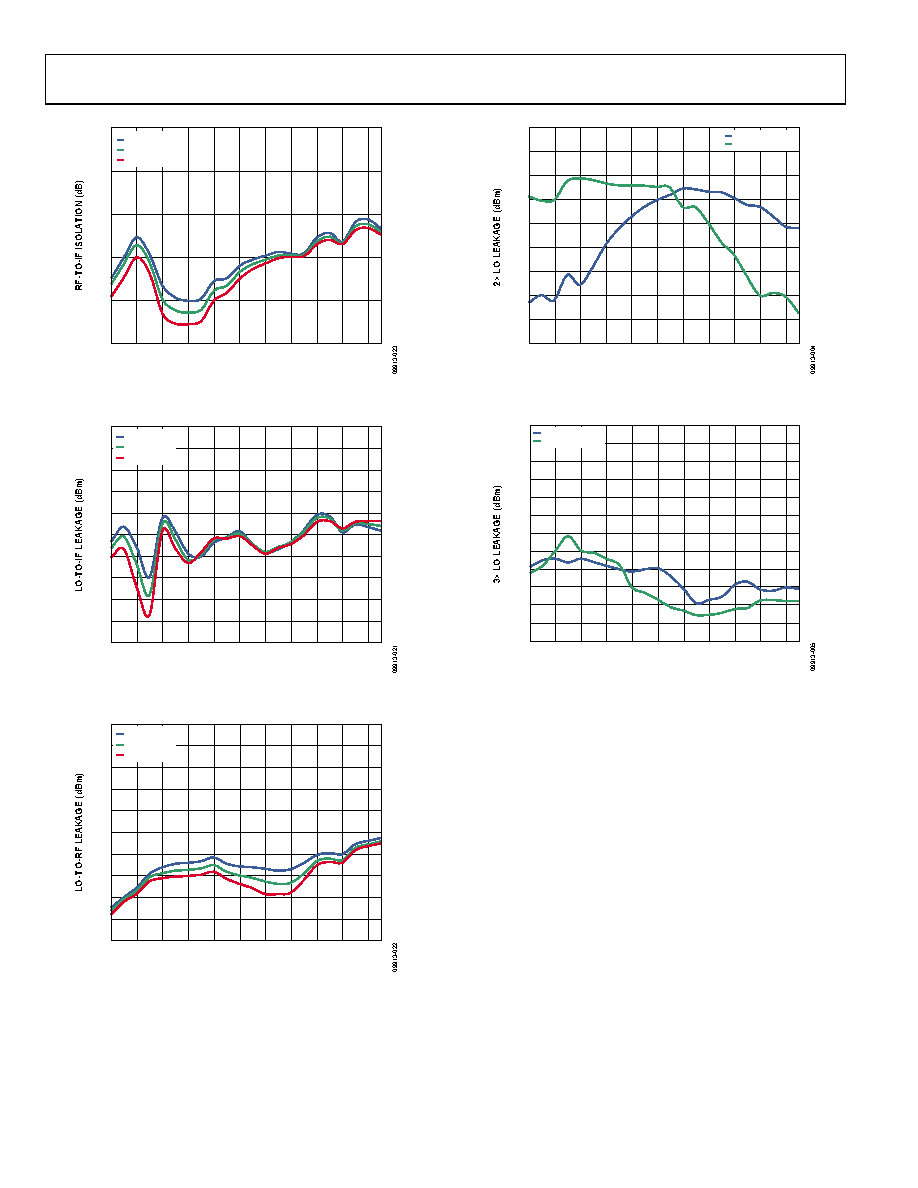

ADL5812

Rev. 0 | Page 12 of 28

–35

–30

–25

–20

–15

–10

700

900 1100 1300 1500 1700 1900 2100 2300 2500 2700

RF FREQUENCY (MHz)

TA =–40°C

TA = +25°C

TA =+85°C

Figure 34. RF-to-IF Isolation vs. RF Frequency

–60

–55

–50

–45

–40

–35

–30

–25

–20

–15

–10

500

700

900 1100 1300 1500 1700 1900 2100 2300 2500

LO FREQUENCY (MHz)

TA =–40°C

TA = +25°C

TA =+85°C

Figure 35. LO-to-IF Leakage vs. LO Frequency

–60

–55

–50

–45

–40

–35

–30

–25

–20

–15

–10

500

700

900 1100 1300 1500 1700 1900 2100 2300 2500

LO FREQUENCY (MHz)

TA =–40°C

TA = +25°C

TA =+85°C

Figure 36. LO-to-RF Leakage vs. LO Frequency

–55

–50

–45

–40

–35

–30

–25

–20

–15

–10

500

700

900 1100 1300 1500 1700 1900 2100 2300 2500

LO FREQUENCY (MHz)

2 × LO TO RF

2 × LO TO IF

Figure 37. 2XLO Leakage vs. LO Frequency

–70

–65

–60

–55

–50

–45

–40

–35

–30

–25

–20

–15

–10

500

700

900 1100 1300 1500 1700 1900 2100 2300 2500

LO FREQUENCY (MHz)

3 × LO TO RF

3 × LO TO IF

Figure 38. 3XLO Leakage vs. LO Frequency
