SSM2932
Data Sheet
Rev. 0 | Page 8 of 16
1
0.1
0.01
0.001
10
100
1k
10k
100k
FREQUENCY (Hz)
PO = 5mW
PO = 10mW
PO = 20mW

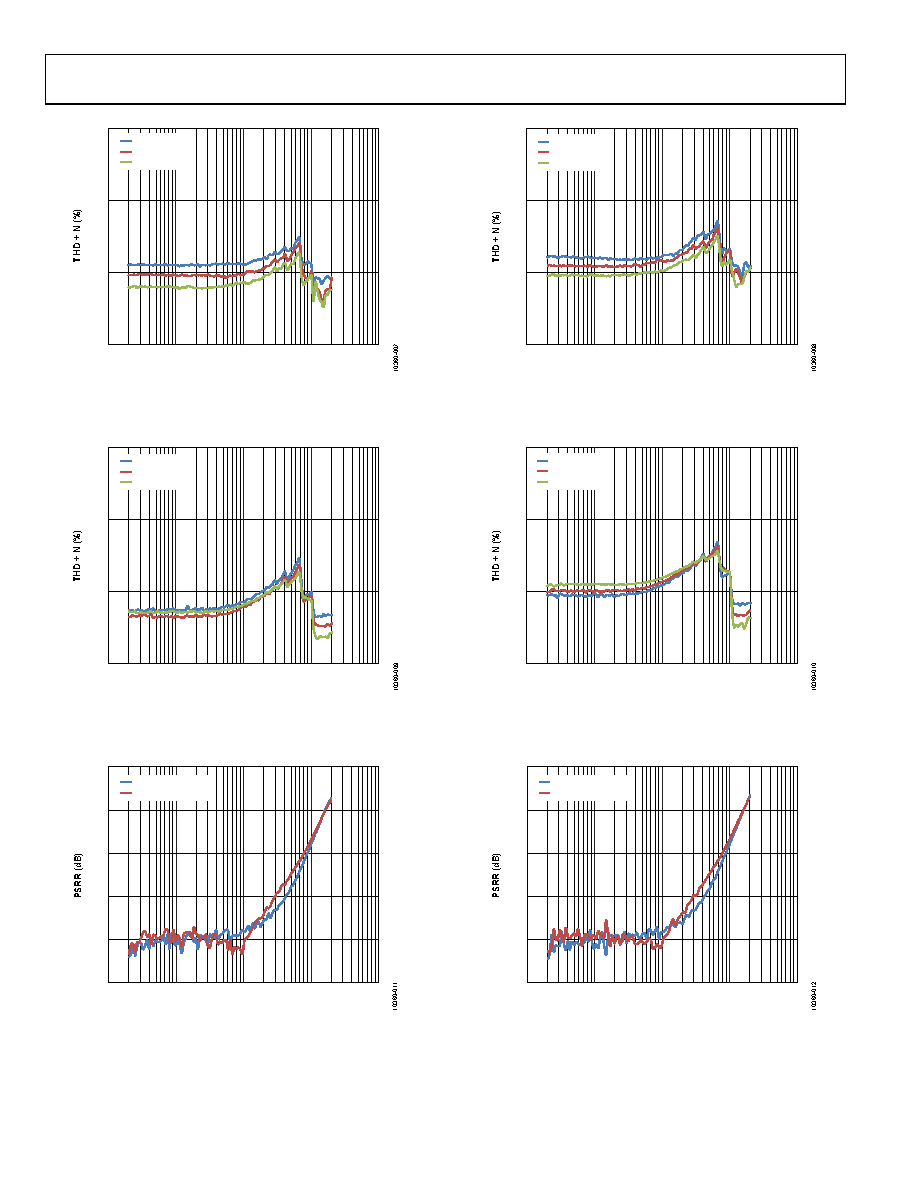

Figure 9. THD + N vs. Frequency, PVDD = 3.6 V, RL = 32 Ω
1
0.1
0.01
0.001
10
100
1k
10k
100k
FREQUENCY (Hz)
PO = 5mW
PO = 10mW
PO = 20mW
Figure 10. THD + N vs. Frequency, PVDD = 2.5 V, RL = 32 Ω
–50
–80
–70
–60
–90
–100
10
100
1k
10k
100k
FREQUENCY (Hz)
LEFT CHANNEL
RIGHT CHANNEL
Figure 11. PSRR vs. Frequency, PVDD = 3.0 V, RL = 32 Ω
1
0.1
0.01
0.001
10
100
1k
10k
100k
FREQUENCY (Hz)
PO = 5mW
PO = 10mW
PO = 20mW
Figure 12. THD + N vs. Frequency, PVDD = 3.6 V, RL = 16 Ω
1
0.1
0.01
0.001
10
100
1k
10k
100k
FREQUENCY (Hz)
PO = 5mW
PO = 10mW
PO = 20mW
Figure 13. THD + N vs. Frequency, PVDD = 2.5 V, RL = 16 Ω
–50
–80
–70
–60
–90
–100
10
100
1k
10k
100k
FREQUENCY (Hz)
LEFT CHANNEL
RIGHT CHANNEL
Figure 14. PSRR vs. Frequency, PVDD = 3.0 V, RL = 16 Ω
