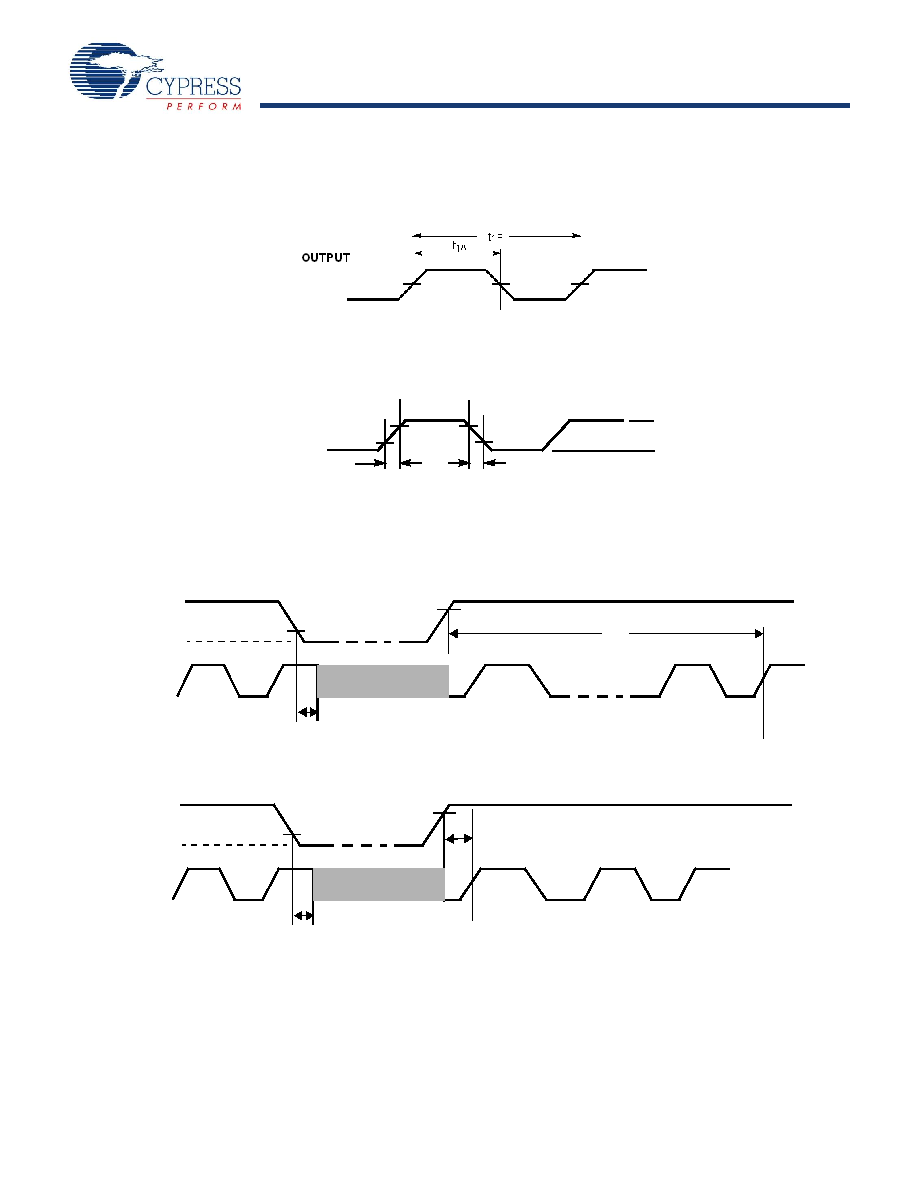

7 / 15 page ![]() CY25200 Document Number: 38-07633 Rev. *H Page 7 of 15 Switching Waveforms Figure 4. Duty Cycle Timing (DC = t1A/t1B) Figure 5. Output Rise and Fall Time (SSCLK and REFCLK) Figure 6. Power Down and Power Up Timing Figure 7. Output Enable and Disable Timing a OUTPUT Tr VDD 0 V Tf Output Rise time (Tr) = (0.6 x VDD)/SR1 (or SR3) Output Fall time (Tf) = (0.6 x VDD)/SR2 (or SR4) Refer to AC Electrical Characteristics table for SR (Slew Rate) values. SSCLK VDD tPU tSTP VIL VIH POWER DOWN 0 V (Asynchronous) High Impedance SSCLK VDD TOE1 VIL VIH OUTPUT ENABLE 0 V (Asynchronous) High Impedance TOE2 [+] Feedback |
|
|
