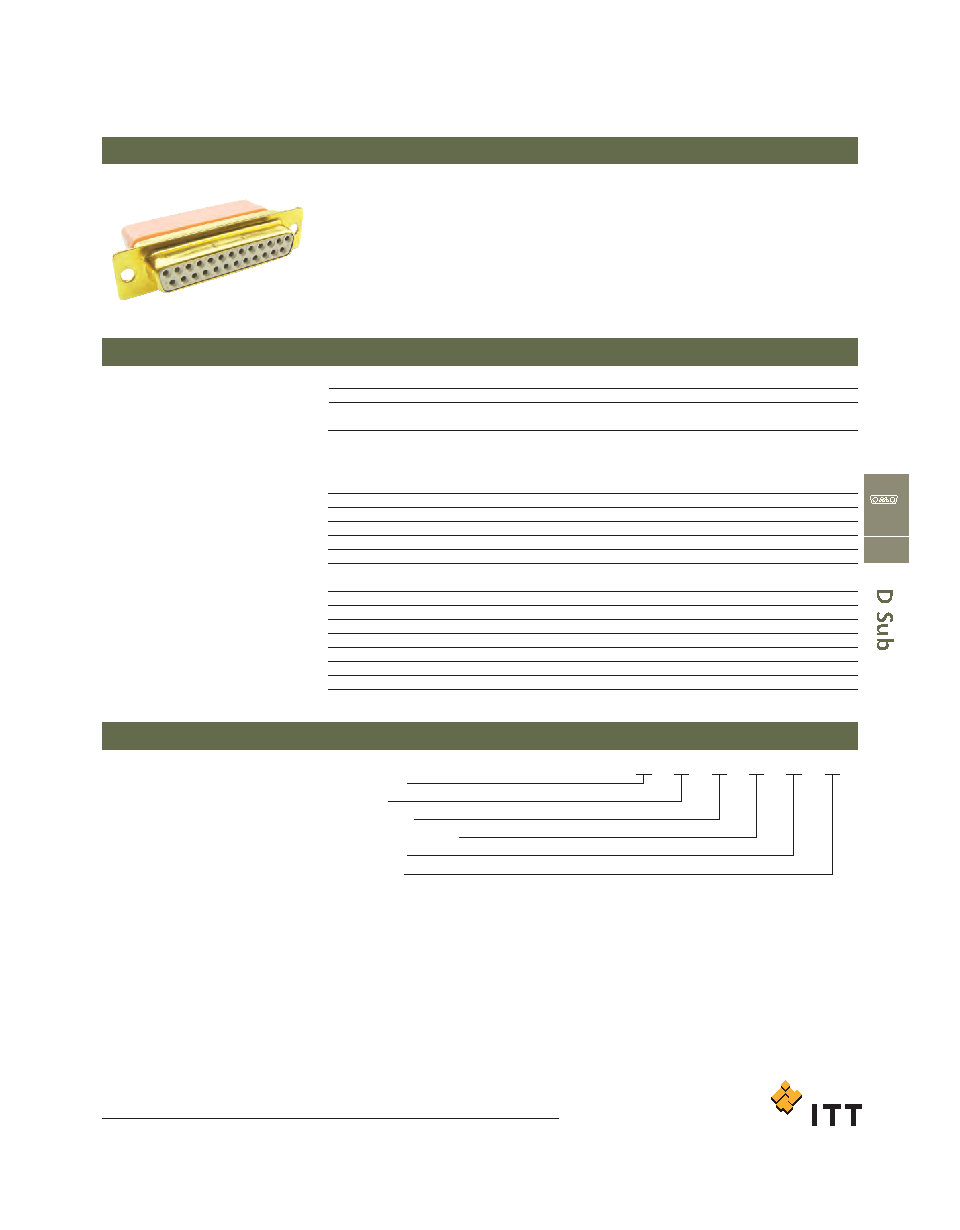

37 / 62 page  www.ittcannon.com Dimensions shown in inches (mm) Specifications and dimensions subject to change C C-37 Grommet D GD* Grommet D Performance and Material Specifications MATERIALS AND FINISHES Materials Finishes Shell Low carbon steel per ASTM-A-620 Yellow chromate over cadmium per QQ-P-415, Type II, Class 2 Contacts Copper alloy Standard finish: Gold over nickel Military finish: Gold 50 microinches thickness per MIL-G-45204, Type II, Grade C, Class 1, over copper per MIL-C-14550 Float Mount Hardware Stainless Steel Passivated per QQ-P-35 Grommets and Seals Silicone elastomer or Fluorosilicone Bonding Material Epoxy MECHANICAL FEATURES Wire Accommodation – Contact: #20, #22, #24 AWG. Wire O.D. .071 (1.80) maximum, .038 (0.97) minimum. Contact Retention – 9 lbs. minimum (40N) after 10 insertions ELECTRICAL DATA Test voltage AC RMS 60 Hz Sea Level 20,000 Ft. 50,000 Ft. 70,000 Ft. Average Flashover 1,000 1,000 500 500 Test 1,000 650 325 325 Maximum Current Carrying Capacity of Contacts – #20 Contacts: 5 Amps Temperature Range – -65°C to +150°C (-53.9°F to +302°F) • Environmental Protection • MIL-C-4308 Compatibility • Reliability and Versatility GD* connectors are ideal for aerospace, mili- tary, telecommunications and other applications requiring protection and high reliability. ITT Cannon developed GD* connectors to meet the needs of the avionics industry. These connectors provide high-density and moisture protection. Environmental protection is accomplished by the resilient grommet, interfacial seal, and bonded connector components. How to Order GD B - 25 P ** SERIES PREFIX SHELL SIZE MOUNTING TYPE CONTACT ARRANGEMENT CONTACT TYPE MODIFICATION MOUNTING TYPE CONTACT TYPE No designator – .120 (3.05) Diameter Mounting Holes P – Pin, crimp termination S – Socket, crimp termination Y – Float Mount for Rear and Front Panel Mounting CONTACT ARRANGEMENTS MODIFICATIONS (Typical Modifiers) Std. Density 9, 15, 25, 37 and 50 FO – Connectors supplied Less Contacts Hi Density 15, 26, 44, 62, 78 See D*MA modifiers, page C-8. SERIES PREFIX GD – Grommet D SHELL SIZE E, A, B, C, D ca_C1-C61.qxd:Layout 1 2/10/11 9:32 AM Page 37 |
|
