Instructions

5.2.3

Write All

As with the Erase All Memory (ERAL) instruction, the format of the Write All Memory with

same Data (WRAL) instruction requires that a dummy address be provided. As with the

Write Data to Memory (WRITE) instruction, the format of the Write All Memory with same

Data (WRAL) instruction requires that an 8-bit data byte, or 16-bit data word, be provided.

This value is written to all the addresses of the memory device. The completion of the cycle

can be detected by monitoring the READY/BUSY line, as described next.

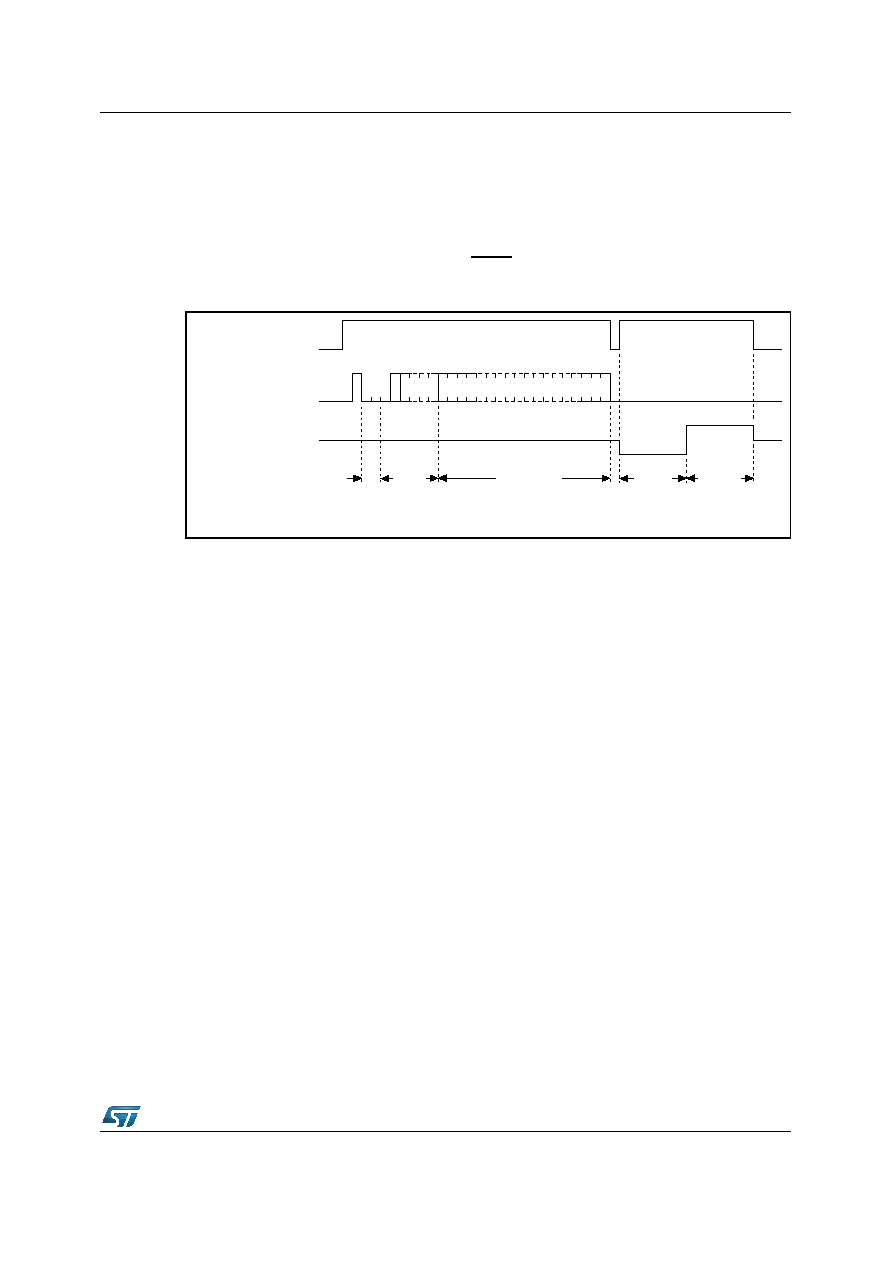

Figure 5. WRAL sequence

1. For the meanings of Xn and Dn, please see Table 4, Table 5 and Table 6.

AI00880C

S

WRITE

ALL

DATA IN

D

Q

ADDR

OP

CODE

Dn

D0

BUSY

READY

CHECK

STATUS

1

0 0

0

1 Xn X0
