EM260
Page 43
120-0260-000M Rev 1.1
11 Part Marking

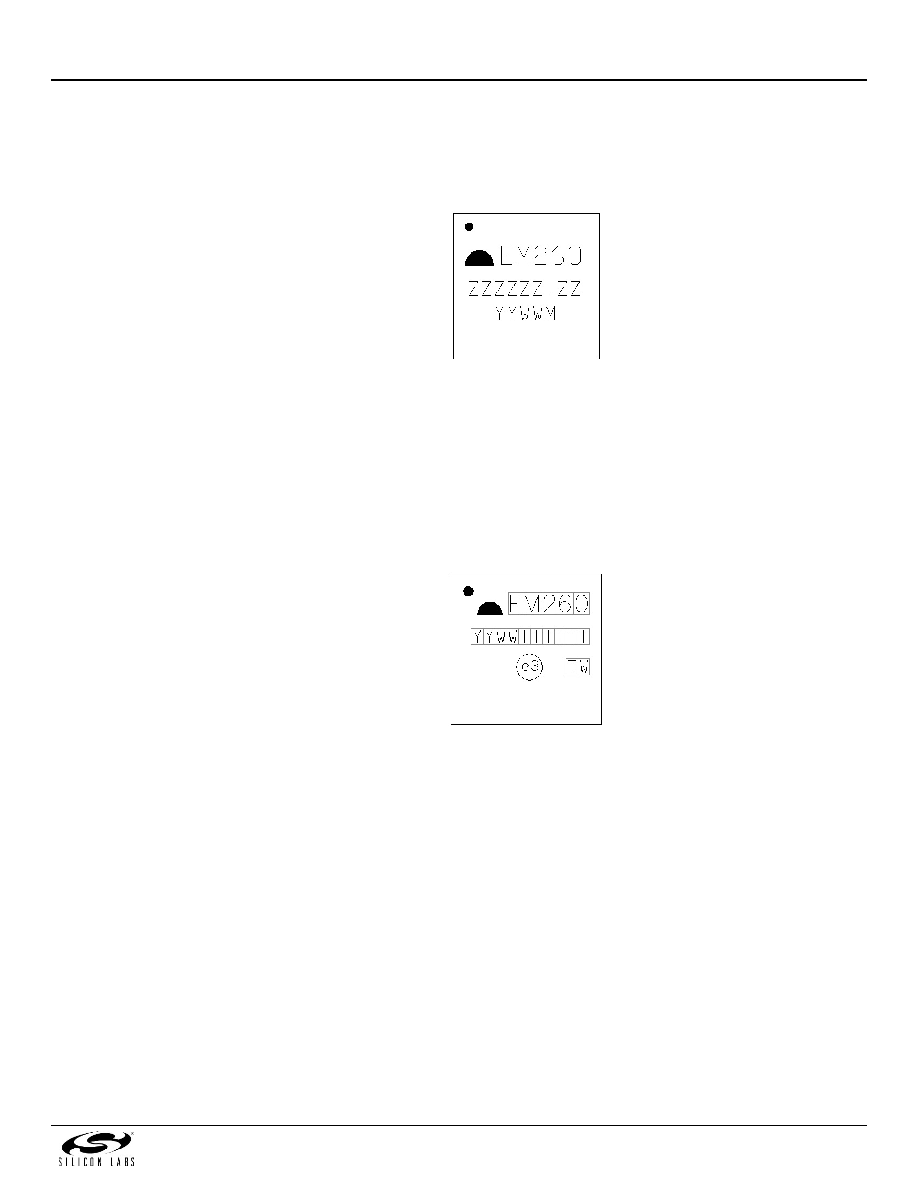

The EM260 part marking is shown in Figure 20 and Figure 21. The circle in the top left corner indicates Pin 1.
Pins are numbered counter-clockwise from Pin 1, 10 pins per package edge.
Figure 20. Stats Chippac Malaysia Part marking for EM260
ZZZZZZ.ZZ defines the production lot code
YYWW defines the year and week assembled
M indicates Malaysia is the country of origin.
Figure 21. ASE Chung Li Part marking for EM260
YYWW defines the year and week assembled
TTTTTT defines the manufacturing code
e3 is the logo for 100% Sn (tin finish lead free) part
TW indicates Taiwan is the country of origin.
