Power consumption comparison

33

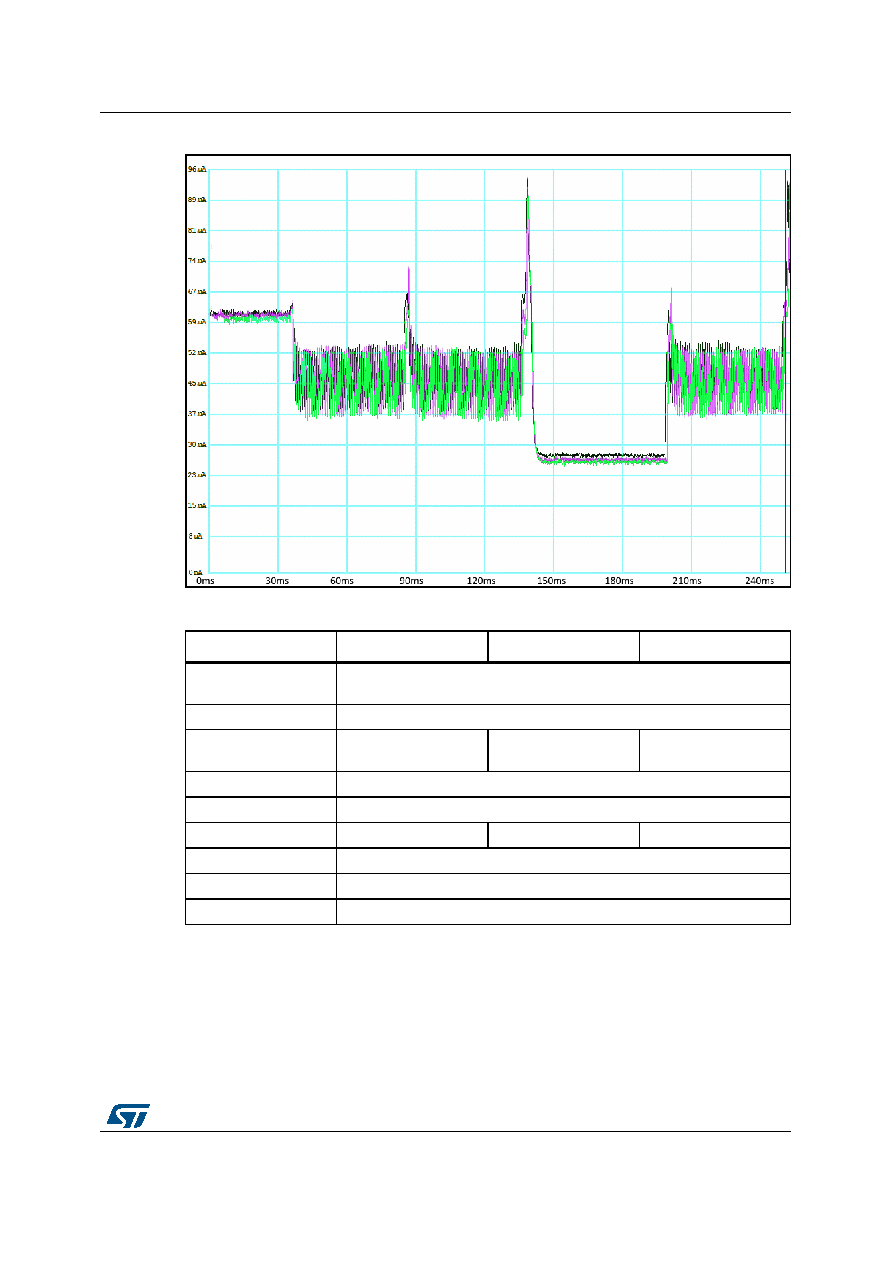

Figure 8. Three different settings of peripheral clock divider

The power trace of the DMA operated example is different from the interrupt or blocking

mode code execution. There is a peak in half of the transmission, caused by the half

message interrupt. Then for half of the reply data reception the core stays in Sleep mode, it

is only active during the second half. Different arrangement is of course possible.

Table 10. Configurations - Clock divider

Curve in Figure 8

Black

Purple

Green

Idle mode between

transmissions

Stop

JTAG interface

OFF

Current average

over phases 2, 3 and 4

9.42 µA

9.16 µA

9.08 µA

Clock

250 kHz MSI

Voltage regulator

Range 3

AHB/APB ratio

1/1

1/4

1/8

ULP/FWU

+/+

Baud rate

9600

SW used

DMA operation (Com DMA)
