LP38853
www.ti.com
SNVS335D – DECEMBER 2006 – REVISED APRIL 2013
Typical Performance Characteristics (continued)
Refer to the Typical Application Circuit. Unless otherwise specified: TJ = 25°C, R1 = 1.40 kΩ, R2 = 1.00 kΩ, CFF= 0.01 µF, VIN
= VOUT(NOM) + 1V, VBIAS = 3.0V, IOUT = 10 mA, CIN = 10 µF Ceramic, COUT = 10 µF Ceramic, CBIAS = 1 µF Ceramic, , CSS =
Open.

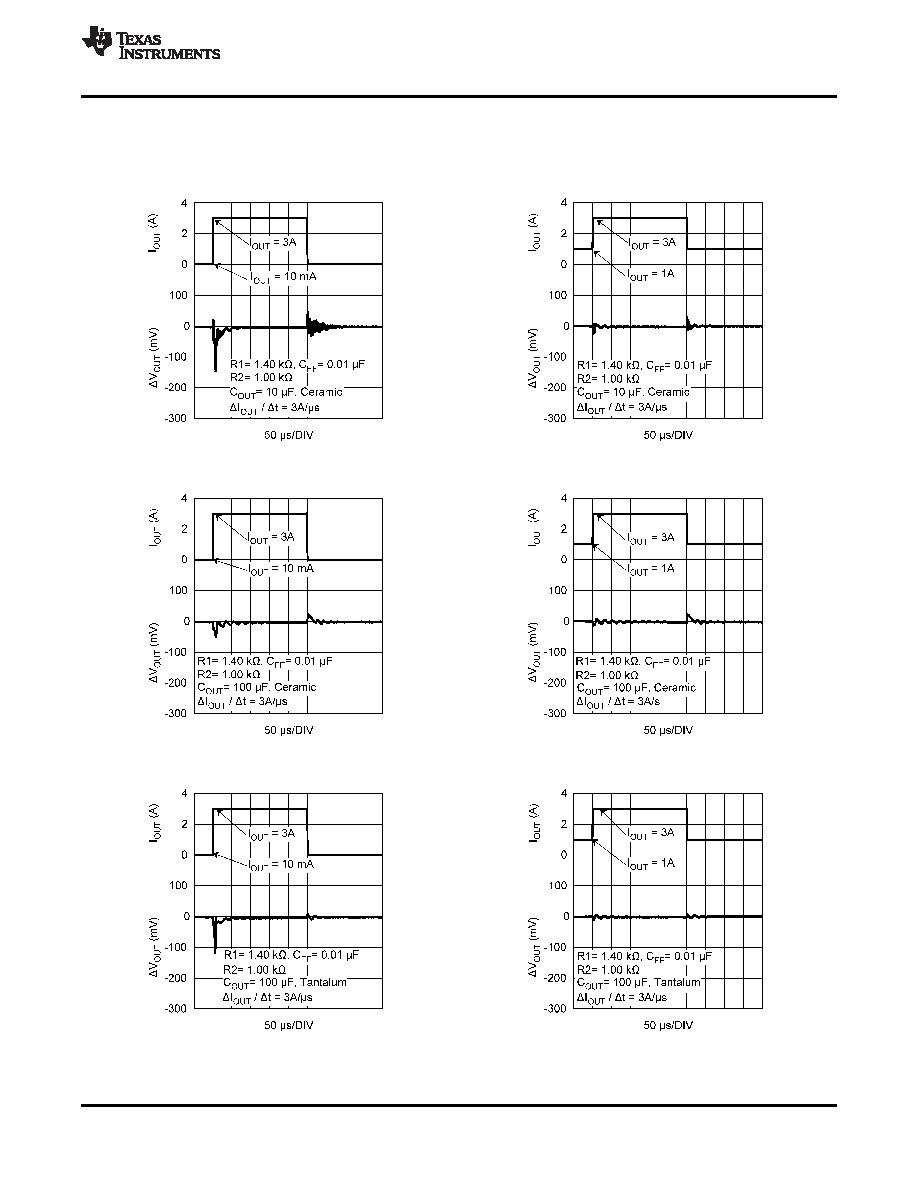

Load Transient Response, COUT = 10 µF Ceramic
Load Transient Response, COUT = 10 µF Ceramic
Figure 22.
Figure 23.
Load Transient Response, COUT = 100 µF Ceramic
Load Transient Response, COUT = 100 µF Ceramic
Figure 24.
Figure 25.
Load Transient Response, COUT = 100 µF Tantalum
Load Transient Response, COUT = 100 µF Tantalum
Figure 26.
Figure 27.
Copyright © 2006–2013, Texas Instruments Incorporated
Submit Documentation Feedback
9
Product Folder Links: LP38853
