E5AZ/E5EZ

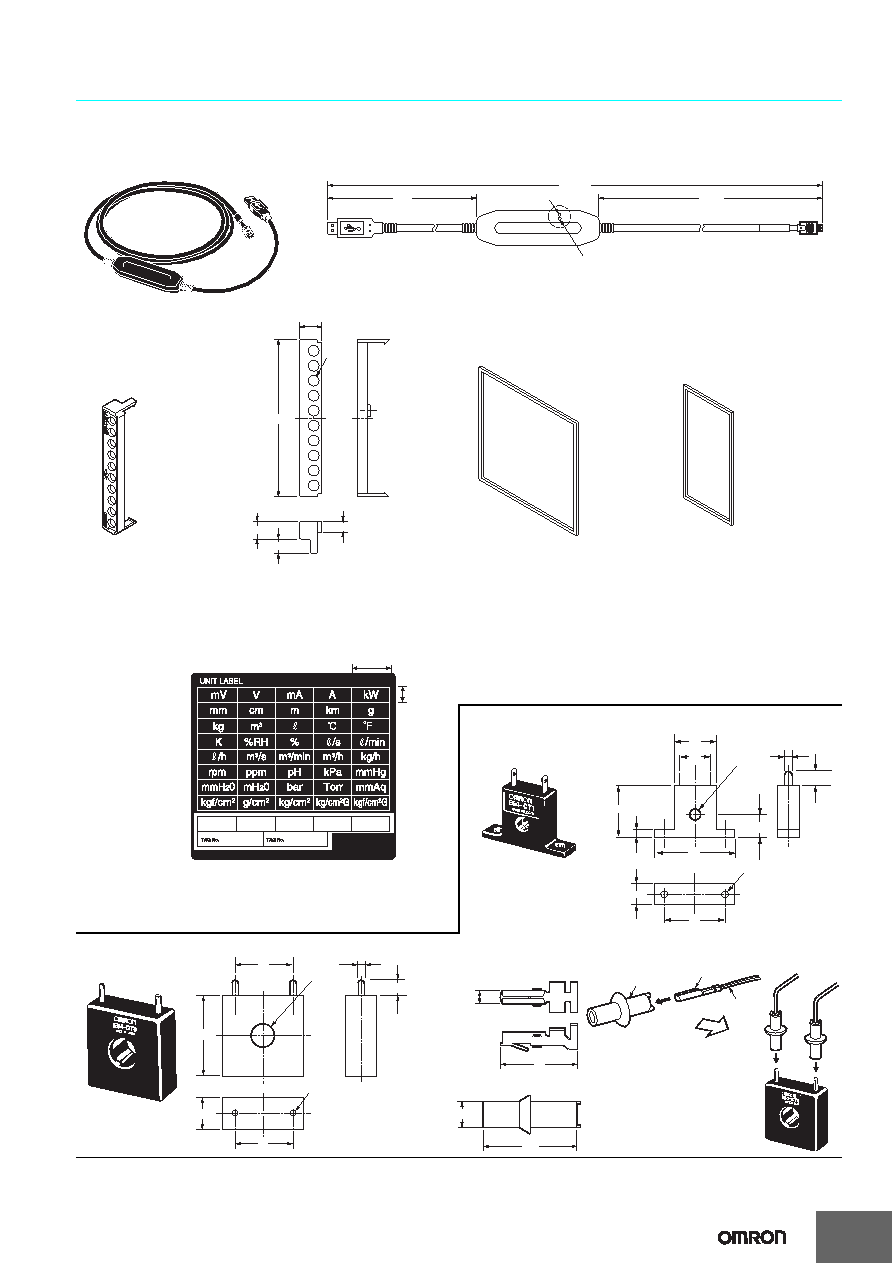

Accessories

USB-Serial Conversion Cable (Order Separately)

Unit Labels (Order Separately)

Current Transformers (Order Separately)

(2,100)

250

1,765

USB connector (type A plug)

Serial connector

LED indicator (RD)

LED indicator (SD)

E58-CIFQ1

92.3

6.5 dia.

10.5

6.5

Terminal Covers

E53-COV11

(Two Covers provided.)

(Order Separately)

Waterproof Packing

Y92S-P4 (for DIN 96

× 96)

Y92S-P5 (for DIN 48

× 96)

Order the Waterproof Packing separately if it becomes lost or damaged.

The Waterproof Packing can be used to achieve an IP66 (indoor use) degree

of protection.

(Deterioration, shrinking, or hardening of the waterproof packing may occur

depending on the operating environment. Therefore, periodic replacement is

recommended to ensure the level of waterproofing specified in IP66 (indoor

use). The time for periodic replacement depends on the operating environ-

ment. Be sure to confirm this point at your site. Consider one year a rough

standard. OMRON shall not be liable for the level of water resistance if the

customer does not perform periodic replacement.)

The Waterproof Packing does not need to be attached if a waterproof structure

is not required.

4.8

11.8

Y92S-L1 Type

5.8 dia.

10.5

2.8

7.5

Two, 3.5 dia.

E54-CT1

× 40

12 dia.

2.36 dia.

Two, M3 (depth: 4)

Approx. 3 dia.

(22)

Approx. 6 dia.

Plug

Armature

Lead

E54-CT3

E54-CT3 Accessory

•Armature

•Plug

Connection Example
