EM359x

Rev 1.0

6.2. Part Marking

Figure 6.4 shows the part marking for the EM359x Series. The circle in the top corner indicates Pin 1. Pins are

numbered counter-clockwise from Pin 1 with 14 pins per package edge.

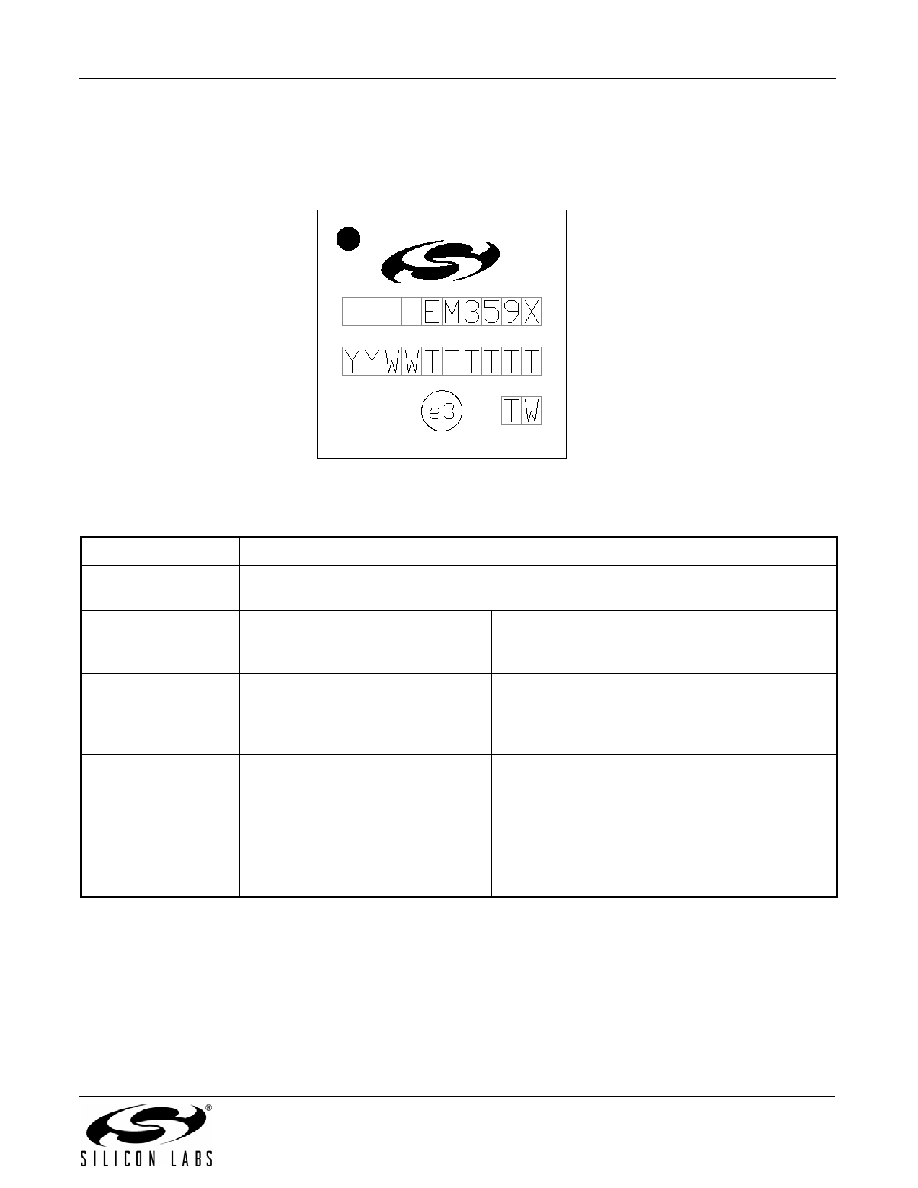

Figure 6.4. Part Marking for EM359x

Table 6.4. 56-Pin QFN Top Marking Explanation

Mark Method:

Laser

Pin 1 Marking:

Circle = 0.40 mm Diameter

(Top-Left Justified)

Line 1 Marking:

Device Part Number

Right Justified

EM359x

EM359x is the Orderable Part Number variant

(EM3591/2/5/6/7/8)

Line 2 Marking:

TTTTTT = Mfg Code

YY=Year

WW-Work Week

Manufacturing Code from the Assembly Purchase

form. Assigned by the Assembly House. Corre-

sponds to the year and work week.

Right Justified

Line 3 Marking:

Circle = 1.3 mm Diameter

Center Justified

Country of Origin

ISO abbreviation

Right Justified

“e3” indicates Lead-Free terminal finish
