TMS320C31, TMS320LC31

DIGITAL SIGNAL PROCESSORS

SPRS035B – MARCH 1996 – REVISED JANUARY 1999

POST OFFICE BOX 1443

• HOUSTON, TEXAS 77251–1443

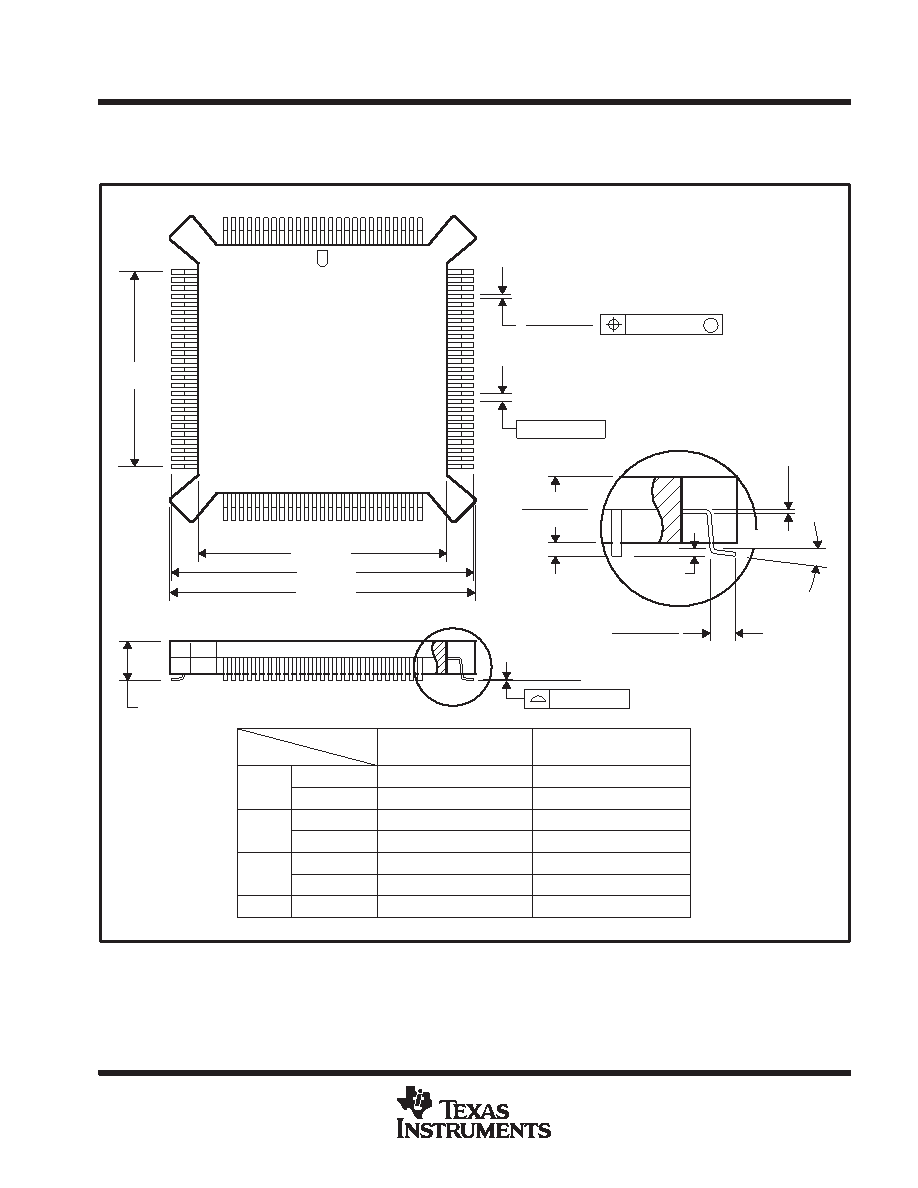

MECHANICAL DATA

PQ (S-PQFP-G***)

PLASTIC QUAD FLATPACK

100 LEAD SHOWN

0.012 (0,30)

0.008 (0,20)

0.025 (0,635)

Seating Plane

132

1.090 (27,69)

1.070 (27,18)

0.966 (24,54)

0.934 (23,72)

1.112 (28,25)

1.088 (27,64)

0.800 (20,32)

4040045 / C 11/95

100

”D2” SQ

”D1” SQ

”D” SQ

”D3” SQ

DIM

”D”

”D2”

”D3”

”D1”

NOM

MIN

MAX

MIN

MAX

MIN

MAX

LEADS ***

0.180 (4,57) MAX

100

0.890 (22,61)

0.870 (22,10)

0.766 (19,46)

0.734 (18,64)

0.912 (23,16)

0.888 (22,56)

0.600 (15,24)

0.004 (0,10)

0.006 (0,15)

0.010 (0,25)

0.020 (0,51) MIN

0.130 (3,30)

0.150 (3,81)

0.006 (0,16) NOM

Gage Plane

0.036 (0,91)

0.046 (1,17)

°–8°

NOTES: A. All linear dimensions are in inches (millimeters).

B. This drawing is subject to change without notice.

C. Falls within JEDEC MO-069
