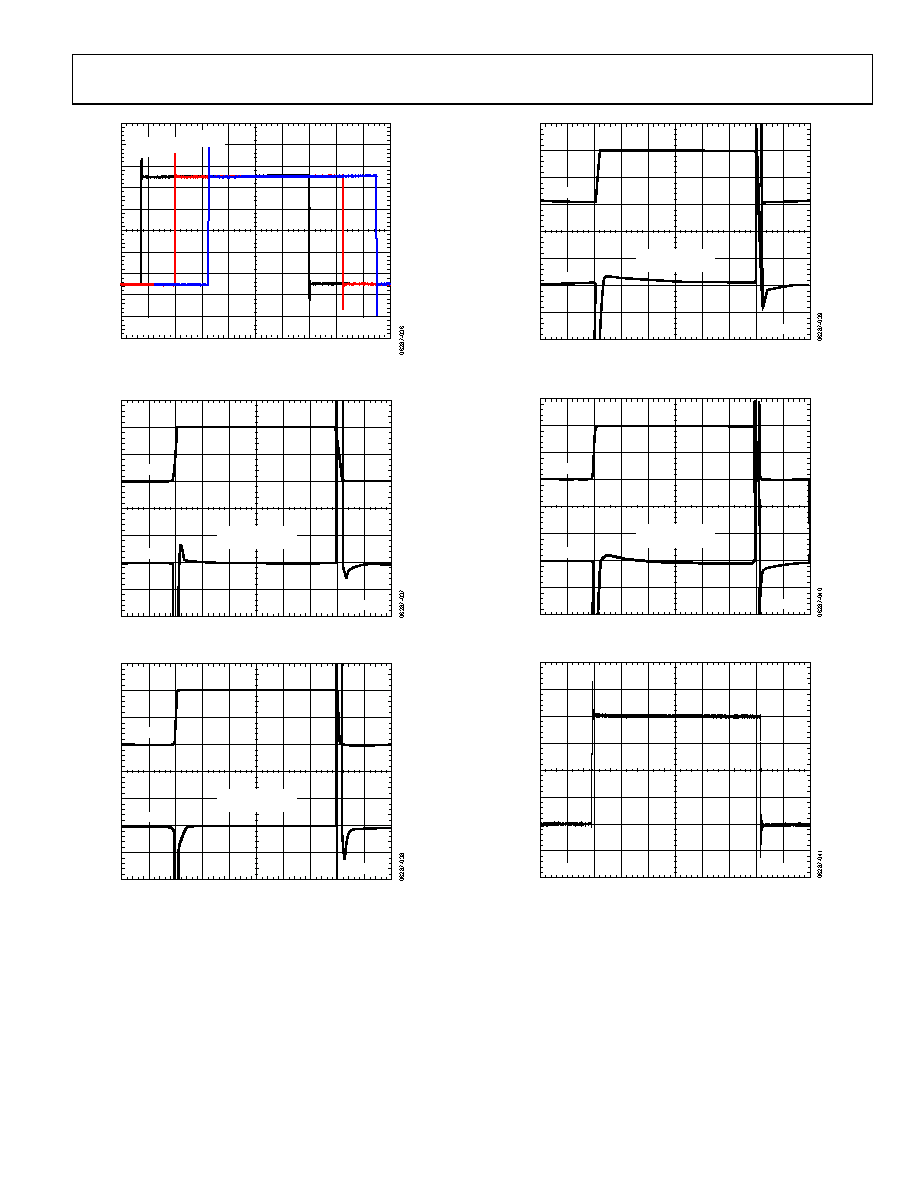

14 / 25 page  AD8251 Rev. B | Page 13 of 24 2µs/DIV 20mV/DIV NO LOAD 47pF 100pF Figure 36. Small Signal Pulse Response for Various Capacitive Loads 5V/DIV 2µs/DIV 0.002%/DIV 585ns TO 0.01% 723ns TO 0.001% Figure 37. Large Signal Pulse Response and Settling Time, G = 1, RL = 10 kΩ 5V/DIV 2µs/DIV 0.002%/DIV 400ns TO 0.01% 600ns TO 0.001% Figure 38. Large Signal Pulse Response and Settling Time, G = 2, RL = 10 kΩ 5V/DIV 2µs/DIV 0.002%/DIV 376ns TO 0.01% 640ns TO 0.001% Figure 39. Large Signal Pulse Response and Settling Time, G = 4, RL = 10 kΩ 5V/DIV 2µs/DIV 0.002%/DIV 364ns TO 0.01% 522ns TO 0.001% Figure 40. Large Signal Pulse Response and Settling Time, G = 8, RL = 10 kΩ 25mV/DIV 2µs/DIV Figure 41. Small Signal Response, G = 1, RL = 2 kΩ, CL = 100 pF |
|
|
