DocID17977 Rev 2
39/46
ST1S14

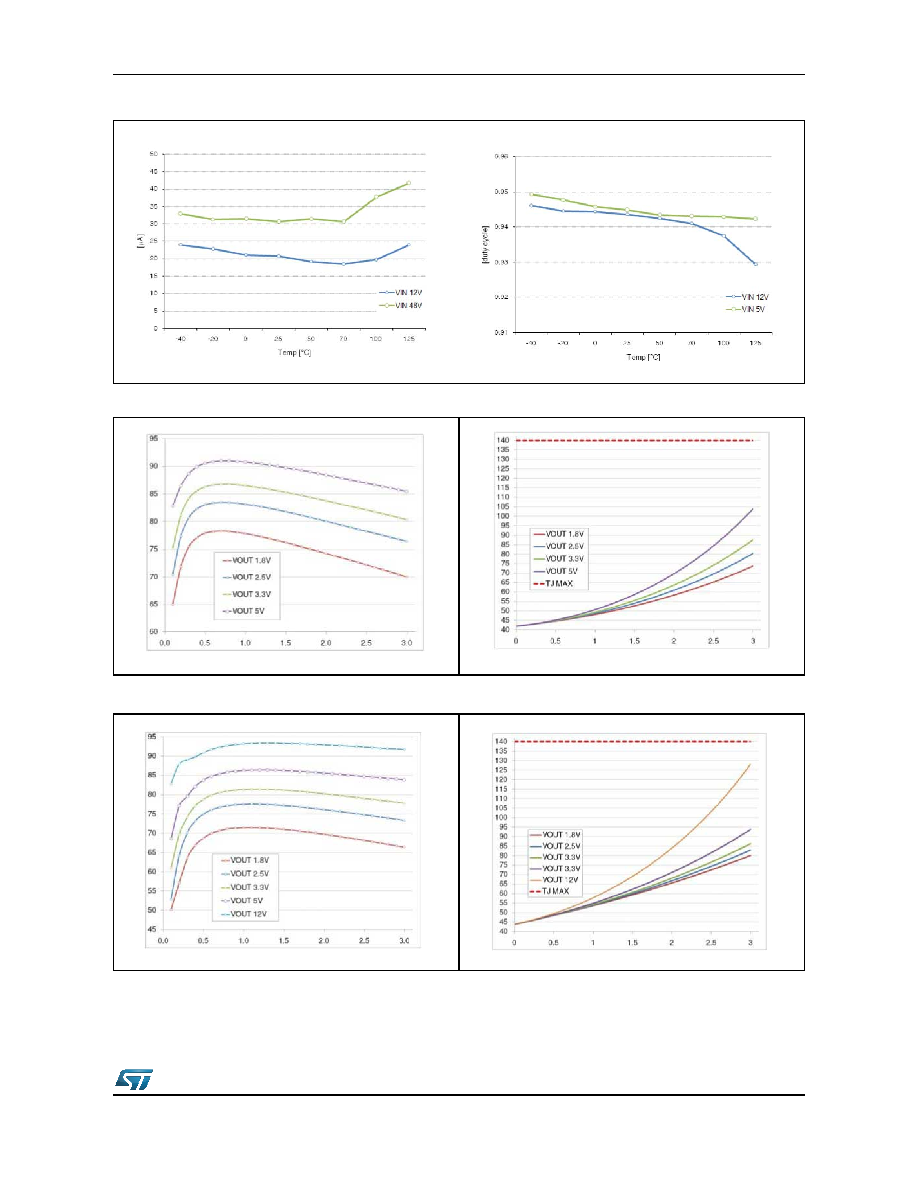

Typical characteristics
Figure 34. Shutdown current vs. temperature
Figure 35. Duty cycle max vs. temperature
Figure 36. Efficiency vs. IOUT (VIN 12 V)
Figure 37. TJ vs. IOUT (VIN 12 V)
Figure 38. Efficiency vs. IOUT (VIN 24 V)
Figure 39. TJ vs. IOUT (VIN 24 V)
