QPD1025L
1500 W, 65 V, 1.0
– 1.1 GHz, GaN RF Input-Matched Transistor
Datasheet Rev. B
│ Subject to change without notice
- 6 of 18 -
www.qorvo.com

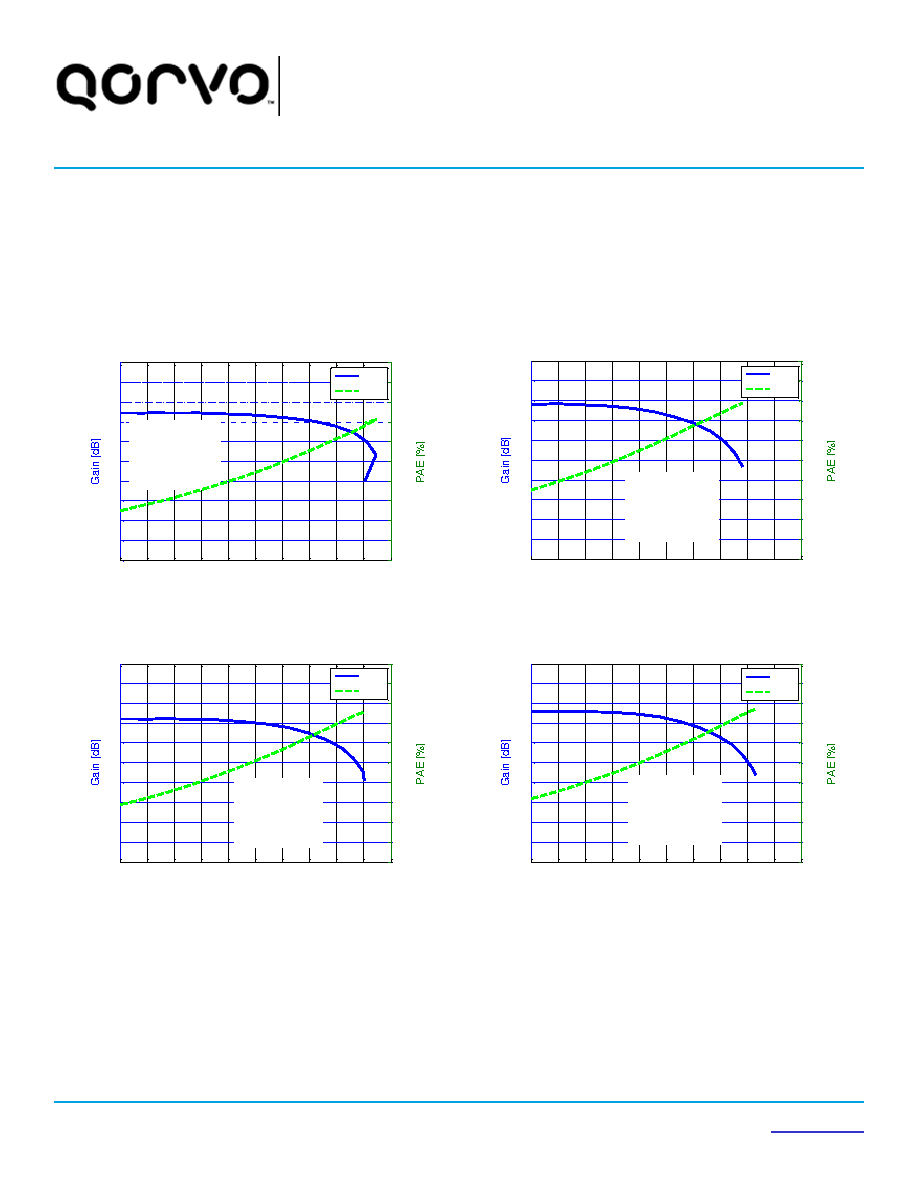

Typical Measured Performance
– Load-Pull Drive-up 1, 2
Notes:
1.
Test Conditions: VD = 65 V, IDQ = 750 mA, 100 us Pulse Width, 10% Duty Cycle, Temp = 25°C.
2.
The performance shown below is for only half of the device out of the two independent amplification paths.
3.
See page 13 for load pull reference planes where the performance was measured.
50
51
52
53
54
55
56
57
58
59
60
15
16
17
18
19
20
21
22
23
24
25
Output Power [dBm]
Gain and PAE vs. Output Power
1.0 GHz - Power Tuned
Zs-fo = 0.72-1.76i
Zs-2fo = 0.47+0.06i
Zs-3fo = 0.81+0.5i
Zl-fo = 2.31+0.392i
Zl-2fo = 0.79+0.69i
Zl-3fo = NaN
50
51
52
53
54
55
56
57
58
59
60
0
10
20
30
40
50
60
70
80
90
100
Gain
PAE
50
51
52
53
54
55
56
57
58
59
60
15
16
17
18
19
20
21
22
23
24
25
Output Power [dBm]
Gain and PAE vs. Output Power
1.0 GHz - Efficiency Tuned
Zs-fo = 0.72-1.76i
Zs-2fo = 0.47+0.06i
Zs-3fo = 0.81+0.5i
Zl-fo = 2.863+2.045i
Zl-2fo = 0.79+0.69i
Zl-3fo = NaN
50
51
52
53
54
55
56
57
58
59
60
0
10
20
30
40
50
60
70
80
90
100
Gain
PAE
50
51
52
53
54
55
56
57
58
59
60
15
16
17
18
19
20
21
22
23
24
25
Output Power [dBm]
Gain and PAE vs. Output Power
1.1 GHz - Power Tuned
Zs-fo = 0.94-2.29i
Zs-2fo = 0.47-0.06i
Zs-3fo = 0.52+0.8i
Zl-fo = 2.53+0.746i
Zl-2fo = 0.8+0.69i
Zl-3fo = NaN
50
51
52
53
54
55
56
57
58
59
60
0
10
20
30
40
50
60
70
80
90
100
Gain
PAE
50
51
52
53
54
55
56
57
58
59
60
15
16
17
18
19
20
21
22
23
24
25
Output Power [dBm]
Gain and PAE vs. Output Power
1.1 GHz - Efficiency Tuned
Zs-fo = 0.94-2.29i
Zs-2fo = 0.47-0.06i
Zs-3fo = 0.52+0.8i
Zl-fo = 2.221+1.322i
Zl-2fo = 0.8+0.69i
Zl-3fo = NaN
50
51
52
53
54
55
56
57
58
59
60
0
10
20
30
40
50
60
70
80
90
100
Gain
PAE
