Digital Controller

E5AK/E5EK

Input Shift

When temperature input is selected, scaling is not required. This is

because input is treated as the “temperature” as it is matched to the

input type. However, note that the upper- and lower-limit values of the

sensor can be shifted. For example, if both the upper- and lower-limit

values are shifted by 1.2

°C, the process value (before shift) is

regarded as 201.2

°C after shift when input is 200°C before shift.

To set the input shift, set shift values in the “input shift upper limit”

and “input shift lower limit” parameters (level 2 mode).

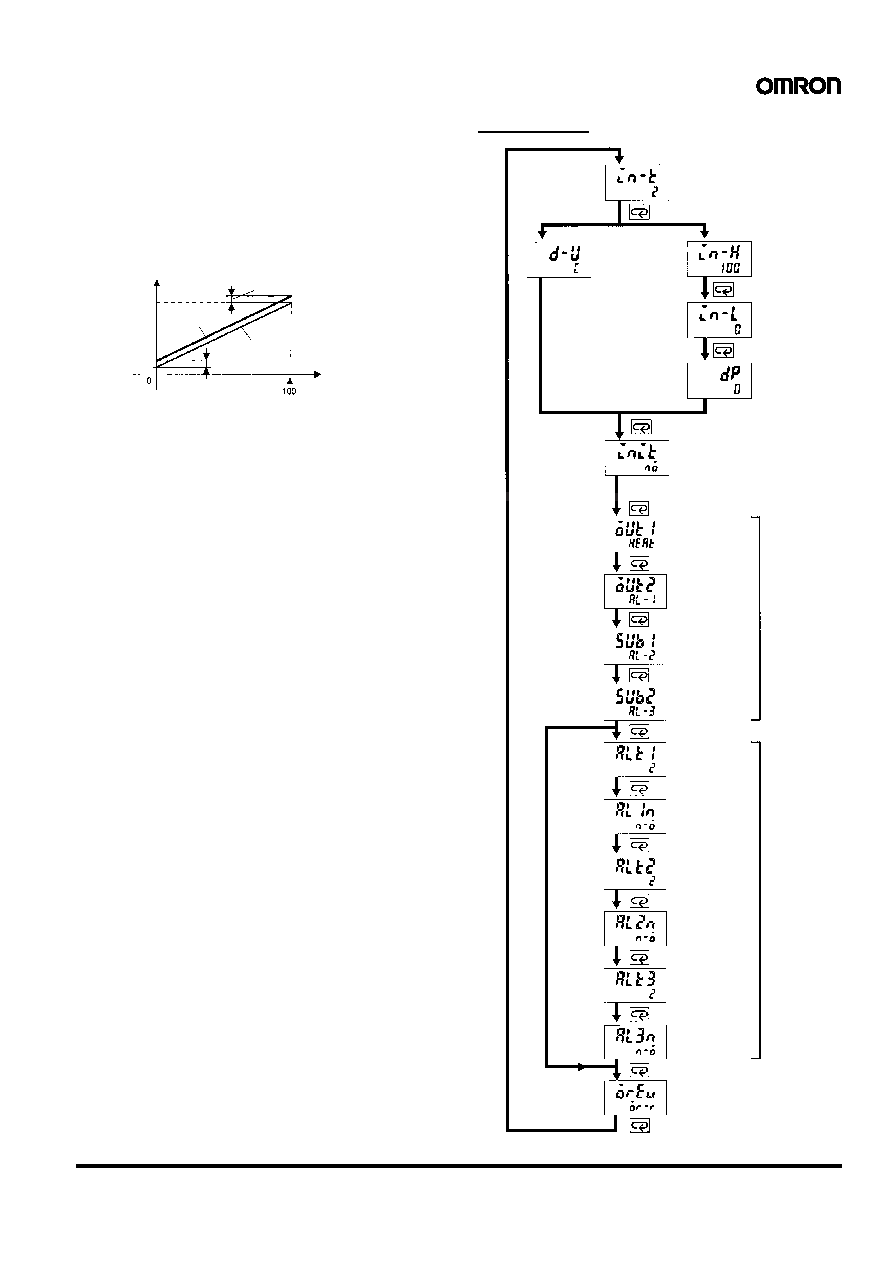

Setup Mode

Temperature

Upper limit

Upper-limit compensation value

Before compensation

Lower limit

Input (% of full scale)

After

compensation

Lower-limit

compensation value

Input type

Temperature input

Current/Voltage input

Decimal point

Parameter initialize

Alarm 1 type

Alarm 2 type

Alarm 3 type

Alarm type

°C/°F

selection

Scaling

upper limit

Scaling

lower limit

Control output 1

assignment (Not

displayed by the

@K-PRR2)

Control output 2

assignment (Not

displayed by the

@K-PRR2)

Auxiliary output 1

assignment

Auxiliary output 2

assignment

Output

assignment

Alarm

1, 2, or

3 is not

set.

Alarm 1

open in

alarm

Alarm 2

open in

alarm

Alarm 3

open in

alarm

Direct/Reverse

operation
