Digital Controller

E5AK/E5EK

Peripheral Devices

■ SSR

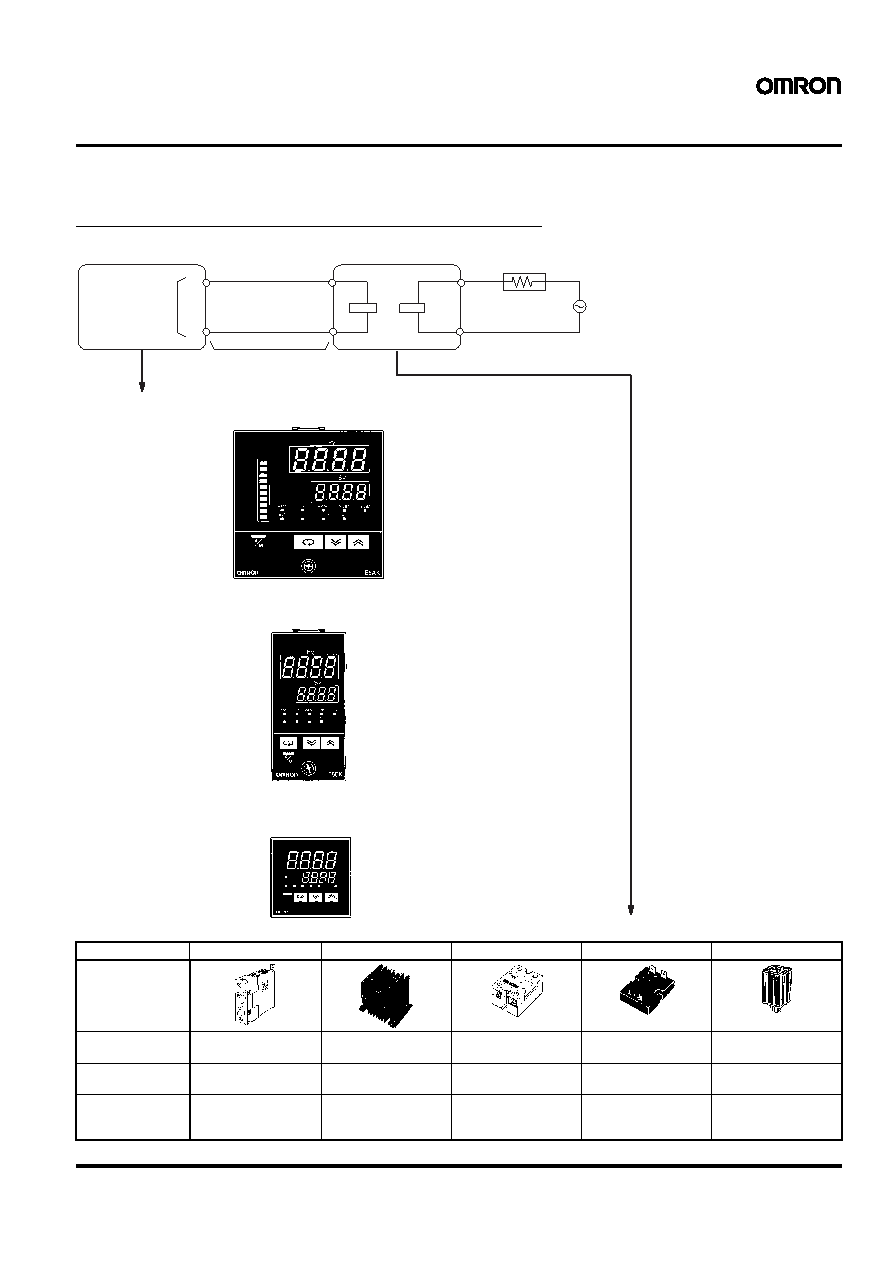

Connection Example of Digital Controller and SSR

Model

G3PA

G3NH

G3NA

G3NE

G3B

Appearance

SSRs connected in

parallel

E5AK/E5EK: 8 pcs.

E5CK:

4 pcs.

E5AK/E5EK: 8 pcs.

E5CK:

4 pcs.

E5AK/E5EK: 5 pcs.

E5CK:

2 pcs.

E5AK/E5EK: 2 pcs.

E5CK:

1 piece

E5AK/E5EK: 5 pcs.

E5CK:

2 pcs.

Rated input volt-

age

5 to 24 VDC

12 VDC

5 to 24 VDC

Features

Thin, monoblock con-

struction with heat sink

For high-power heater

control

Standard model with

screw terminals

Compact, low-cost

model with tab termi-

nals

Socket, model with 5-A

switching capacity

−

Digital Controller

Connectable

Load

Heater

Power SSR

SSR

See the following table.

INPUT

LOAD

E5AK/E5EK

E5CK

Voltage output

terminal (for driv-

ing SSR)

Power supply

for load

Digital Controller with

Voltage Output

(12 VDC, 40 mA max.)

Digital Controller with

Voltage Output

(12 VDC, 20 mA max.)
