Isolation, Leakage, Power Conversion Loss, Input IP3, and SSB Noise Figure

otherwise noted.

40

45

50

55

60

65

70

300

400

500

600

700

800

900

1000

1100

RF FREQUENCY (MHz)

–40°C

+25°C

+85°C

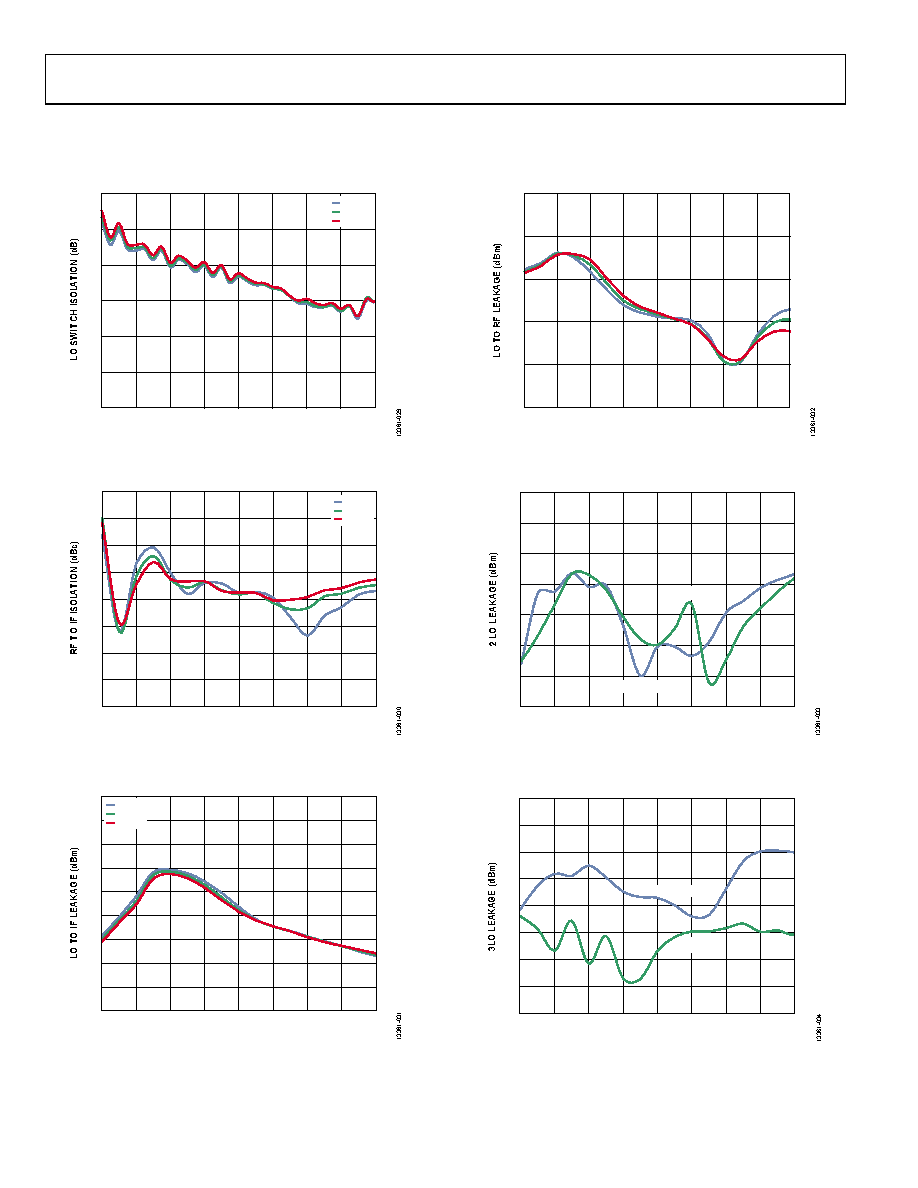

Figure 28. LO Switch Isolation vs. RF Frequency

–70

–65

–60

–55

–50

–45

–40

–35

–30

300

400

500

600

700

800

900

1000

1100

RF FREQUENCY (MHz)

–40°C

+25°C

+85°C

Figure 29. RF to IF Isolation vs. RF Frequency

–45

–40

–35

–30

–25

–20

–15

–10

–5

0

393

493

593

693

793

893

993

1093

1193

LO FREQUENCY (MHz)

–40°C

+25°C

+85°C

Figure 30. LO to IF Leakage vs. LO Frequency

–45

–40

–35

–30

–25

–20

393

493

593

693

793

893

993

1093

1193

LO FREQUENCY (MHz)

Figure 31. LO to RF Leakage vs. LO Frequency

–55

–50

–45

–40

–35

–30

–25

–20

393

493

593

693

793

893

993

1093

1193

LO FREQUENCY (MHz)

2LO TO RF

2LO TO IF

Figure 32. 2LO Leakage vs. LO Frequency

–60

–55

–50

–45

–40

–35

–30

–25

–20

393

493

593

693

793

893

993

1093

1193

LO FREQUENCY (MHz)

3LO TO RF

3LO TO IF

Figure 33. 3LO Leakage vs. LO Frequency
