Data Sheet
ADL5369
Rev. A | Page 15 of 23
UPCONVERSION CHARACTERISTICS
TA = 25°C, fIF = 93 MHz, fLO = 543 MHz, LO power = 0 dBm, RF power = 0 dBm, VGS0 = VGS1 = 0 V, R9 = 1.7 kΩ, and ZO = 50 Ω, unless
otherwise noted.
0
2
4
6
8
10
12
14
16
300
400
500
600
700
800
900
1000
1100
RF FREQUENCY (MHz)
–40°C
+25°C
+85°C

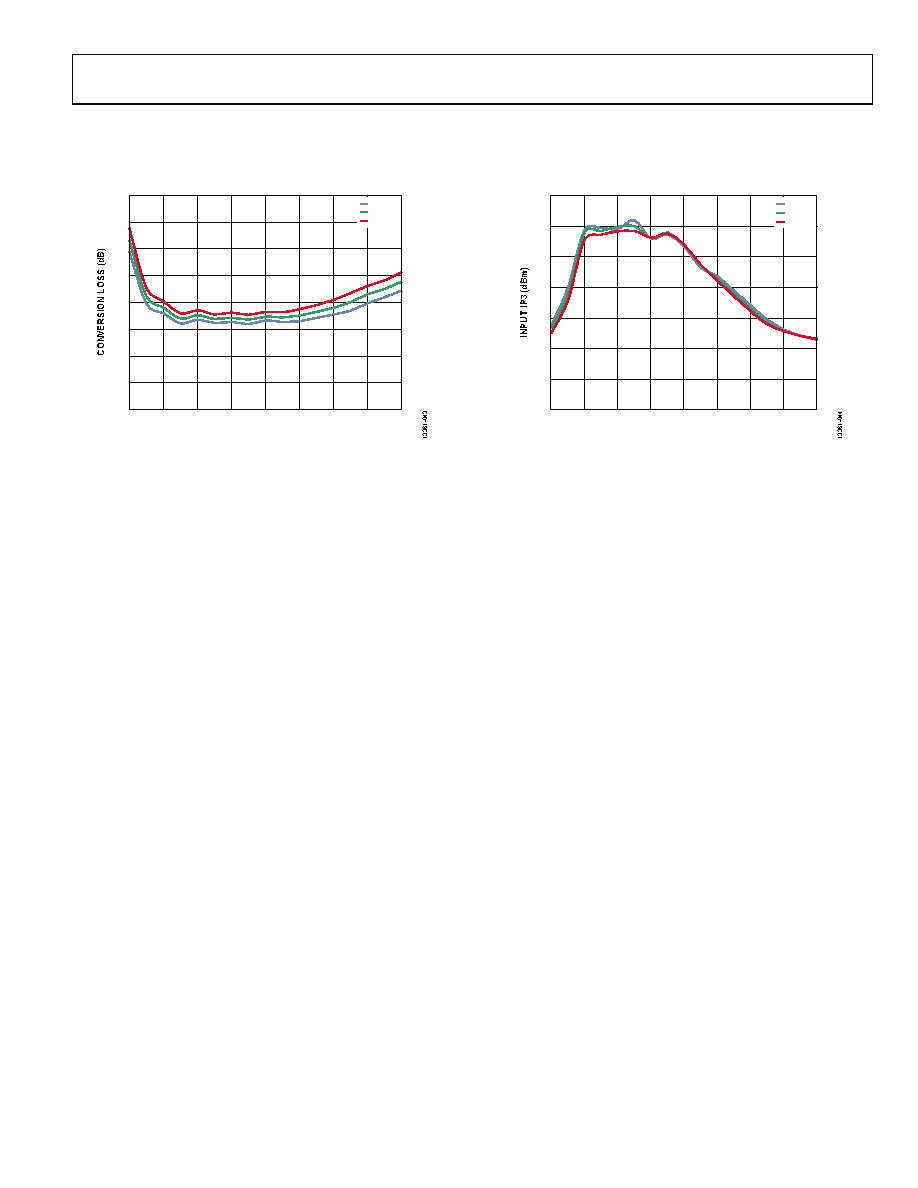

Figure 42. Power Conversion Loss vs. RF Frequency, VS = 5 V, Upconversion
0
5
10
15
20
25
30
35
300
400
500
600
700
800
900
1000
1100
RF FREQUENCY (MHz)
–40°C
+25°C
+85°C
Figure 43. Input IP3 vs. RF Frequency, VS = 5 V, Upconversion
