FT800 Embedded Video Engine Datasheet

Version 1.4

Document No.: BRT_000039 Clearance No.: BRT#001

4 Function Description

The FT800 is a single chip, embedded graphic controller with the following function blocks:



Serial Host Interface



System Clock



Graphics Engine



Parallel RGB video interface



Audio Engine



Touch-screen Engine



Power Management

The functions for each block are briefly described in the following subsections.

4.1 Serial Host Interface

The FT800 uses a standard serial interface to communicate with most types of microcontrollers and

microprocessors. The interface mode is configurable by pull down for SPI and pull up for I²C on pin 10

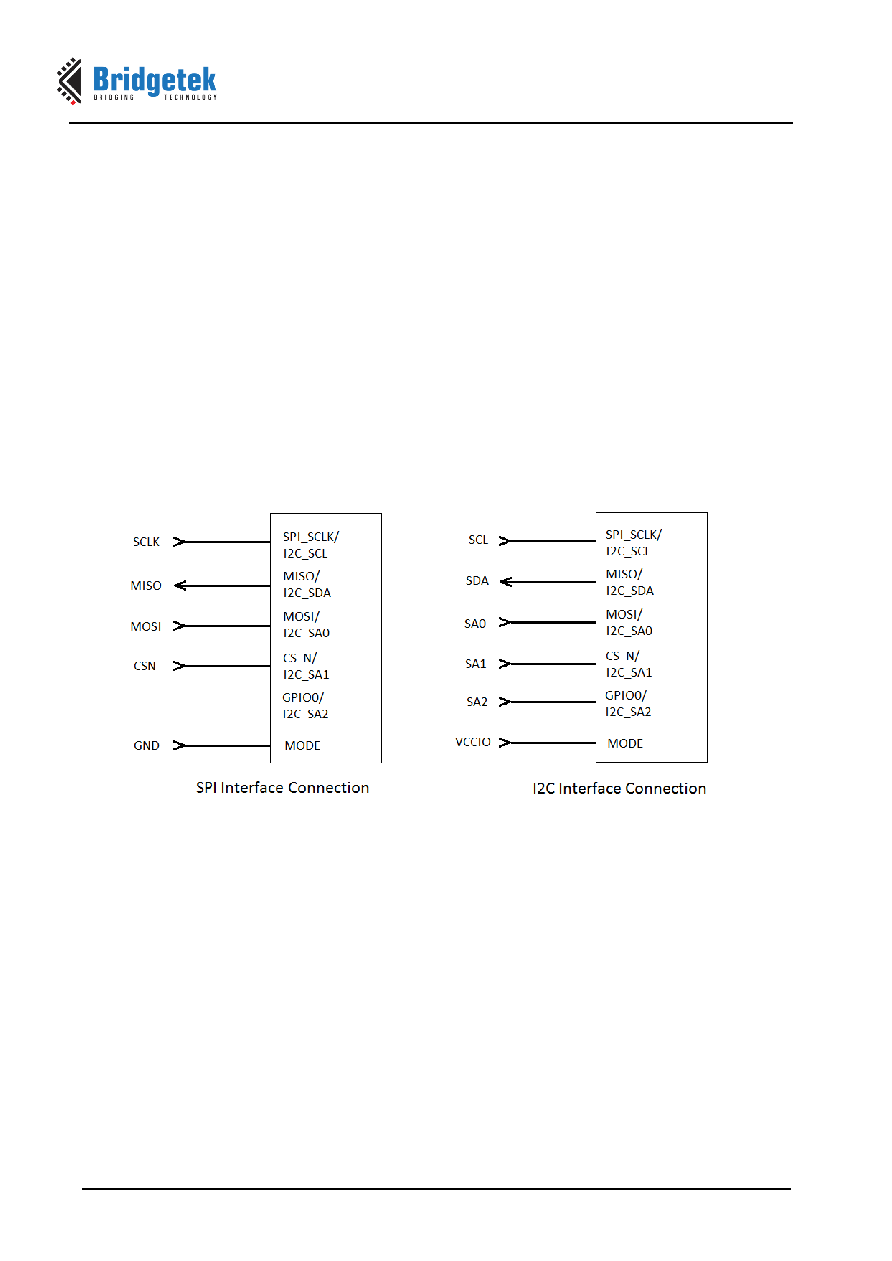

(MODE). Figure 4-1 shows the two alternative mode connections.

Figure 4-1 Host Interface Options
