Copyright © Bridgetek Pte Ltd
11
FT800 Embedded Video Engine Datasheet
Version 1.4
Document No.: BRT_000039 Clearance No.: BRT#001

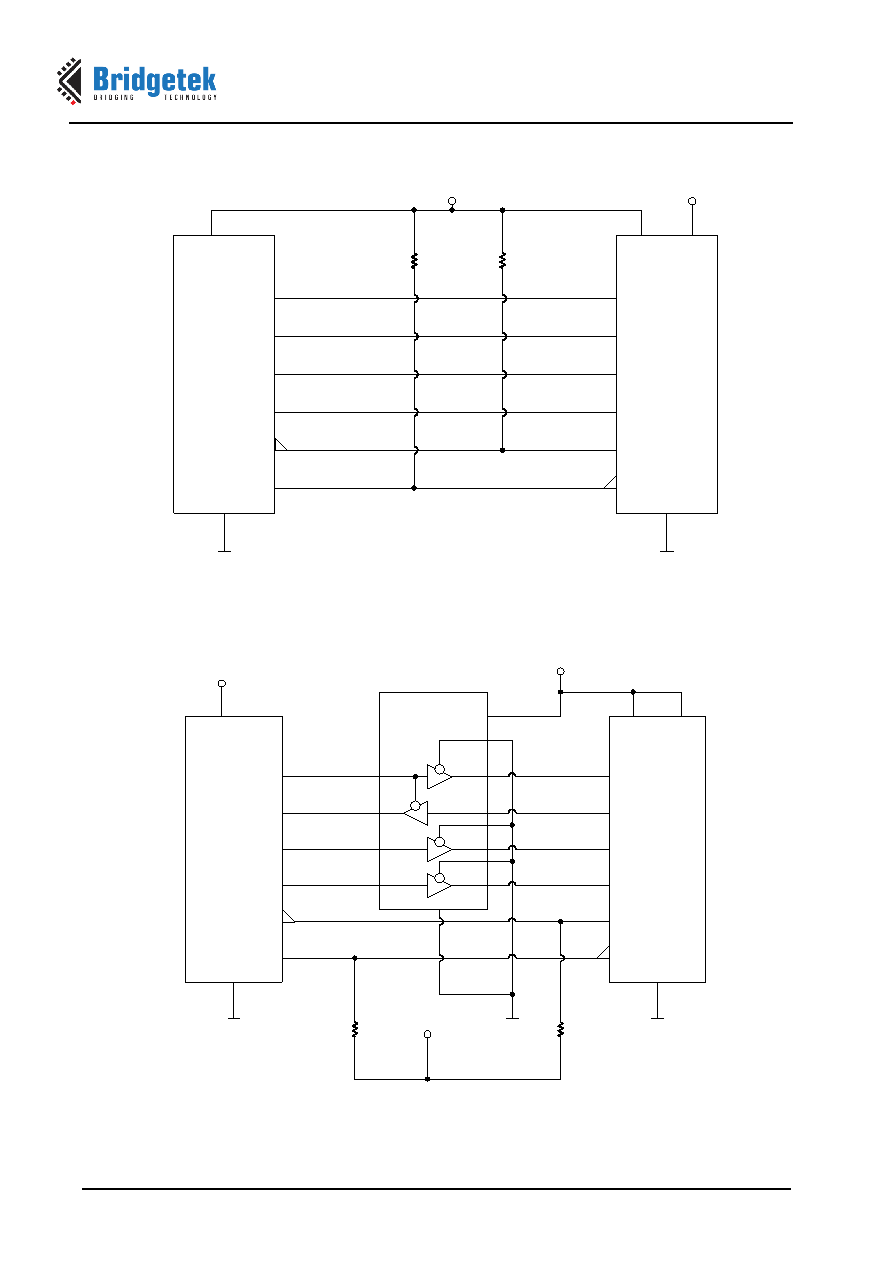

Figure 4-2 illustrates a direct connection to a 1.8-3.3V IO MPU/MCU.
Figure 4-2 SPI Interface 1.8-3.3V connection
Figure 4-3 illustrates the FT800 connected to a 5V IO MPU/MCU. The 74LCX125 logic buffer can tolerate
5V signal from the MPU/MCU, and the FT800 input signals are limited to 3.3V.
Figure 4-3 SPI Interface 5V connection
GND
GND
CS_N
MISO
MOSI
SCLK
PD_N
INT_N
CS_N
MISO
MOSI
SCLK
PD_N
INT_N
FT800
1.8-3.3V
Vio
3.3V
VCC
4.7k
4.7k
MPU/MCU
3.3V
GND
5V
GND
GND
CS_N
MISO
MOSI
SCLK
PD_N
INT_N
CS_N
MISO
MOSI
SCLK
PD_N
INT_N
FT800
MPU/MCU
74LCx125
3.3V
Vio
VCC
4.7K
4.7K
