Signal description

2.1

Serial clock (SCL)

The signal applied on the SCL input is used to strobe the data available on SDA(in) and to output the data on

SDA(out).

2.2

Serial data (SDA)

SDA is an input/output used to transfer data in or data out of the device. SDA(out) is an open drain output

that may be wired-AND with other open drain or open collector signals on the bus. A pull-up resistor must be

connected (Figure 12 and Figure 13 indicate how to calculate the value of the pull-up resistor).

2.3

Chip enable (E2)

This input signal is used to set the value that is to be looked for on the least significant bit b3 of the 7-bit device

select code. This input must be tied to VCC or VSS, to establish the device select code as shown in Figure 4.

When not connected (left floating), this input is read as low (0).

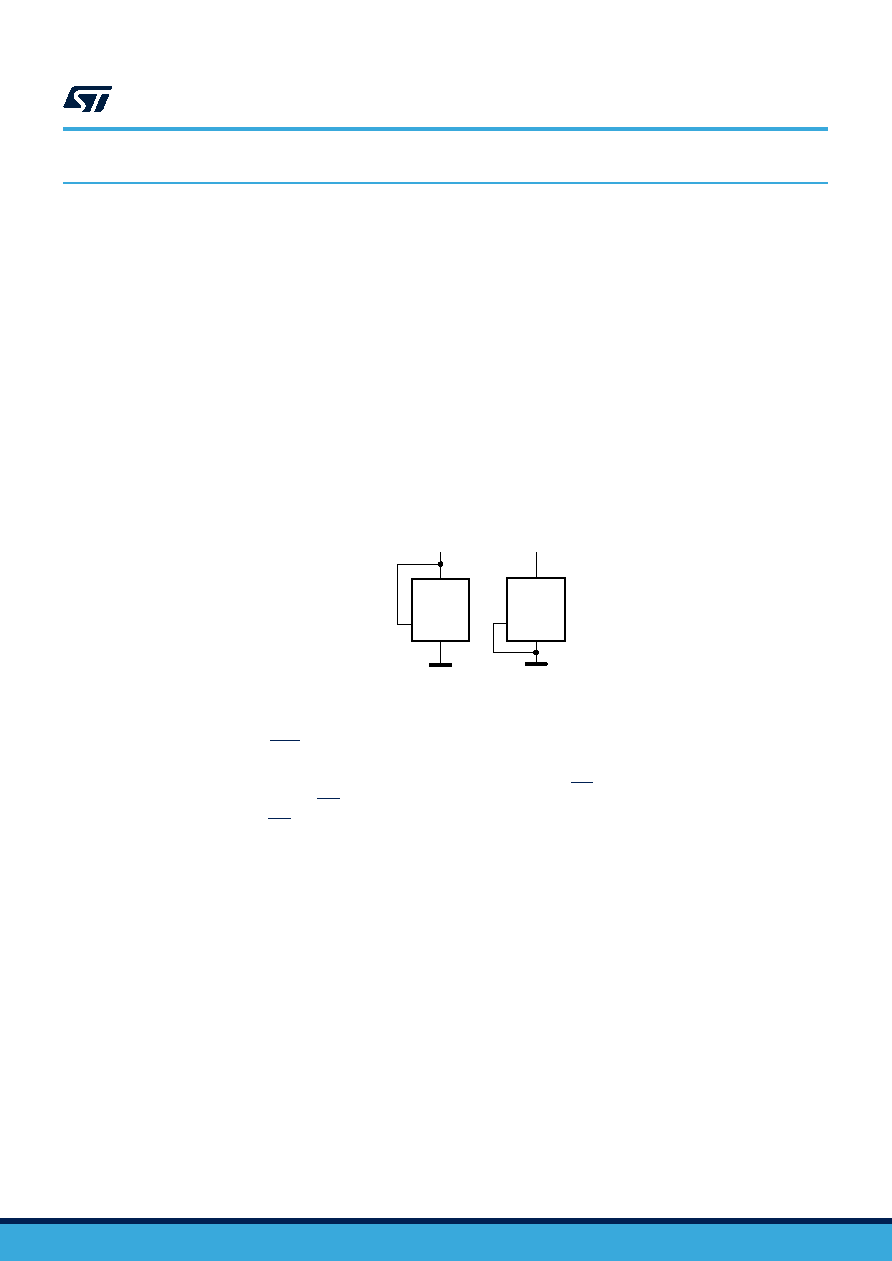

Figure 4. Chip enable inputs connection

VCC

M24xxx

VSS

Ei

VCC

M24xxx

VSS

Ei

2.4

Write control (WC)

This input signal is useful for protecting the entire contents of the memory from inadvertent write operations. Write

operations are disabled to the entire memory array when write control (WC) is driven high. Write operations are

enabled when write control (WC) is either driven low or left floating.

When write control (WC) is driven high, device select and address bytes are acknowledged, data bytes are not

acknowledged.

2.5

VSS (ground)

VSS is the reference for the VCC supply voltage.
