Data Sheet
ADL5507
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 15 of 34

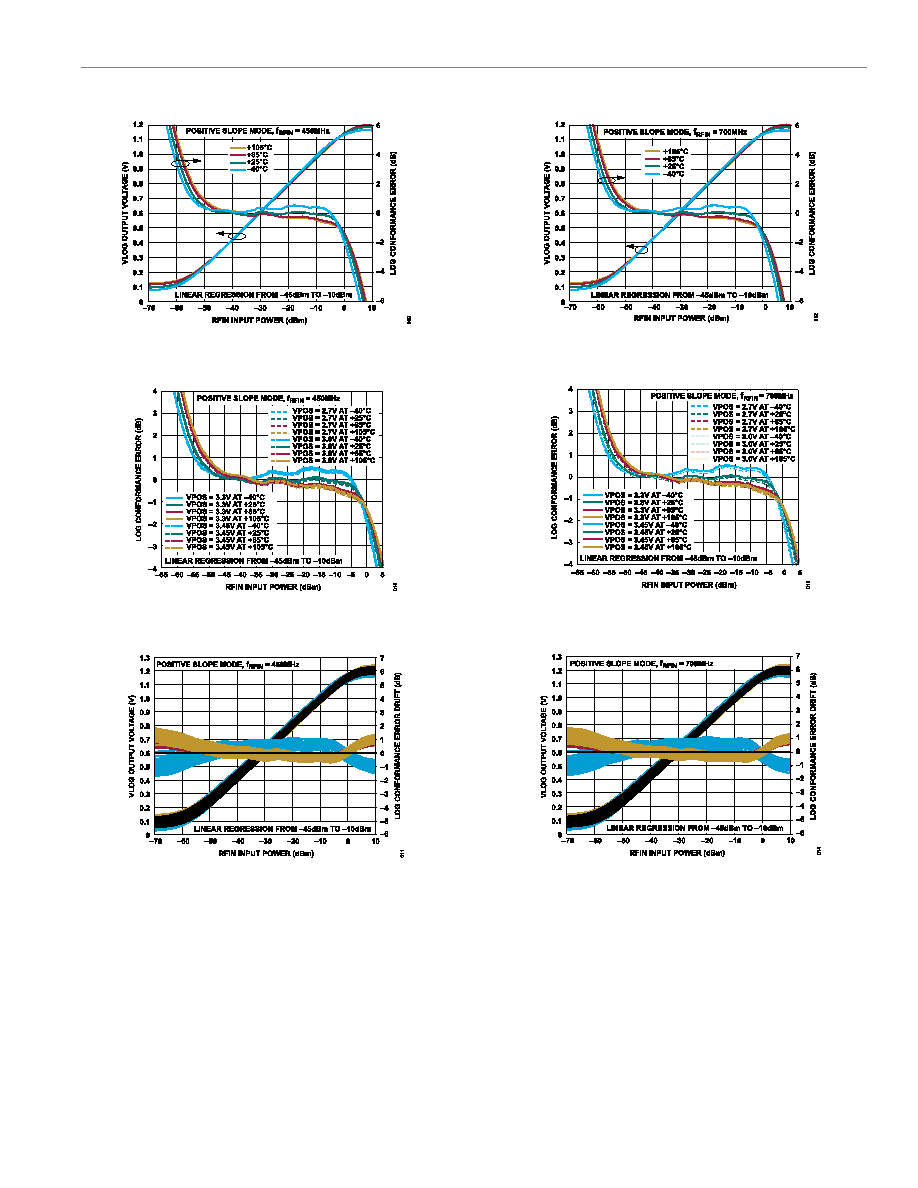

Figure 9. VVLOG and Log Conformance Error vs. PRFIN Over Temperature at
450 MHz, Positive Slope Mode
Figure 10. Log Conformance Error vs. PRFIN Over Temperature and VPOS at
450 MHz, Positive Slope Mode
Figure 11. Distribution of VVLOG and Log Conformance Error Drift with
Respect to 25°C vs. PRFIN at 450 MHz, Positive Slope Mode
Figure 12. VVLOG and Log Conformance Error vs. PRFIN Over Temperature at
700 MHz, Positive Slope Mode
Figure 13. Log Conformance Error vs. PRFIN Over Temperature and VPOS at
700 MHz, Positive Slope Mode
Figure 14. Distribution of VVLOG and Log Conformance Error Drift with
Respect to 25°C vs. PRFIN at 700 MHz, Positive Slope Mode
