Data Sheet
ADL5507
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 16 of 34

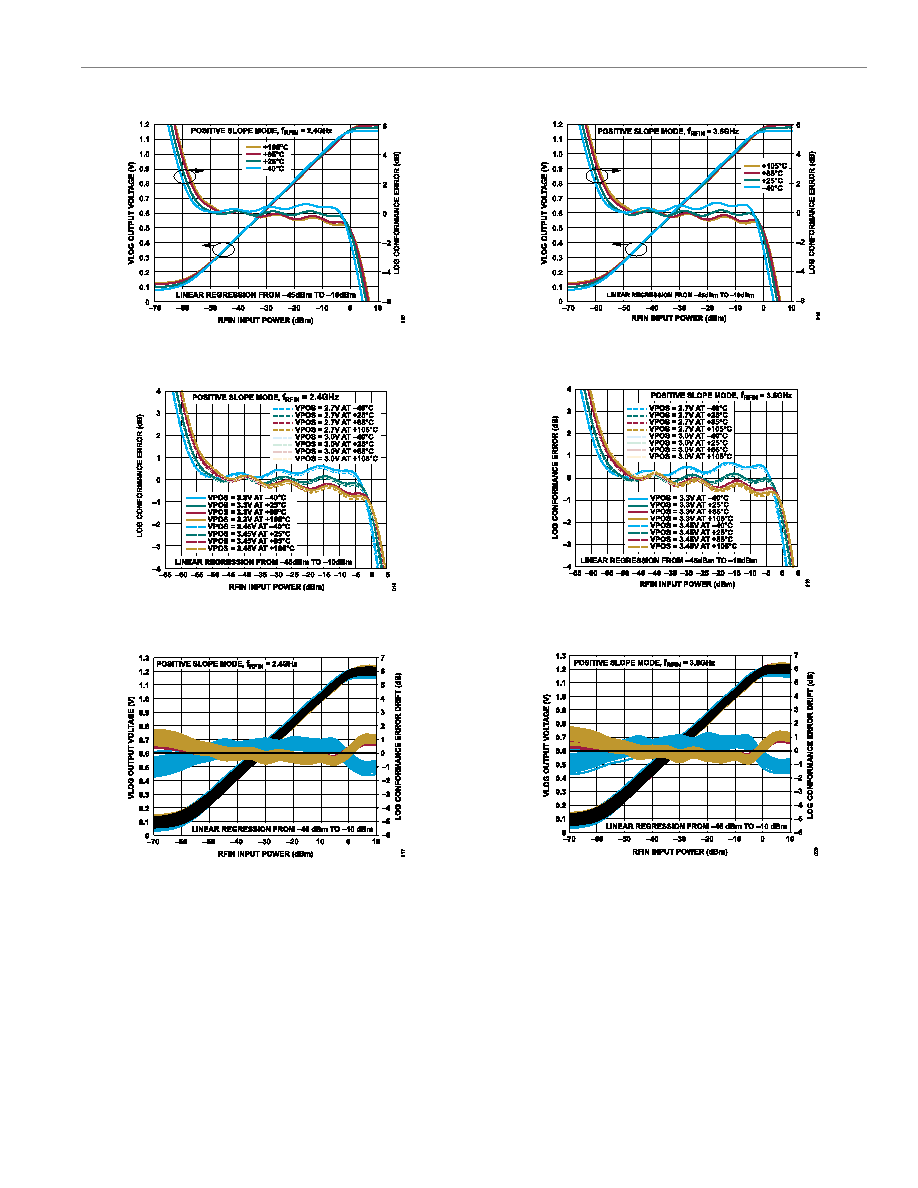

Figure 15. VVLOG and Log Conformance Error vs. PRFIN Over Temperature at
2.4 GHz, Positive Slope Mode
Figure 16. Log Conformance Error vs. PRFIN Over Temperature and VPOS at
2.4 GHz, Positive Slope Mode
Figure 17. Distribution of VVLOG and Log Conformance Error Drift with
Respect to 25°C vs. PRFIN at 2.4 GHz, Positive Slope Mode
Figure 18. VVLOG and Log Conformance Error vs. PRFIN Over Temperature at
3.6 GHz, Positive Slope Mode
Figure 19. Log Conformance Error vs. PRFIN Over Temperature and VPOS at
3.6 GHz, Positive Slope Mode
Figure 20. Distribution of VVLOG and Log Conformance Error Drift with
Respect to 25°C vs. PRFIN at 3.6 GHz, Positive Slope Mode
