Data Sheet
ADL5507
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 22 of 34

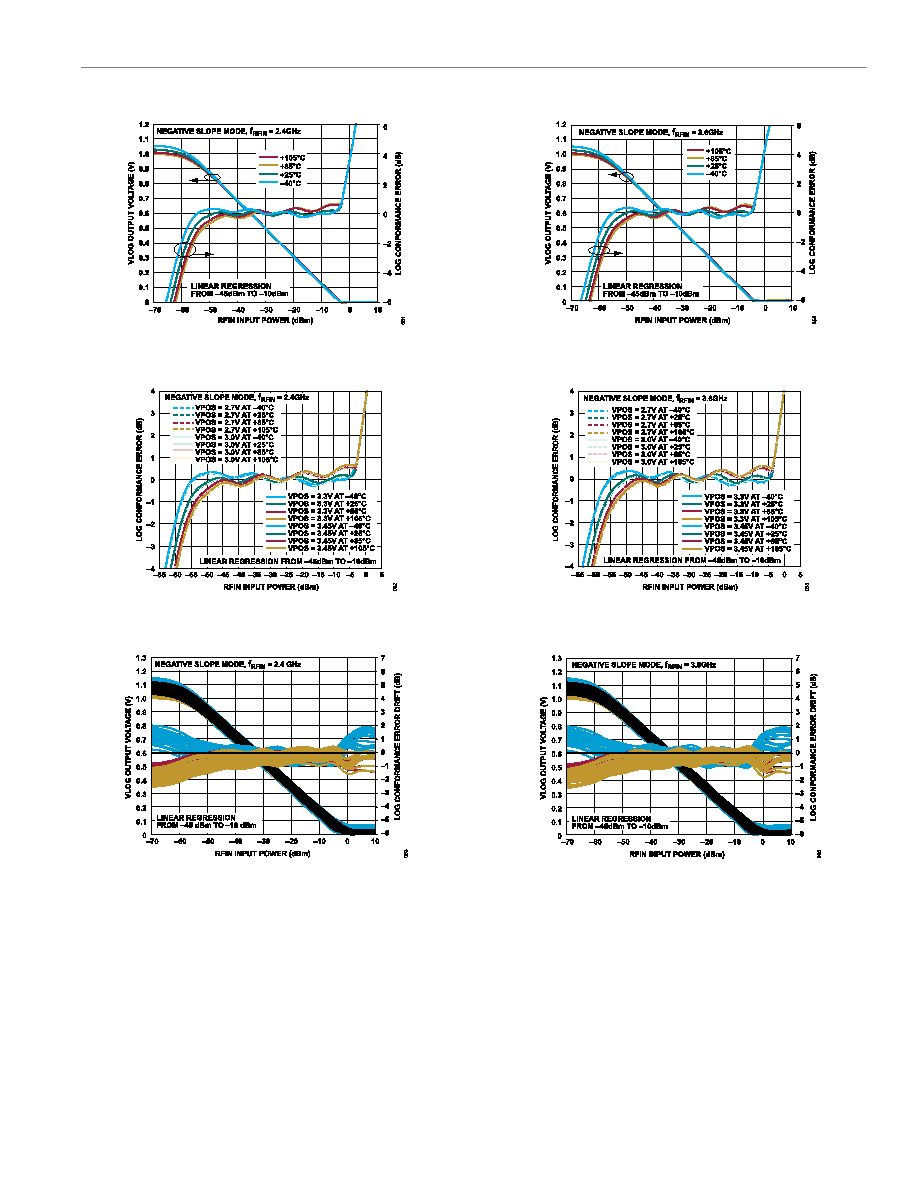

Figure 51. VVLOG and Log Conformance Error vs. PRFIN Over Temperature at
2.4 GHz, Negative Slope Mode
Figure 52. Log Conformance Error vs. PRFIN Over Temperature and VPOS at
2.4 GHz, Negative Slope Mode
Figure 53. Distribution of VVLOG and Log Conformance Error Drift with
Respect to 25°C vs. PRFIN at 2.4 GHz, Negative Slope Mode
Figure 54. VVLOG and Log Conformance Error vs. PRFIN Over Temperature at
3.6 GHz, Negative Slope Mode
Figure 55. Log Conformance Error vs. PRFIN Over Temperature and VPOS at
3.6 GHz, Negative Slope Mode
Figure 56. Distribution of VVLOG and Log Conformance Error Drift with
Respect to 25°C vs. PRFIN at 3.6 GHz, Negative Slope Mode
