Data Sheet
ADL5507
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 19 of 34

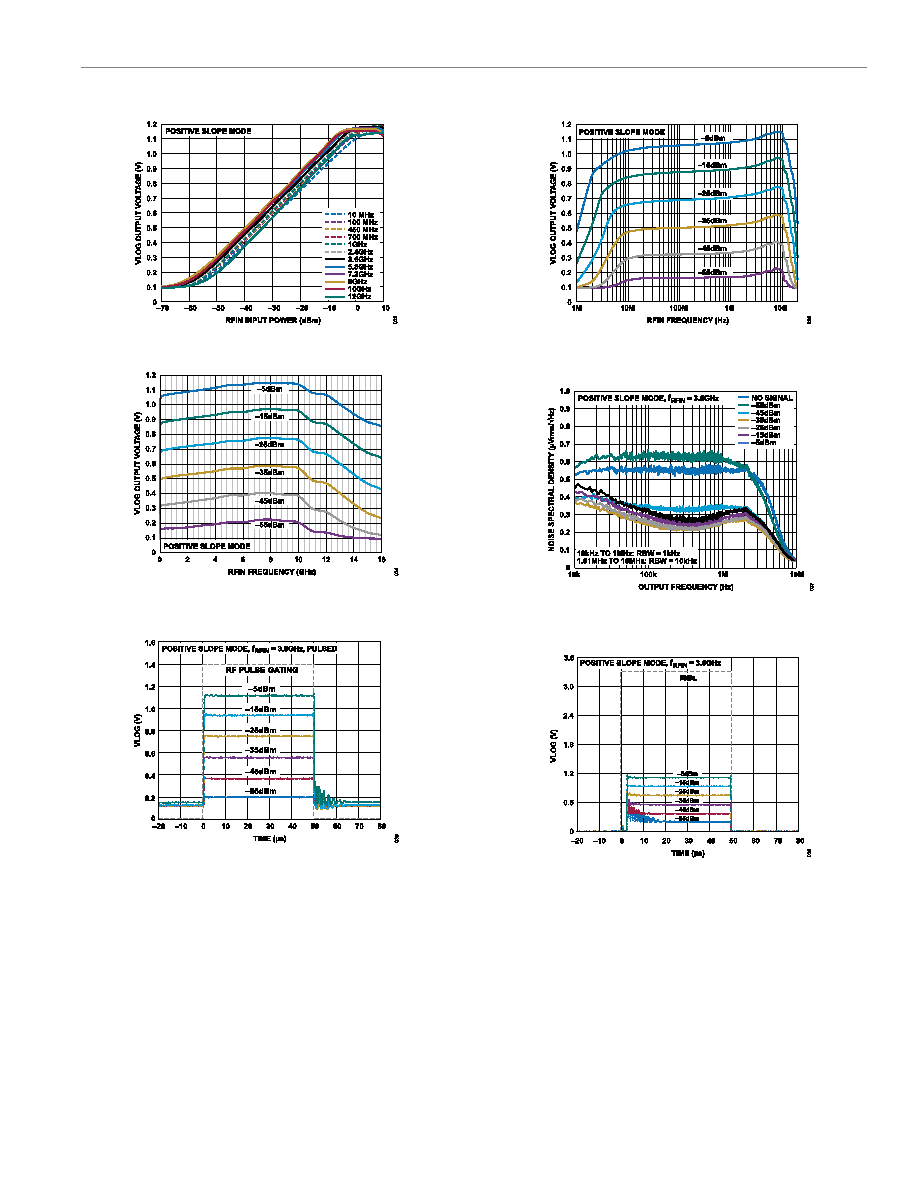

Figure 33. VVLOG vs. PRFIN Over Frequencies, Positive Slope Mode
Figure 34. VVLOG vs. fRFIN in Linear Scale Over Input Power, Positive Slope
Mode
Figure 35. Output Transient Response to RF Input Pulse for Various RF
powers at 3.6GHz
Figure 36. VVLOG vs. fRFIN in Log Scale Over Input Powers, Positive Slope
Mode
Figure 37. Output Noise Spectral Density for Various RF Powers at 3.6 GHz,
Positive Slope Mode
Figure 38. Output Transient Response with CW RF and Enable Pulse for
Various RF Powers at 3.6 GHz, Positive Slope Mode
