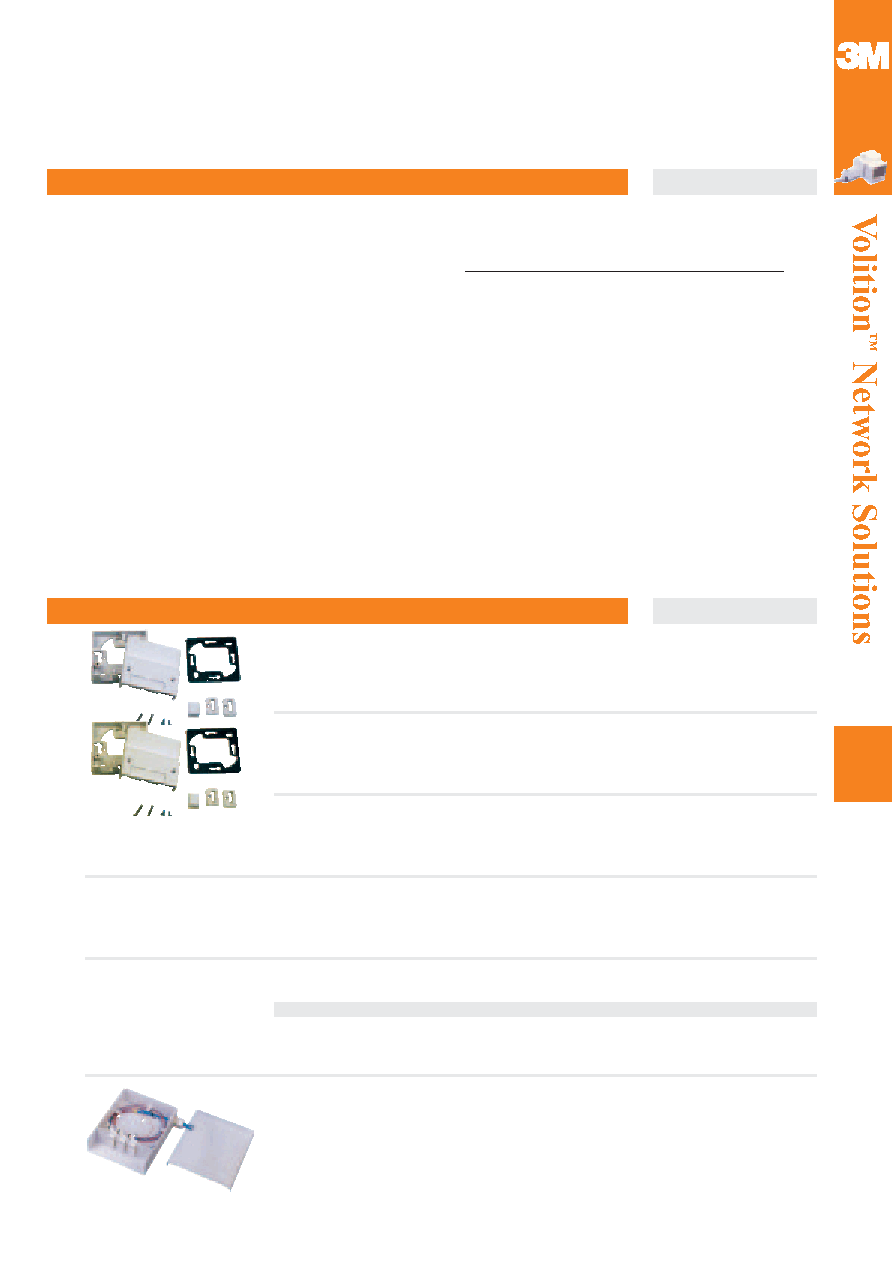

1.2

Fibre Cabling

1.2.2

Volition™ Outlets and Faceplates

Type/Order text

Ref.-No.

Wall Mount

Volition wall mount outlets can house up to two VF-45 sockets;

one VF-45 and one RJ45 or two RJ45 sockets, providing they

employ keystone latching and that they are a compatible size.

Flush Mount

The VOL-0257 flush mount outlet comprises a 45 x 90mm clip-in

module that is used in conjunction with a separately supplied

mounting and faceplates. Typically used in trunking or pillar appli-

cations, it can house up to two VF-45 sockets.

Furniture

Volition modular furniture outlets will house a maximum of two

VF-45 sockets. To save space, the VF-45 plug lays parallel to the

furniture partition. The outlets are available in a variety of colours.

Multiway

The 2552 VF multiway outlet was developed primarily for zone cab-

ling. Up to six VF-45 sockets can be installed. Very easy assembly

and clearly laid-out fibre management are combined in this robust

plastic box.

Outlets and faceplates for wall and trunking mounting

Type/Order text

Ref.-No.

Wall Outlet for 2 x VF-45 Socket

VOL-0255W

Plastic, white, similar to RAL 9010

Size (H x W x D): 80 x 80 x 28 mm

PU: 48 units, MOQ: 1

Wall Outlet for 2 x VF-45 Socket

VOL-0255C

Plastic, cream, similar to RAL 1013

Size (H x W x D): 80 x 80 x 28 mm

PU: 48 units, MOQ: 1

Wall Outlet for 2 x VF-45 Socket

VOL-0256W

Plastic, white, similar to RAL 9010

Size (H x W x D): 86 x 86 x 28 mm

PU: 48 units, MOQ: 1

Flush Mount Outlet for 2 x VF-45 Socket

VOL-0257W

Plastic, white, similar to RAL 9010

Size: 45 x 90 mm

PU: 48 units, MOQ: 1

Furniture Outlet for 2 x VF-45 Socket

Plastic White

VOL-0350W

Plastic Grey

VOL-0350G

Plastic Black

VOL-0350B

Size: 118 x 75 x 30 mm

PU: 48 units, MOQ: 1

Highlights:

•Wall mount outlets available in white or cream

• Guaranteed minimum bend radius of 25mm

•Integrated strain relief for horizontal cables

• Hybrid applications possible

• Compact design of wall mount outlet results in only a

28mm protrusion from the wall

Further Information on 2552SA see page 112.
