1.2

Fibre Cabling

1.2.3

Volition™ 19" Patch Panels

Volition™ Wall Mount Patch Panels

Description

Volition™ 19" Patch Panel / Volition™ Wall Mount Patch Panels

The Volition patch panel range offers a suitable patch panel for

every installation requirement. The 'flush mount' technology of the

VF-45™ sockets provides a smart and maximum port density solu-

tion resulting in efficient use of the space available in the 19" rack.

Wall mount patch panels are manufactured in powder coated sheet

metal and can be easily fixed using four screws to the wall. A hin-

ged front cover provides access to the VF-45 sockets and can be

locked using a padlock (not supplied) for extra security.

The wall patch panels are available in 3 sizes, for 6,12 and 24

ports and are made to facilitate the fast mounting of VF-45

sockets.

Highlights:

•Versions ranging from 1U, 24 ports to 3U, 72 ports

• Colour: - cream, similar to RAL 1013

•Internal features to ensure secure fixing of incoming

cables and correct storage of excess fibre

•Sliding drawer feature for easy access

Highlights:

•Simple installation of the VF-45 sockets

• Easy cable management

• Powder coated, cream similar to RAL:1013

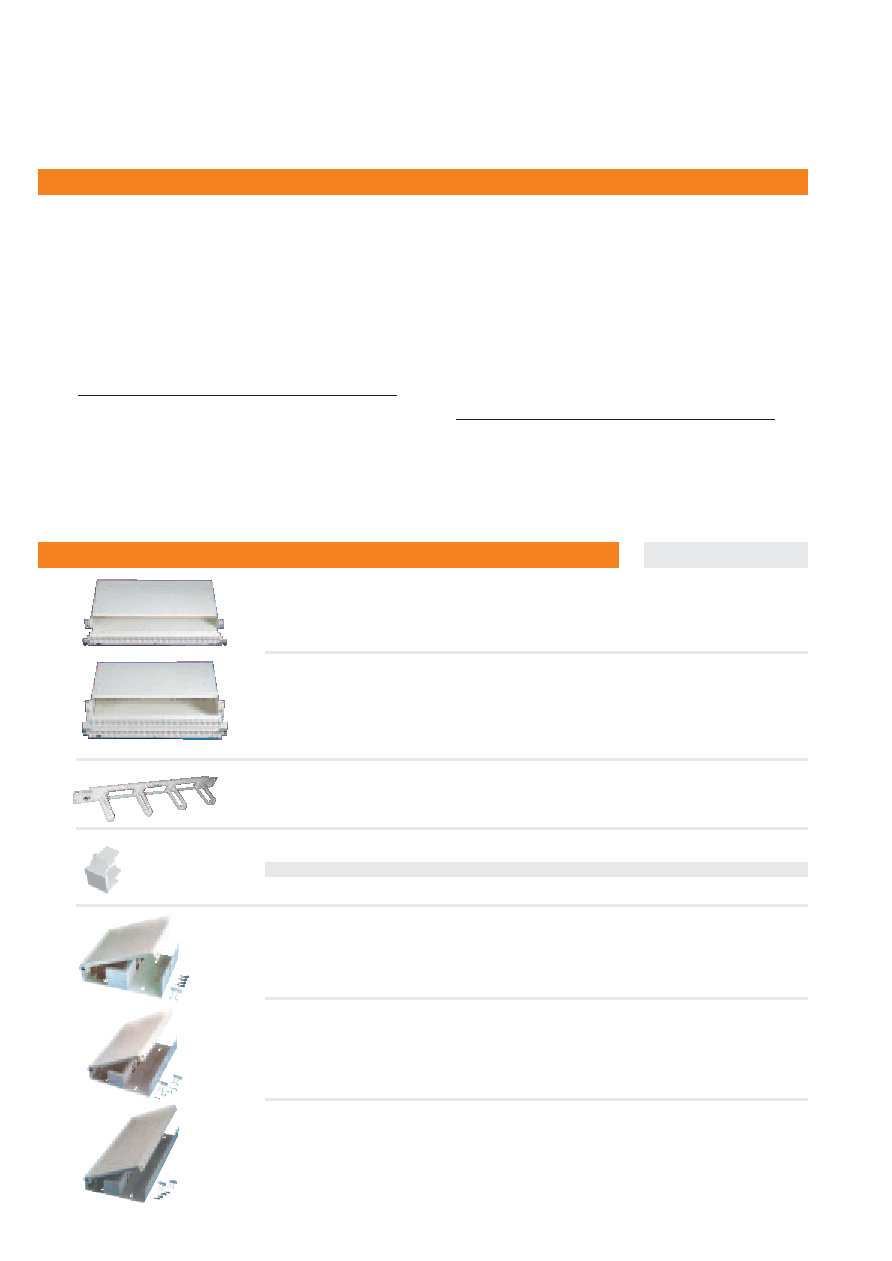

Type/Order Text

Ref.-No.

Patch Panel, 24 Ports, 1U

VOL-430-ES

sliding drawer version, PU: 1, MOQ:1

Patch Panel, 48 Ports, 2U

VOL-432-ES

sliding drawer version, PU: 1, MOQ:1

Patchcord Management - Panel - 1

VOL-499-E

PU: 1, MOQ: 1

Blanking plug for VF-45 Ports, PU: 50, MOQ: 1

Bright White

VOL-0300B

Black

VOL-0300BK

Wall Patch Panel, 6 Ports, 12 Fibre

VOL-0406B

Size (WxHxD): 198,1 x 162,8 x 54 mm

PU: 1, MOQ: 1

Wall Patch Panel, 12 Ports, 24 Fibre

VOL-0412B

Size (WxHxD): 198,1 x 254,8 x 54 mm

PU: 1, MOQ: 1

Wall Patch Panel, 24 Ports, 48 Fibre

VOL-0424B

Size (WxHxD): 198,1 x 438,8 x 54 mm

PU: 1, MOQ: 1
