CS5341 데이터시트(PDF) 12 Page - Cirrus Logic

부품명 CS5341
상세설명  105 dB, 192 kHz, Multi-Bit Audio A/D Converter
PDF  22 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  CIRRUS [Cirrus Logic]
홈페이지  http://www.cirrus.com
Logo CIRRUS - Cirrus Logic

CS5341 데이터시트(HTML) 12 Page - Cirrus Logic

Back Button CS5341_06 Datasheet HTML 8Page - Cirrus Logic CS5341_06 Datasheet HTML 9Page - Cirrus Logic CS5341_06 Datasheet HTML 10Page - Cirrus Logic CS5341_06 Datasheet HTML 11Page - Cirrus Logic CS5341_06 Datasheet HTML 12Page - Cirrus Logic CS5341_06 Datasheet HTML 13Page - Cirrus Logic CS5341_06 Datasheet HTML 14Page - Cirrus Logic CS5341_06 Datasheet HTML 15Page - Cirrus Logic CS5341_06 Datasheet HTML 16Page - Cirrus Logic Next Button
Zoom Inzoom in Zoom Outzoom out
 12 / 22 page
background image
12
DS564F1
CS5341
SCLK output
t mslr
SDOUT
t sdo
LRCK output
MSB
MSB-1

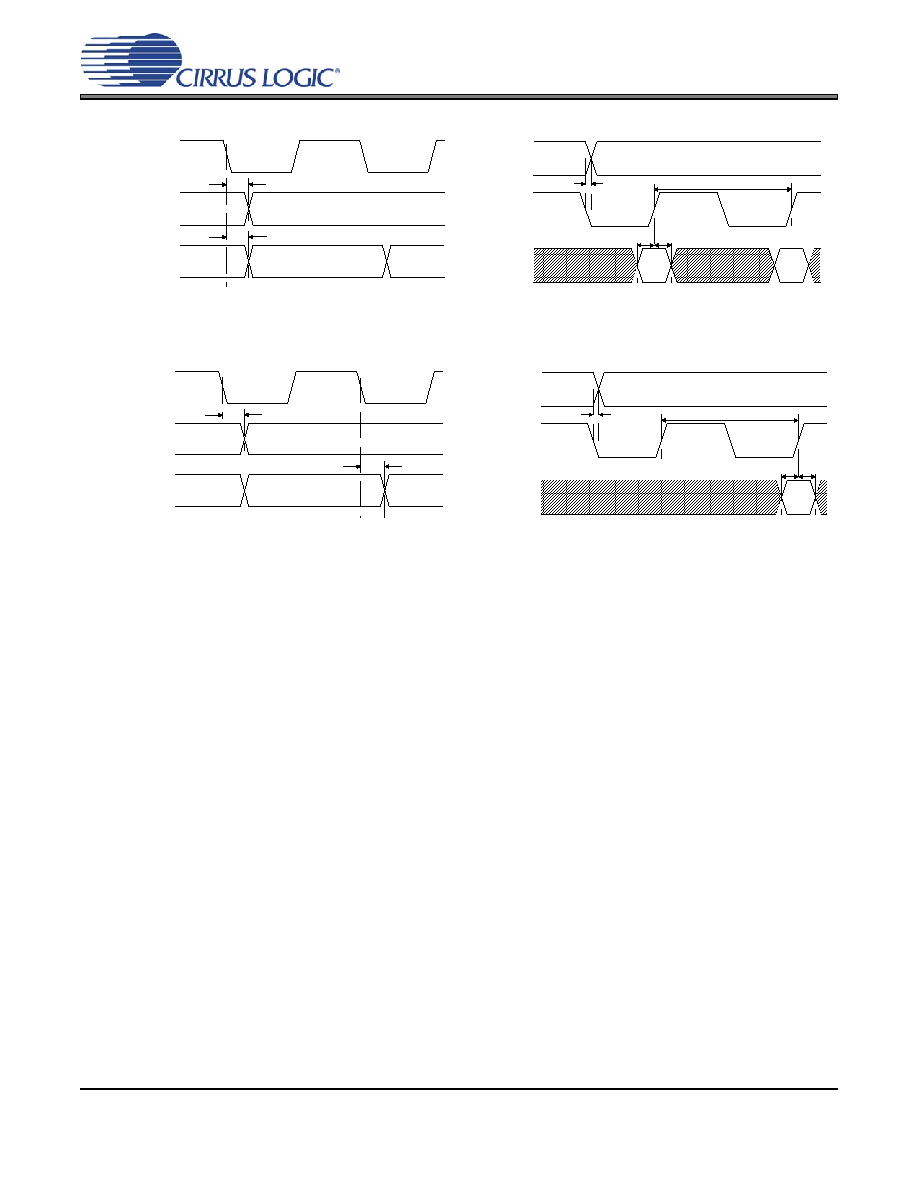

Figure 13. Master Mode, Left-Justified SAI
Figure 14. Slave Mode, Left-Justified SAI
LRCK input
SCLK input
SDOUT
MSB
tstp thld
t sclkw
MSB-1
t slrd
Figure 15. Master Mode, I²S SAI
Figure 16. Slave Mode, I²S SAI
SCLK output
t mslr
t sdo
LRCK output
MSB
SDOUT
LRCK input
SCLK input
SDOUT
tstp thld
tsclkw
MSB
t slrd
